TRIB1 / Tribbles homolog 1 · Western blot design guide
Design a Western Blot for TRIB1
Source-linked TRIB1 Western blot protocol options, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-TRIB1 WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Evidence assembled September 2026 · For research use; verify linked source records and product datasheet before use

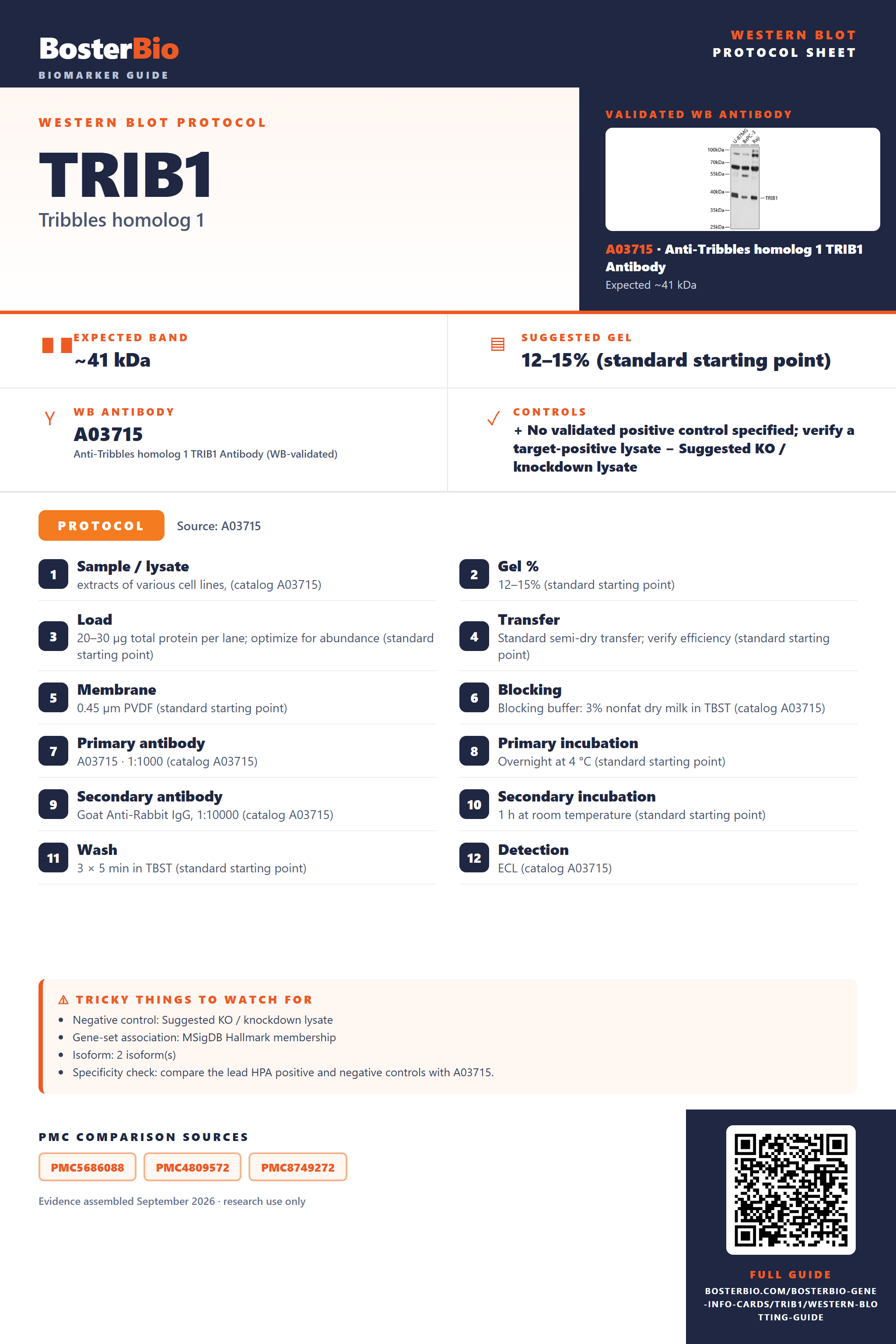

TRIB1 Western Blot Experimental Design Guide
Expected bands, source-linked protocol options, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~41 kDa | |
| Gel | 12–15% (standard starting point) | |
| Negative control | Suggested KO / knockdown lysate |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | — | |
| Caveat | — | |
| Gene-set association | MSigDB Hallmark membership | |
| Isoform | 2 isoform(s) |
Section 1
Source-Linked TRIB1 Western Blot Protocol Options
The A03715 protocol combines labelled catalog values with standard starting conditions. Published comparisons retain their own sample, reagent and detection scope.
| Sample / lysate | extracts of various cell lines, (catalog A03715) |
| Gel % | 12–15% (standard starting point) |
| Load | 20–30 µg total protein per lane; optimize for abundance (standard starting point) |
| Transfer | Standard semi-dry transfer; verify efficiency (standard starting point) |
| Membrane | 0.45 µm PVDF (standard starting point) |
| Blocking | Blocking buffer: 3% nonfat dry milk in TBST (catalog A03715) |
| Primary antibody | A03715 · 1:1000 (catalog A03715) |
| Primary incubation | Overnight at 4 °C (standard starting point) |
| Secondary antibody | Goat Anti-Rabbit IgG, 1:10000 (catalog A03715) |
| Secondary incubation | 1 h at room temperature (standard starting point) |
| Wash | 3 × 5 min in TBST (standard starting point) |
| Detection | ECL (catalog A03715) |
Section 2
What Is the Expected TRIB1 Western Blot Band Size?
TRIB1 is predicted at 41 kDa; annotated isoforms could affect band patterns, but distinct migration has not been demonstrated.
| Single band near 41 kDa | Consistent with the predicted mass of TRIB1 |
| Several discrete bands | Isoforms 1 and 2 are annotated, but their migration is unknown |
| No distinct isoform doublet | The annotated isoforms need not form resolvable bands |
| Band far from 41 kDa | Its identity is not established by the supplied features |
💡Expected TRIB1 appearanceTRIB1 has a predicted mass of 41 kDa and two annotated isoforms, but no empirical band size or isoform migration data; confirm any candidate band with ordinary identity controls.
| UniProt predicted mass | Places the reference protein near 41 kDa |
| 41,009 Da sequence mass | Rounds to approximately 41 kDa |
| Splice isoform 1 | Its separate apparent size is not supplied |
| Splice isoform 2 | Its size relative to isoform 1 is not supplied |
| Situation | Likely cause | Next action |
|---|---|---|
| Band higher than expected | The supplied features do not explain a higher band | Check specificity with TRIB1 knockdown or knockout lysate |
| Band lower than expected | Its identity or integrity is uncertain | Compare with a TRIB1 depletion control and check sample handling |
| Multiple bands | Isoforms 1 and 2 are annotated, but distinct migration is unproven | Test band identity with TRIB1 depletion and an independent antibody |
| Weak or no signal | TRIB1 abundance or assay sensitivity may be insufficient | Check loading and detection, then compare with a positive control lysate |
| Fragments below expected size | Sample proteolysis is possible but not established by UniProt | Prepare fresh lysate with protease inhibitors and verify bands with a TRIB1 depletion control |
Experiment evidence
Western blot images showing TRIB1 band
A03715 · TRIB1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for TRIB1 Western blot
🧪For positive controls for TRIB1 in Western blot, you can use an HPA-IHC candidate positive sample once one is identified; none is provided in the supplied evidence.
Positive control: No high/medium HPA tissue identified
Negative control: Suggested KO / knockdown lysate
Loading controls: Run GAPDH, β-actin, and a total-protein stain alongside the samples.
⚠️Feasibility: HPA data are unavailable, so tissue-based controls cannot be selected from the supplied evidence.
HPA tissue expression evidence for TRIB1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Higher expression tissues · candidate positive controls from IHC
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| No high/medium HPA tissues identified in the supplied evidence. | ||||
Lower expression tissues · IHC evidence, not confirmed WB-negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| No lower-expression tissue rows available in the supplied evidence. | ||||
Section 3
Advanced TRIB1 Western Blot Tips
Deeper troubleshooting and optimisation questions for TRIB1, answered from its protein features.
How should TRIB1 band migration be interpreted?
Band shift · Use the separately labelled calculated mass and catalog-observed evidence above. A sequence annotation does not establish an observed migration shift. Verify target identity with orthogonal controls.
Could TRIB1 isoforms produce different bands?
Isoforms · Yes. UniProt lists two isoforms. Isoform 2 lacks residues 1–166 of the canonical sequence, so it has a shorter sequence. Check whether the antibody recognizes a region retained in isoform 2 before interpreting a second band.
Decide whether the measurement targets canonical TRIB1 or both listed isoforms. Isoform 2 lacks canonical residues 1–166, so antibody recognition depends on its binding region. Quantify bands separately if both are detected, and state which bands were included.
Decide whether the measurement targets canonical TRIB1 or both listed isoforms. Isoform 2 lacks canonical residues 1–166, so antibody recognition depends on its binding region. Quantify bands separately if both are detected, and state which bands were included.
Can annotated modifications explain a TRIB1 band shift?
PTM · No modified residues or glycosylation sites are listed. The supplied features therefore do not support assigning a shifted band to a specific modification. They also do not establish why an observed band might differ from the predicted 41 kDa.
Does this guide establish induction of TRIB1?
Induction · No general induction response is established by this guide. A pathway or gene-set association is not evidence of induction in a particular specimen. Verify the relevant treatment and control in a target-specific experiment.
What transfer method to use for TRIB1 Western blot?
Transfer · The supplied features identify a 41 kDa canonical protein but do not specify a transfer method. Choose and verify transfer conditions for a protein near 41 kDa; if assessing isoform 2, also check recovery of the shorter product.
How should blocking be optimized?
Blocking · Standard workflow guidance: follow the A03715 datasheet where specified. Otherwise compare 5% milk or 5% BSA in TBST; for a phospho-specific assay start with BSA. Optimize background and specific signal with matched controls.
How should TRIB1 be quantified?
Quantitation · Standard workflow guidance: quantify only a validated target band within the linear exposure range. Use consistent sample preparation and loading, retain biological replicates, and avoid interpreting saturation or loading differences as regulation.
What size should the canonical TRIB1 band be?
Interpretation · The predicted mass is 41 kDa for the 372-residue canonical protein. No empirical apparent band size is supplied, so use 41 kDa as a reference, not a guaranteed migration position.
Isoform 2 is a possible explanation because it lacks canonical residues 1–166. Confirm that the antibody recognizes a retained region and that the band corresponds to TRIB1 before assigning it to this isoform.
Isoform 2 is a possible explanation because it lacks canonical residues 1–166. Confirm that the antibody recognizes a retained region and that the band corresponds to TRIB1 before assigning it to this isoform.
Boster reagents
TRIB1 Western Blot Antibodies
Catalog antibodies with Western blot application and product-specific WB images. Evaluate suitability with the reported sample, controls and experimental conditions.
Real WB data
Anti-Tribbles homolog 1 TRIB1 Antibody
Cat # A03715
The catalog reports A03715 for TRIB1 Western blotting, with reported human reactivity and a WB image. The caption describes cell-line extracts tested at 25 µg per lane and a 1:1000 primary dilution; it does not name the cell lines.
Which to pick: A03715 is the only listed option. It has a WB image and reported human reactivity; use the caption’s 1:1000 antibody dilution as a starting point, then optimize for your sample.
Source: BosterBio TRIB1 gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
References
- UniProt Consortium. UniProt entry Q96RU8.
- Human Protein Atlas. TRIB1 tissue expression.
- PMC5686088 — target-verified WB comparison
- PMC4809572 — target-verified WB comparison
- PMC8749272 — target-verified WB comparison
