|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates, serum and plasma(heparin, EDTA, citrate).|
Data & Images
|Product Name||Mouse Fibronectin PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Mouse Fibronectin. 96wells/kit, with removable strips.|
|Cite This Product||Mouse Fibronectin PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0351)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Immunogen||Expression system for standard: from plasma|
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates, serum and plasma(heparin, EDTA, citrate).
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from rat|
|Detection Antibody||polyclonal antibody from goat|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK0351-CAP||96-well plate precoated with anti-Mouse Itgb1 antibody||1|
|EK0351-ST||lyophilized recombinant Mouse Itgb1 standard||10ng/tubex2|
|EK0351-DA||biotinylated anti-Mouse Itgb1 antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- Microplate reader in standard size.
- Automated plate washer.
- Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- Clean tubes and Eppendorf tubes.
- Washing buffer (neutral PBS or TBS).
- Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g NaCl; 450μl of purified acetic acid or 700μl of concentrated hydrochloric acid to 1000ml H2
- Preparation of 0.01 M PBS: Add 8.5g sodium chloride, 1.4g Na O and adjust pH to 7.2-7.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Molecular Weight||88231 MW|
|Protein Function||Integrins alpha-1/beta-1, alpha-2/beta-1, alpha-10/beta- 1 and alpha-11/beta-1 are receptors for collagen. Integrins alpha- 1/beta-1 and alpha-2/beta-2 recognize the proline-hydroxylated sequence G-F-P-G-E-R in collagen. Integrins alpha-2/beta-1, alpha- 3/beta-1, alpha-4/beta-1, alpha-5/beta-1, alpha-8/beta-1, alpha- 10/beta-1, alpha-11/beta-1 and alpha-V/beta-1 are receptors for fibronectin. Alpha-4/beta-1 recognizes one or more domains within the alternatively spliced CS-1 and CS-5 regions of fibronectin. Integrin alpha-5/beta-1 is a receptor for fibrinogen. Integrin alpha-1/beta-1, alpha-2/beta-1, alpha-6/beta-1 and alpha-7/beta-1 are receptors for lamimin. Integrin alpha-4/beta-1 is a receptor for VCAM1 and recognizes the sequence Q-I-D-S in VCAM1. Integrin alpha-9/beta-1 is a receptor for VCAM1, cytotactin and osteopontin. It recognizes the sequence A-E-I-D-G-I-E-L in cytotactin. Integrin alpha-3/beta-1 is a receptor for epiligrin, thrombospondin and CSPG4. Integrin alpha-3/beta-1 provides a docking site for FAP (seprase) at invadopodia plasma membranes in a collagen-dependent manner and hence may participate in the adhesion, formation of invadopodia and matrix degradation processes, promoting cell invasion. Alpha-3/beta-1 may mediate with LGALS3 the stimulation by CSPG4 of endothelial cells migration. Integrin alpha-V/beta-1 is a receptor for vitronectin. Beta-1 integrins recognize the sequence R-G-D in a wide array of ligands. When associated with alpha-7/beta-1 integrin, regulates cell adhesion and laminin matrix deposition. Involved in promoting endothelial cell motility and angiogenesis. Involved in osteoblast compaction through the fibronectin fibrillogenesis cell-mediated matrix assembly process and the formation of mineralized bone nodules. May be involved in up-regulation of the activity of kinases such as PKC via binding to KRT1. Together with KRT1 and GNB2L1, serves as a platform for SRC activation or inactivation. Plays a mechanistic adhesive role during telophase, required for the successful completion of cytokinesis. .|
|Tissue Specificity||Isoform 2 is expressed in skeletal and cardiac muscles only (at protein level). Isoform 1 is very weakly expressed in striated muscles and not detected in adult skeletal muscle fibers and cardiomyocytes. .|
|Sequence Similarities||Belongs to the integrin beta chain family.|
|Subcellular Localization||Cell membrane ; Single-pass type I membrane protein . Cell projection, invadopodium membrane ; Single-pass type I membrane protein . Cell projection, ruffle membrane ; Single-pass type I membrane protein . Recycling endosome . Melanosome . Cell projection, lamellipodium . Cell projection, ruffle . Colocalizes with ITGB1BP1 and metastatic suppressor protein NME2 at the edge or peripheral ruffles and lamellipodia during the early stages of cell spreading on fibronectin or collagen. Translocates from peripheral focal adhesions to fibrillar adhesions in an ITGB1BP1-dependent manner. Enriched preferentially at invadopodia, cell membrane protrusions that correspond to sites of cell invasion, in a collagen-dependent manner. Localized at plasma and ruffle membranes in a collagen-independent manner. .|
|Alternative Names||Integrin beta-1;Fibronectin receptor subunit beta;VLA-4 subunit beta;CD29;Itgb1;|
Background for Fibronectin
Mouse Fibronectin PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|
To assay reproducibility, three samples with differing target protein concentrations were assayed using four different lots.
|Lots||Lot1 (pg/ml)||Lot2 (pg/ml)||Lot3 (pg/ml)||Lot4 (pg/ml)||Mean (pg/ml)||Standard Deviation||CV (%)|

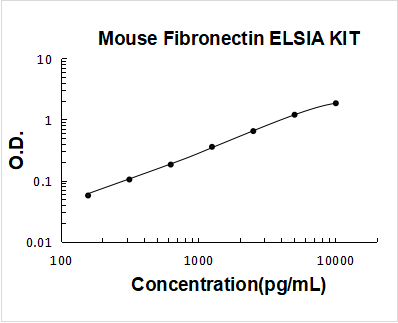

Typical Data Obtained from Mouse Fibronectin PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 15-20min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
