|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates, serum and plasma(heparin, EDTA).|
Data & Images
|Product Name||Mouse TIE2 PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Mouse TEK/TIE2. 96wells/kit, with removable strips.|
|Cite This Product||Mouse TIE2 PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0976)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Immunogen||Expression system for standard: NSO; Immunogen sequence: A23-K744|
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates, serum and plasma(heparin, EDTA).
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from rat|
|Detection Antibody||polyclonal antibody from goat|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK0976-CAP||96-well plate precoated with anti-Mouse Tek antibody||1|
|EK0976-ST||lyophilized recombinant Mouse Tek standard||10ng/tubex2|
|EK0976-DA||biotinylated anti-Mouse Tek antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- Microplate reader in standard size.
- Automated plate washer.
- Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- Clean tubes and Eppendorf tubes.
- Washing buffer (neutral PBS or TBS).
- Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g NaCl; 450μl of purified acetic acid or 700μl of concentrated hydrochloric acid to 1000ml H2
- Preparation of 0.01 M PBS: Add 8.5g sodium chloride, 1.4g Na O and adjust pH to 7.2-7.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Protein Name||Angiopoietin-1 receptor|
|Molecular Weight||125701 MW|
|Protein Function||Tyrosine-protein kinase that acts as cell-surface receptor for ANGPT1, ANGPT2 and ANGPT4 and regulates angiogenesis, endothelial cell survival, proliferation, migration, adhesion and cell spreading, reorganization of the actin cytoskeleton, but also maintenance of vascular quiescence. Has anti-inflammatory effects by preventing the leakage of proinflammatory plasma proteins and leukocytes from blood vessels. Required for normal angiogenesis and heart development during embryogenesis. Required for post- natal hematopoiesis. After birth, activates or inhibits angiogenesis, depending on the context. Inhibits angiogenesis and promotes vascular stability in quiescent vessels, where endothelial cells have tight contacts. In quiescent vessels, ANGPT1 oligomers recruit TEK to cell-cell contacts, forming complexes with TEK molecules from adjoining cells, and this leads to preferential activation of phosphatidylinositol 3-kinase and the AKT1 signaling cascades. In migrating endothelial cells that lack cell-cell adhesions, ANGT1 recruits TEK to contacts with the extracellular matrix, leading to the formation of focal adhesion complexes, activation of PTK2/FAK and of the downstream kinases MAPK1/ERK2 and MAPK3/ERK1, and ultimately to the stimulation of sprouting angiogenesis. ANGPT1 signaling triggers receptor dimerization and autophosphorylation at specific tyrosine residues that then serve as binding sites for scaffold proteins and effectors. Signaling is modulated by ANGPT2 that has lower affinity for TEK, can promote TEK autophosphorylation in the absence of ANGPT1, but inhibits ANGPT1-mediated signaling by competing for the same binding site. Signaling is also modulated by formation of heterodimers with TIE1, and by proteolytic processing that gives rise to a soluble TEK extracellular domain. The soluble extracellular domain modulates signaling by functioning as decoy receptor for angiopoietins. TEK phosphorylates DOK2, GRB7, GRB14, PIK3R1, SHC1 and TIE1. .|
|Tissue Specificity||Specifically expressed in developing vascular endothelial cells. Abundantly expressed in lung and heart, moderately in brain, liver and kidney, and weakly in thymus, spleen and testis. .|
|Sequence Similarities||Belongs to the protein kinase superfamily. Tyr protein kinase family. Tie subfamily.|
|Subcellular Localization||Cell membrane; Single-pass type I membrane protein. Cell junction . Cell junction, focal adhesion . Cytoplasm, cytoskeleton . Secreted . Recruited to cell-cell contacts in quiescent endothelial cells. Colocalizes with the actin cytoskeleton and at actin stress fibers during cell spreading. Recruited to the lower surface of migrating cells, especially the rear end of the cell. Proteolytic processing gives rise to a soluble extracellular domain that is secreted (By similarity). .|
|Alternative Names||Angiopoietin-1 receptor;22.214.171.124;Endothelial tyrosine kinase;HYK;STK1;Tunica interna endothelial cell kinase;Tyrosine kinase with Ig and EGF homology domains-2;Tyrosine-protein kinase receptor TEK;Tyrosine-protein kinase receptor TIE-2;mTIE2;p140 TEK;CD202b;Tek;Hyk, Tie-2, Tie2;|
Background for Angiopoietin-1 receptor
Mouse TIE2 PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|
To assay reproducibility, three samples with differing target protein concentrations were assayed using four different lots.
|Lots||Lot1 (pg/ml)||Lot2 (pg/ml)||Lot3 (pg/ml)||Lot4 (pg/ml)||Mean (pg/ml)||Standard Deviation||CV (%)|

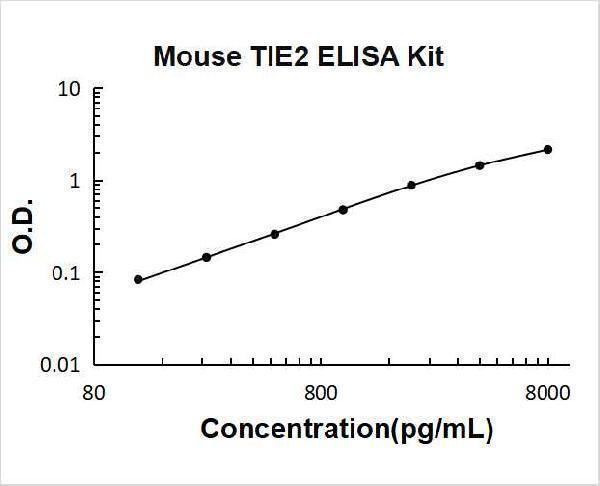

Typical Data Obtained from Mouse TIE2 PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 20-25min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
