ARRB1 / Beta-arrestin-1 · Western blot design guide
Design a Western Blot for ARRB1
Source-linked ARRB1 Western blot protocol options, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-ARRB1 WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Evidence assembled September 2026 · For research use; verify linked source records and product datasheet before use
ARRB1 Western Blot Experimental Design Guide
Expected bands, source-linked protocol options, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~47.1 kDa | |
| Observed band | ~50 kDa | |
| Gel | 5–20% (catalog M02185) | |
| Positive control | Cerebellum (IHC candidate; verify WB) +4 more | |
| Negative control | Adipose tissue (IHC candidate; verify WB) |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | Phosphorylated + Ubl conjugation | |
| Caveat | Modification-state controls | |
| Gene-set association | MSigDB Hallmark membership | |
| Isoform | 2 isoform(s) |
Section 1

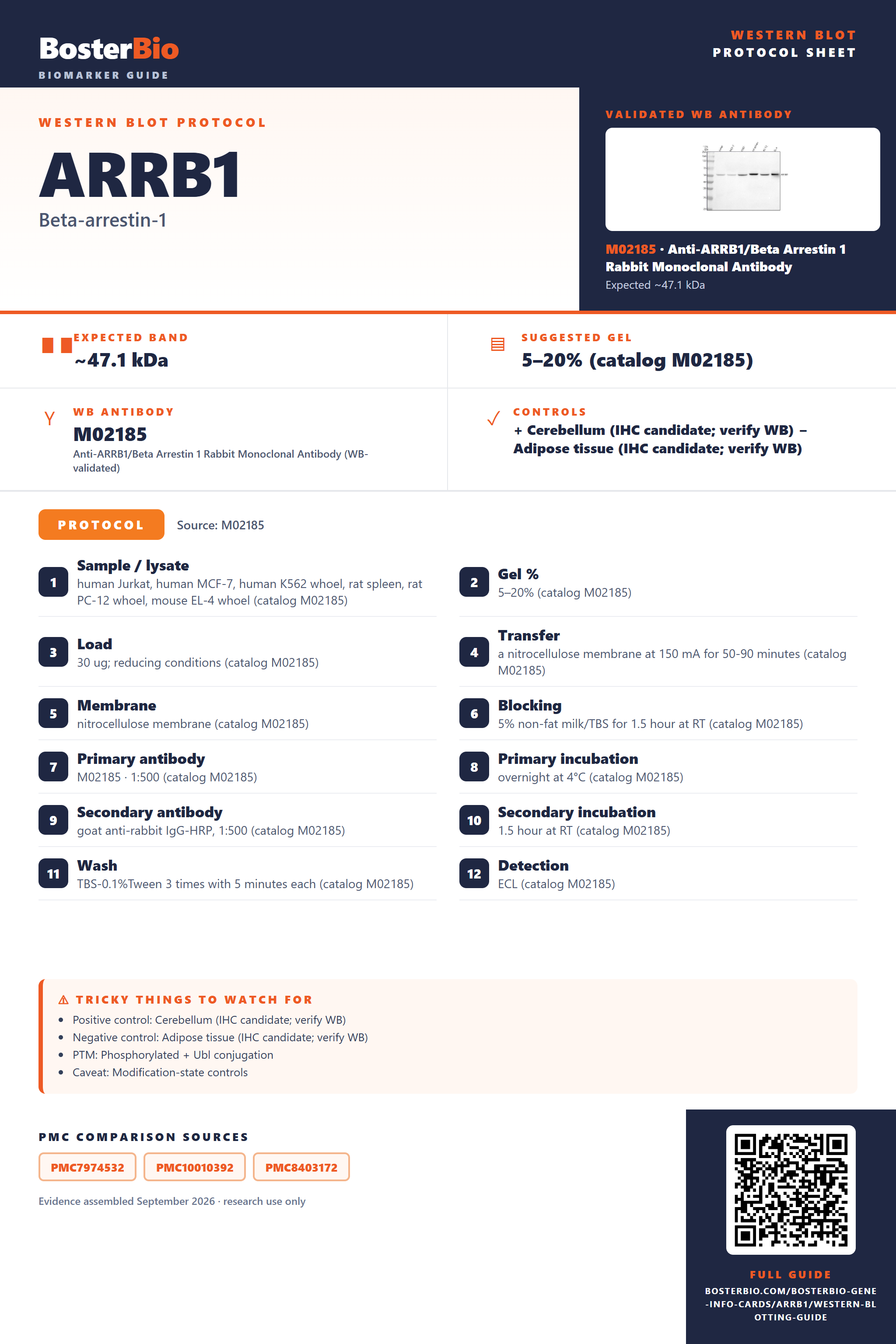

Source-Linked ARRB1 Western Blot Protocol Options
The M02185 protocol combines labelled catalog values with standard starting conditions. Published comparisons retain their own sample, reagent and detection scope.
| Sample / lysate | human Jurkat, human MCF-7, human K562 whoel, rat spleen, rat PC-12 whoel, mouse EL-4 whoel (catalog M02185) |
| Gel % | 5–20% (catalog M02185) |
| Load | 30 ug; reducing conditions (catalog M02185) |
| Transfer | a nitrocellulose membrane at 150 mA for 50-90 minutes (catalog M02185) |
| Membrane | nitrocellulose membrane (catalog M02185) |
| Blocking | 5% non-fat milk/TBS for 1.5 hour at RT (catalog M02185) |
| Primary antibody | M02185 · 1:500 (catalog M02185) |
| Primary incubation | overnight at 4°C (catalog M02185) |
| Secondary antibody | goat anti-rabbit IgG-HRP, 1:500 (catalog M02185) |
| Secondary incubation | 1.5 hour at RT (catalog M02185) |
| Wash | TBS-0.1%Tween 3 times with 5 minutes each (catalog M02185) |
| Detection | ECL (catalog M02185) |
Section 2
What Is the Expected ARRB1 Western Blot Band Size?
ARRB1 is predicted at 47.1 kDa and observed near 50 kDa; the cause of that difference is not established by the supplied features.
| Band near 50 kDa | Empirical ARRB1 band; UniProt predicts 47.1 kDa. |
| Additional nearby band | Isoforms 1A and 1B are possible candidates, but distinct migration is unestablished. |
| Band near twice the monomer size | Could reflect retained ARRB1 self-association; confirm its identity. |
| Stronger band in a membrane fraction | Consistent with ARRB1 translocation to the plasma membrane. |
💡Expected ARRB1 appearanceUniProt predicts 47.1 kDa, while reducing whole-cell blots show ~50 kDa; the cause of the difference is unestablished, so confirm band identity with appropriate controls.
| Predicted ARRB1 mass | 47.1 kDa is the sequence-based estimate; the empirical band is ~50 kDa. |
| InsP6-mediated homodimer formation | Could produce a band near twice the monomer size if self-association survives electrophoresis. |
| Isoform 1A | Its size relative to 1B and its migration are unspecified. |
| Isoform 1B | Its size relative to 1A and its migration are unspecified. |
| Situation | Likely cause | Next action |
|---|---|---|
| No band in lysate | ARRB1 abundance or recovery in the sampled lysate may be low. | Check lysate quality and a positive-control lysate. |
| Band higher than expected | Retained ARRB1 self-association is possible; the ~50 kDa empirical band already exceeds the 47.1 kDa prediction for an unestablished reason. | Compare denaturing conditions and confirm identity with depletion or an independent antibody. |
| Band lower than expected | Isoforms 1A and 1B exist, but their relative sizes are unspecified. | Confirm identity with depletion or an independent antibody before assigning an isoform. |
| Multiple bands | Isoforms or retained self-association are possible, but distinct bands are unestablished. | Check band identity with depletion and compare denaturing conditions. |
| Weak or no signal | ARRB1 occurs in several cellular compartments, so recovery can vary by fraction. | Check cytoplasmic, nuclear and membrane fractions with appropriate controls. |
| Broad smear instead of sharp band | No supplied feature establishes a smear. | Check sample quality and loading, then confirm ARRB1 with an independent antibody. |
Experiment evidence
Western blot images showing ARRB1 band
M02185 · ARRB1
PA2155 · ARRB1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for ARRB1 Western blot
🧪HPA-IHC candidate guidance (verify in WB): For positive controls for ARRB1 in Western blot, you can use cerebellum lysate, where HPA reports high expression.
Positive control: Cerebellum (IHC candidate; verify WB)
Negative control: Adipose tissue (IHC candidate; verify WB)
Loading controls: Run GAPDH, β-actin, and a total-protein stain such as Ponceau alongside the samples.
⚠️Feasibility: Whole-tissue lysates are suitable for this intracellular protein; HPA reports adipose tissue as not detected, though a knockdown or KO can provide a stronger specificity control.
HPA tissue expression evidence for ARRB1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Higher expression tissues · candidate positive controls from IHC
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cerebellum | Purkinje cells | High | Protein (IHC) | HPA → |
| Nasopharynx | goblet cells | High | Protein (IHC) | HPA → |
| Soft tissue | fibroblasts | High | Protein (IHC) | HPA → |
| Appendix | glandular cells | Medium | Protein (IHC) | HPA → |
| Breast | glandular cells | Medium | Protein (IHC) | HPA → |
Lower expression tissues · IHC evidence, not confirmed WB-negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adipose tissue | adipocytes | Not detected | Protein (IHC) | HPA → |
| Bone marrow | hematopoietic cells | Not detected | Protein (IHC) | HPA → |
| Heart muscle | cardiomyocytes | Not detected | Protein (IHC) | HPA → |
| Lymph node | non-germinal center cells | Not detected | Protein (IHC) | HPA → |
| Parathyroid gland | glandular cells | Not detected | Protein (IHC) | HPA → |
Section 3
Advanced ARRB1 Western Blot Tips
Deeper troubleshooting and optimisation questions for ARRB1, answered from its protein features.
How should ARRB1 band migration be interpreted?
Band shift · Use the separately labelled calculated mass and catalog-observed evidence above. A sequence annotation does not establish an observed migration shift. Verify target identity with orthogonal controls.
Could ARRB1 isoforms produce separate bands?
Isoforms · ARRB1 has isoforms 1A and 1B; isoform 1B lacks residues 334–341 in UniProt canonical numbering. Compare samples or reagents that distinguish the isoforms, but do not assume this eight-residue difference will resolve as separate bands.
Which ARRB1 phosphorylation sites matter when interpreting bands?
PTM · UniProt lists phosphotyrosine at position 47 and phosphoserine at position 412, the latter by GRK5. These are UniProt canonical coordinates; antibody or paper numbering may differ. Their presence does not establish a visible band shift.
How can GPCR stimulation affect ARRB1 sampling?
Induction · ARRB1 is reported to translocate to the plasma membrane and colocalize with antagonist-stimulated GPCRs. If comparing stimulation conditions, collect samples consistently and consider both cytoplasmic and membrane fractions when interpreting changes in signal.
How should transfer be checked for ARRB1?
Transfer · Standard workflow guidance: verify transfer efficiency for the intended target size before interpreting a weak signal. Use total-protein assessment and optimize transfer for the membrane, gel and apparatus; the labelled catalog values take precedence.
How should blocking be optimized?
Blocking · Standard workflow guidance: follow the M02185 datasheet where specified. Otherwise compare 5% milk or 5% BSA in TBST; for a phospho-specific assay start with BSA. Optimize background and specific signal with matched controls.
How should I quantify ARRB1 redistribution?
Quantitation · ARRB1 is listed in the cytoplasm, nucleus, cell membrane and cytoplasmic vesicles. Quantify comparable fractions separately, with consistent loading and fraction-specific normalization; a change in one fraction alone need not reflect a change in total ARRB1.
Why might ARRB1 appear near 50 kDa instead of 47.1 kDa?
Interpretation · The supplied apparent band is about 50 kDa, while the predicted mass is 47.1 kDa. The listed features do not establish why they differ. Use the observed position as a guide, but verify band identity before assigning the difference to a modification.
ARRB1 can form homodimers, homooligomers and heterooligomers with ARRB2 through InsP6-mediated association. That feature makes oligomerization a possibility to investigate, but it does not establish that an extra Western-blot band is an oligomer.
Check whether bands are consistent with the approximately 50 kDa observed band, the 1A/1B sequence difference, or changes across cellular fractions. The listed phosphorylation sites and oligomerization do not, by themselves, identify an unexpected band.
ARRB1 can form homodimers, homooligomers and heterooligomers with ARRB2 through InsP6-mediated association. That feature makes oligomerization a possibility to investigate, but it does not establish that an extra Western-blot band is an oligomer.
Check whether bands are consistent with the approximately 50 kDa observed band, the 1A/1B sequence difference, or changes across cellular fractions. The listed phosphorylation sites and oligomerization do not, by themselves, identify an unexpected band.
Boster reagents
ARRB1 Western Blot Antibodies
Catalog antibodies with Western blot application and product-specific WB images. Evaluate suitability with the reported sample, controls and experimental conditions.
Real WB data
Anti-ARRB1/Beta Arrestin 1 Rabbit Monoclonal Antibody
Cat # M02185
Real WB data
Anti-beta Arrestin 1/ARRB1 Antibody Picoband®
Cat # PA2155
M02185 and PA2155 are anti-ARRB1 antibodies listed for human, mouse, and rat. Both have Western blot images with named lysates. The supplied evidence describes those tested samples; it does not establish performance across all tissues or provide independent validation.
Which to pick: Choose M02185 if its documented human cell, rat spleen or PC-12, or mouse EL-4 lysates resemble your sample; its caption reports a band near 50 kDa at 1:500. Choose PA2155 for its documented rat lung, rat skeletal muscle, or SW620 lysate examples.
Source: BosterBio ARRB1 gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
