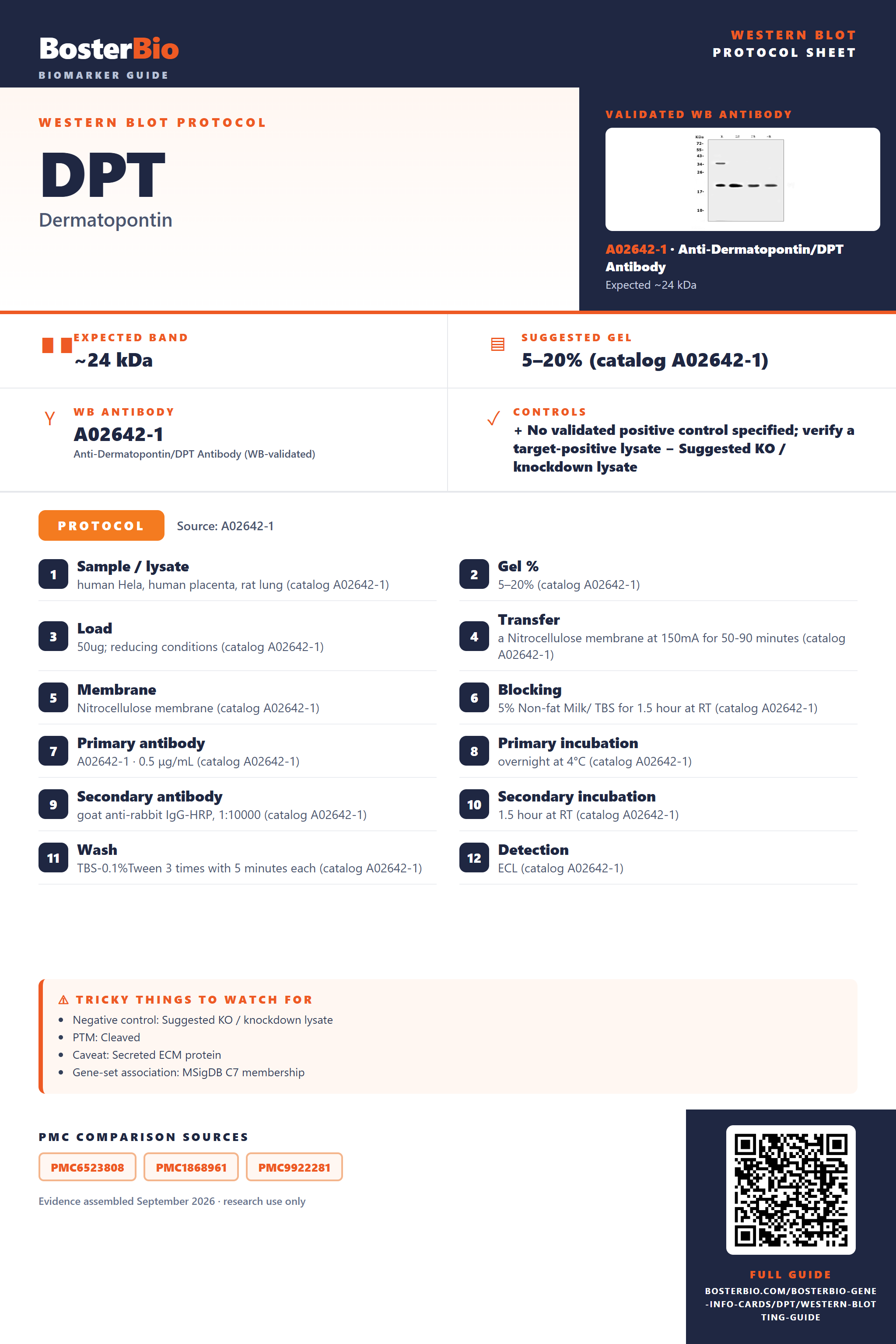

Design a Western Blot for DPT

Band shift · Use the separately labelled calculated mass and catalog-observed evidence above. A sequence annotation does not establish an observed migration shift. Verify target identity with orthogonal controls.

Isoforms · The supplied record lists one isoform and no alternative sequence. It therefore provides no isoform-based explanation for multiple bands. Compare any extra bands with the expected near-20 kDa signal and verify their identity experimentally.

PTM · UniProt lists pyrrolidone carboxylic acid at residue 19 and sulfotyrosines at residues 23, 162, 164, 166, 167, and 194. It lists no glycosylation sites. These annotations alone do not demonstrate a visible band shift or explain the observed 20 kDa band.

Induction · No general induction response is established by this guide. A pathway or gene-set association is not evidence of induction in a particular specimen. Verify the relevant treatment and control in a target-specific experiment.

Transfer · Standard workflow guidance: verify transfer efficiency for the intended target size before interpreting a weak signal. Use total-protein assessment and optimize transfer for the membrane, gel and apparatus; the labelled catalog values take precedence.

Blocking · Standard workflow guidance: follow the A02642-1 datasheet where specified. Otherwise compare 5% milk or 5% BSA in TBST; for a phospho-specific assay start with BSA. Optimize background and specific signal with matched controls.

Quantitation · Standard workflow guidance: quantify only a validated target band within the linear exposure range. Use consistent sample preparation and loading, retain biological replicates, and avoid interpreting saturation or loading differences as regulation.

Interpretation · DPT has a predicted 24 kDa mass and an observed band near 20 kDa. Its signal peptide spans residues 1–18, so secretion involves removal of part of the predicted sequence. This may contribute to the difference, but the supplied features do not establish the band’s exact identity or explain its full apparent mass.

The signal peptide spans UniProt residues 1–18. Residue 19 is annotated as pyrrolidone carboxylic acid, consistent with modification at the start of the processed protein. These are UniProt coordinates; check the numbering convention used by an antibody or paper before comparing sites.

DPT is annotated as secreted into the extracellular space and extracellular matrix. Include the relevant extracellular or matrix-containing material in the sampling plan, and compare like fractions across conditions. A weak cellular-lysate signal alone would not establish low DPT abundance overall.

Use the same sample fraction and extraction procedure across conditions because DPT is secreted and associated with the extracellular matrix. Compare signals within the assay’s linear range and normalize to an appropriate measure of the material loaded from that fraction.

DPT has five annotated disulfide bonds and interacts with TGFB1, DCN, and collagen. Compare reducing and nonreducing preparations and check whether sample fractions differ in extracellular-matrix content. Those features suggest useful checks, but they do not identify an unexpected band or prove that a particular complex survives electrophoresis.
