DUSP1 · Western blot design guide
Design a Western Blot for DUSP1
Real validated DUSP1 Western blot protocols, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-DUSP1 WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Last reviewed: May 2026 · Scientific review: Boster Bio technical team
DUSP1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~39.3 kDa | |
| Observed band | ~40 kDa | |
| Gel | 10–12% | |
| Negative control | siRNA / KO lysate |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | Phosphorylated + Ubiquitinated | |
| Caveat | Phosphorylation-induced mobility shift | |
| Regulation | Hypoxia up | |
| Isoform | 1 isoform(s) |

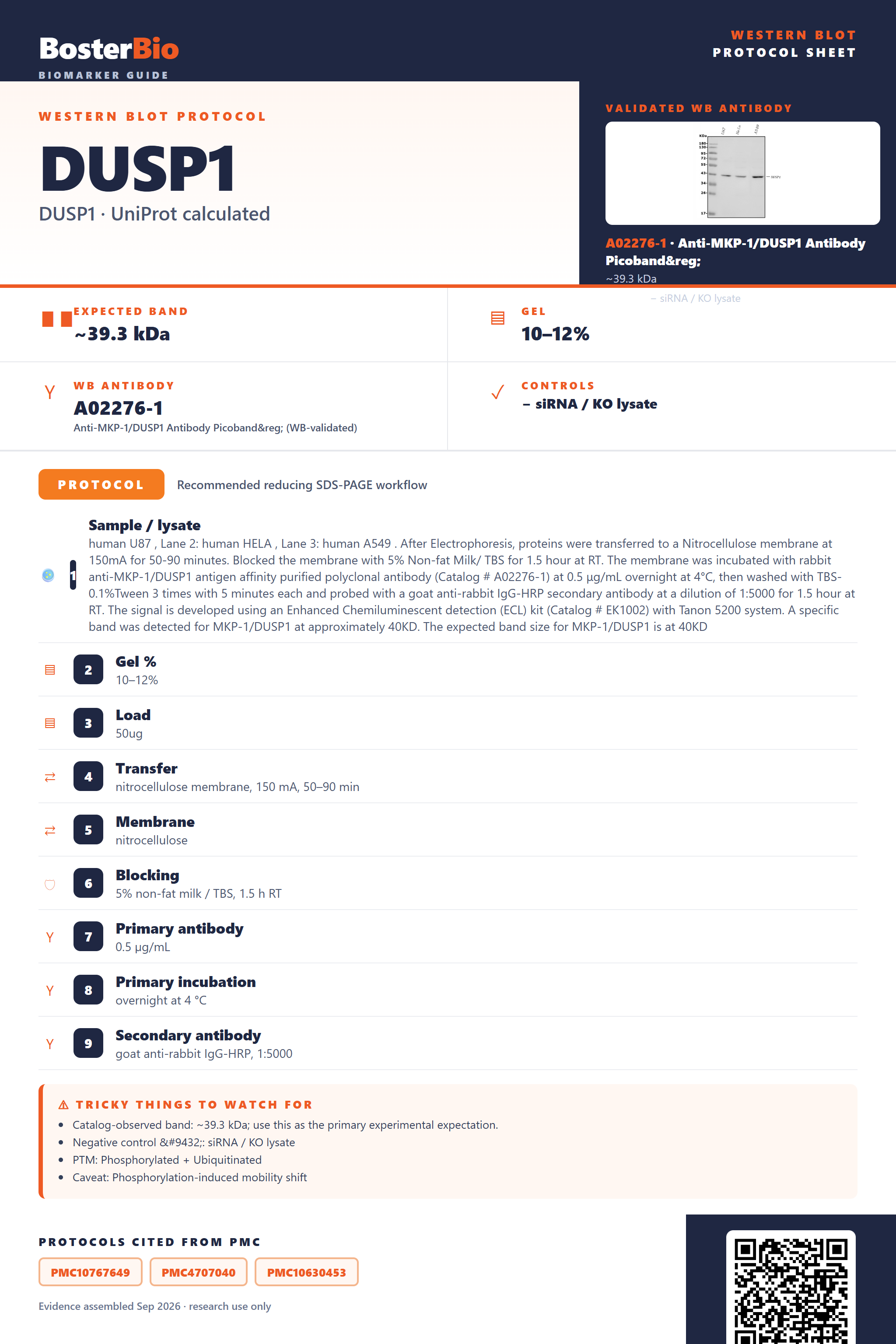

Section 1
Real Curated DUSP1 Western Blot Protocols
Literature-validated Western blot parameters for DUSP1 — gel percentage, transfer, blocking, antibody incubation and detection, extracted from published methods.
| Sample / lysate | human U87 , Lane 2: human HELA , Lane 3: human A549 . After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MKP-1/DUSP1 antigen affinity purified polyclonal antibody (Catalog # A02276-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for MKP-1/DUSP1 at approximately 40KD. The expected band size for MKP-1/DUSP1 is at 40KD |
| Gel % | 10–12% |
| Load | 50ug |
| Transfer | nitrocellulose membrane, 150 mA, 50–90 min |
| Membrane | nitrocellulose |
| Blocking | 5% non-fat milk / TBS, 1.5 h RT |
| Primary antibody | 0.5 µg/mL |
| Primary incubation | overnight at 4 °C |
| Secondary antibody | goat anti-rabbit IgG-HRP, 1:5000 |
| Wash | TBS-0.1% Tween, 3 × 5 min |
| Detection | ECL |
| Exposure / imaging | Tanon 5200 |
| Observed band | 40 kDa |
Section 2
What Is the Expected DUSP1 Western Blot Band Size?
DUSP1's 39.3 kDa predicted mass closely matches its ~40 kDa observed band, with the small gap attributable to phosphorylation rather than glycosylation or disulfide dimerization.
| single sharp band around 40 kDa | unmodified, non-glycosylated DUSP1 running close to its 39.3 kDa predicted mass |
| band migrating slightly above the 39.3 kDa predicted mass | reflects phosphorylation at Ser359/Ser364 by MAPK1/MAPK3, which can retard mobility on SDS-PAGE |
| no smear or heterogeneous laddering above the main band | DUSP1 has no glycosylation sites, so there is no carbohydrate-driven mass heterogeneity to smear the band |
| no higher-molecular-weight band under non-reducing conditions | DUSP1 has no annotated inter-chain disulfide bonds, so it does not form a covalent dimer |
| no smaller cleaved fragment alongside the main band | DUSP1 has no signal peptide or propeptide, so there is no precursor-to-mature processing step to produce a shorter form |
| single band with no companion bands at other masses | only one DUSP1 isoform is annotated, so no splice-variant size heterogeneity is expected |
💡Expected DUSP1 appearanceExpect a single band at approximately 40 kDa, closely matching the 39.3 kDa predicted mass of unmodified DUSP1, since it has no glycosylation, disulfide dimerization, or proteolytic processing to shift its size.
| predicted mass (39.3 kDa) | sets the baseline migration position, closely matching the ~40 kDa band typically observed |
| phosphorylation at Ser359/Ser364 by MAPK1/MAPK3 | can cause a modest upward mobility shift relative to the unmodified predicted mass, especially in stimulated cells |
| absence of glycosylation | prevents any smearing or additional mass from carbohydrate attachment |
| absence of inter-chain disulfide bonds | means no covalent homodimer band should appear even under non-reducing or partially reducing conditions |
| no signal peptide or propeptide | means no precursor-to-mature cleavage, so no smaller processed fragment is expected |
| single annotated isoform | means no additional bands arising from alternative splicing |
| Situation | Likely cause | Next action |
|---|---|---|
| Band higher than expected | phosphorylation of DUSP1 at Ser359/Ser364 by MAPK1/MAPK3 during stress or mitogen signaling retards its migration | compare stimulated versus unstimulated lysates or treat a lysate aliquot with a phosphatase to confirm the shift resolves |
| Weak or no signal | DUSP1 is a low-abundance, rapidly turned-over immediate-early protein expressed transiently after stress or growth factor stimulation | stimulate cells (e.g., serum or oxidative stress) before lysis and include proteasome inhibitors to stabilize the protein |
| No band in lysate | DUSP1 is nuclear-localized and may be under-recovered if the lysis method is optimized only for cytoplasmic extraction | use a lysis buffer effective for nuclear proteins or perform a nuclear fractionation step before loading |
| Multiple bands | since DUSP1 has only one isoform, extra bands most likely reflect antibody cross-reactivity or partial protein degradation | validate specificity with a knockdown or knockout lysate control and add protease inhibitors during lysis |
| Broad smear instead of sharp band | DUSP1 is not glycosylated, so a smear is more likely due to degradation or lysate overloading than glycoform heterogeneity | reduce sample loading, keep lysates cold with fresh protease inhibitors, and avoid repeated freeze-thaw cycles |
Experiment evidence
Western blot images showing DUSP1 band
A02276-1 · DUSP1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for DUSP1 Western blot
🧪For positive controls for DUSP1 in Western blot, you can use whole-cell or nuclear lysate from a commonly used mammalian cell line with confirmed DUSP1 expression (e.g., HeLa), since no Human Protein Atlas tissue/cell expression data are available for this gene to pinpoint a top positive source.
Positive control: HeLa cell lysate
Negative control: ubiquitously expressed; use siRNA knockdown or KO line
Loading controls: Run GAPDH and β-actin as loading control antibodies alongside a total-protein stain (e.g., stain-free gel, Ponceau S, or REVERT).
⚠️Feasibility: With no HPA tissue data and only a nuclear, non-secreted localization known from UniProt, a clean tissue-based negative cannot be confirmed here, so a genetic negative control (siRNA knockdown or KO line) is the more reliable option, and positive-control expression should be verified independently (e.g., by literature or qPCR) before blotting.
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced DUSP1 Western Blot Tips
Deeper troubleshooting and optimisation questions for DUSP1, answered from its protein features.
Why does DUSP1 run close to its predicted 39 kDa mass?
DUSP1 has no signal peptide, propeptide, or glycosylation, so no major post-translational processing alters its mass. Its 39.3 kDa predicted mass matches the observed ~40 kDa band well. Minor upward shifts can arise from phosphorylation at its two annotated modified residues. This close match confirms band identity before assessing additional bands.
What induces DUSP1 expression before immunoblotting?
DUSP1 is annotated as a stress-response protein and its expression is typically induced via MAPK pathway activation. Apply a relevant stress or mitogenic stimulus to cells shortly before lysis to boost signal, and harvest a time course (15-60 min) since induction is rapid and transient, with turnover reducing signal afterward.
Could ubiquitin-like conjugation cause higher molecular weight bands?
DUSP1 is annotated with ubl conjugation, so ubiquitin-like-modified forms can appear as higher-molecular-weight bands or a smear above the ~40 kDa main band. Since this protein has only one isoform, such extra bands reflect modification and turnover status rather than splice variants. Their intensity often correlates with proteasomal degradation rate.
Which blocking approach best preserves phosphoprotein detection?
DUSP1 carries two annotated modified residues (phosphosites), so when using phospho-specific antibodies avoid milk-based blockers, since milk contains phosphoproteins that raise background; use 5% BSA in TBST instead. For antibodies detecting total DUSP1 regardless of phosphorylation state, standard non-fat milk blocking is acceptable.
What transfer method to use for DUSP1 Western blot?
DUSP1 is a soluble, non-glycosylated ~39-40 kDa protein with no disulfide bonds, so standard wet or semi-dry transfer onto 0.2 µm PVDF or nitrocellulose works well. A 60-90 minute wet transfer at 100V is typically sufficient; no extended transfer or special membrane pore size is needed for this mid-size nuclear protein.
How should DUSP1 signal be normalized for quantitation?
Because DUSP1 is a low-abundance, stress-inducible nuclear phosphatase with rapid turnover, normalize signal to a stable nuclear loading control such as Lamin B1 if fractionating, or total protein stain otherwise. Always include time-matched untreated controls, since basal DUSP1 expression is low and induction is transient.
What explains faint bands below the main DUSP1 band?
Faint lower-molecular-weight bands likely reflect proteolytic degradation fragments, consistent with DUSP1's rapid turnover as a stress-response protein. Because only one isoform exists, alternative splicing is not a plausible cause. Confirm specificity of any unexpected band using a DUSP1 knockdown or knockout lysate as a negative control.
Boster reagents
Best DUSP1 Western Blot Antibodies
BosterBio's DUSP1 antibodies are among the best-performing WB antibodies on the market — well cited, thoroughly validated, and orthogonally cross-validated against negative tissues and complementary methods.
Real WB data
Anti-MKP-1/DUSP1 Antibody Picoband®
Cat # A02276-1
One Boster anti-DUSP1/MKP-1 antibody (A02276-1) is available for Western blot, backed by a published validation image showing detection of the target band under standard SDS-PAGE conditions.
Which to pick: Only one antibody is listed for DUSP1 WB: A02276-1. It includes an actual WB validation image, so it's the default choice here — no alternative SKUs to compare against in this catalog.
Source: BosterBio DUSP1 gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
References
- UniProt Consortium. UniProt entry P28562.
- Human Protein Atlas. DUSP1 tissue expression.
