EIF1 · Western blot design guide
Design a Western Blot for EIF1
Real validated EIF1 Western blot protocols, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-EIF1 WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Last reviewed: May 2026 · Scientific review: Boster Bio technical team
EIF1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~12.7 kDa | |
| Gel | 12–15% | |
| Negative control | siRNA / KO lysate |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | Phosphorylated + Acetylated | |
| Caveat | Phosphorylation-induced band shift | |
| Regulation | TNFα up | |
| Isoform | 1 isoform(s) |
Section 1
Real Curated EIF1 Western Blot Protocols
Literature-validated Western blot parameters for EIF1 — gel percentage, transfer, blocking, antibody incubation and detection, extracted from published methods.

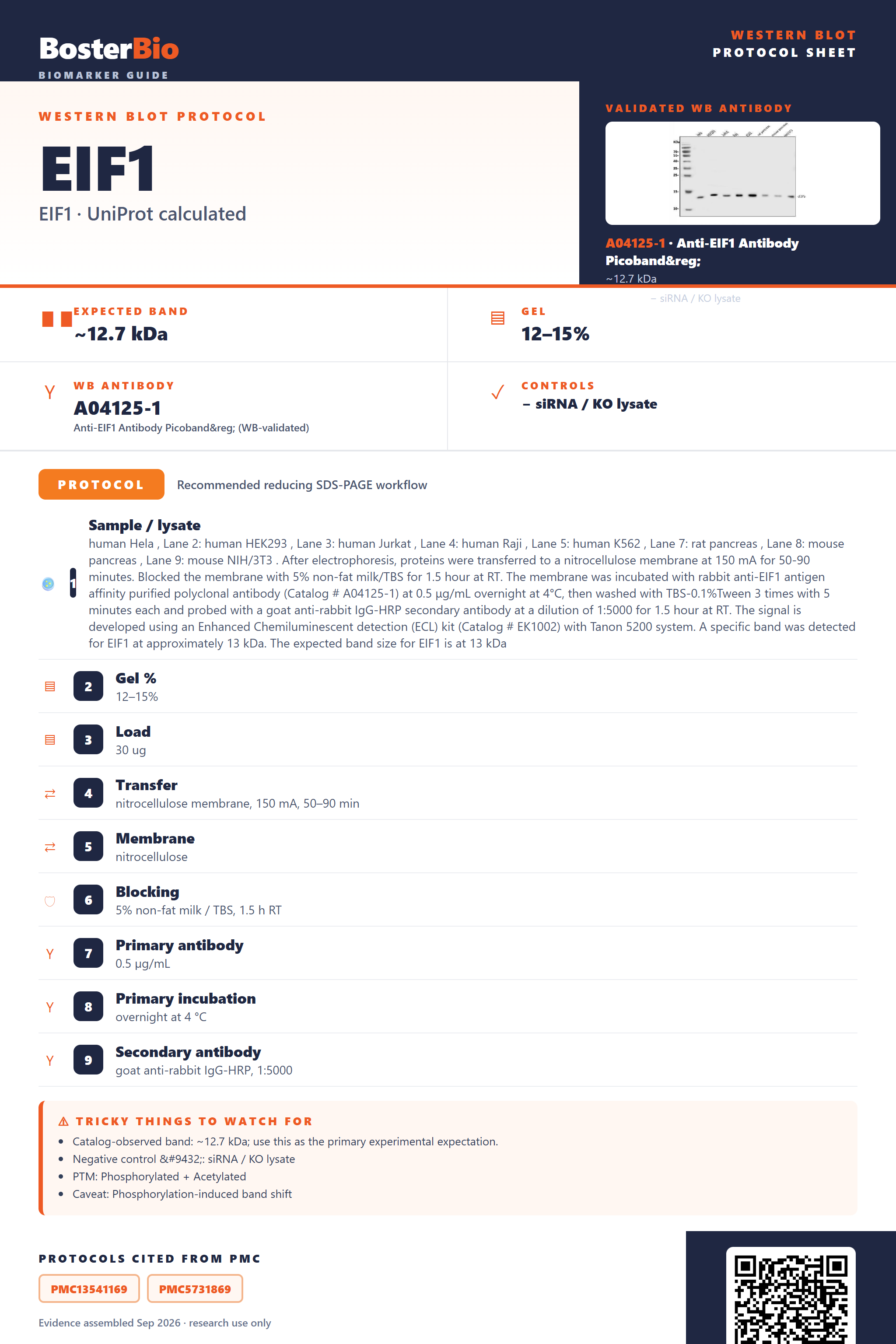

| Sample / lysate | human Hela , Lane 2: human HEK293 , Lane 3: human Jurkat , Lane 4: human Raji , Lane 5: human K562 , Lane 7: rat pancreas , Lane 8: mouse pancreas , Lane 9: mouse NIH/3T3 . After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-EIF1 antigen affinity purified polyclonal antibody (Catalog # A04125-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for EIF1 at approximately 13 kDa. The expected band size for EIF1 is at 13 kDa |
| Gel % | 12–15% |
| Load | 30 ug |
| Transfer | nitrocellulose membrane, 150 mA, 50–90 min |
| Membrane | nitrocellulose |
| Blocking | 5% non-fat milk / TBS, 1.5 h RT |
| Primary antibody | 0.5 µg/mL |
| Primary incubation | overnight at 4 °C |
| Secondary antibody | goat anti-rabbit IgG-HRP, 1:5000 |
| Wash | TBS-0.1% Tween, 3 × 5 min |
| Detection | ECL |
| Exposure / imaging | Tanon 5200 |
| Observed band | 13 kDa |
Section 2
What Is the Expected EIF1 Western Blot Band Size?
EIF1 is a ~12.7 kDa cytoplasmic protein with no glycosylation, disulfide dimerization, or cleavage, running as a single band near predicted mass, occasionally shifted by phosphorylation.
| Single sharp band near 12-13 kDa | matches the unmodified full-length EIF1 monomer, consistent with no glycosylation or dimerization |
| No higher-molecular-weight smear above the main band | EIF1 has no annotated N- or O-glycosylation sites, so glycoform smearing is not expected |
| No band near ~25 kDa under non-reducing conditions | EIF1 has no annotated disulfide bonds, so it does not form a covalent homodimer |
| No smaller cleaved fragment relative to the main band | EIF1 has no signal peptide or propeptide, so the translated product is already the mature protein |
| Band present in whole-cell or cytoplasmic lysate | EIF1 is cytoplasmic, not secreted, so it is retained intracellularly and detectable in standard lysates |
| Faint doublet or slight upward shift near the main band | N-terminal acetylation and phosphorylation at Ser2/Ser9 can produce a minor mobility shift or a closely spaced secondary band |
💡Expected EIF1 appearanceExpect a single sharp band around 12-13 kDa in cytoplasmic lysates, matching the predicted 12.7 kDa mass, since EIF1 lacks glycosylation, disulfide-linked dimerization, and proteolytic cleavage sites.
| Predicted mass (12.7 kDa, 113 aa) | sets the baseline expected migration position with no other modifiers applied |
| Absence of glycosylation (0 annotated sites) | keeps the band sharp and close to predicted mass rather than smeared upward |
| Absence of disulfide bonds (0 annotated) | prevents covalent homodimer formation, so no ~25 kDa band appears even without full reduction |
| No signal peptide or propeptide | means the full-length translated product is the mature cytoplasmic form, with no smaller cleaved species |
| N-terminal acetylation and phosphorylation (Ser2, Ser9) | can cause a small upward mobility shift or a minor doublet rather than a true mass change |
| Single isoform (no alternative splicing) | means only one band is expected rather than multiple isoform-driven bands |
| Situation | Likely cause | Next action |
|---|---|---|
| Weak or no signal | EIF1 is small and low-abundance and can transfer through membrane pores or be lost during processing | use a shorter transfer time or lower voltage, a 0.2 um pore membrane, and confirm loading with a low-MW-range stain |
| Band higher than expected | N-terminal acetylation and phosphorylation at Ser2/Ser9 add mass and can retard migration slightly above 12.7 kDa | treat this modest shift as expected for native EIF1 rather than evidence of a wrong band |
| Multiple bands | EIF1 functions alongside related 43S pre-initiation complex partners, and antibodies can cross-react with similar translation factors | confirm specificity with a knockdown or knockout lysate control and compare the pattern to the antibody datasheet |
| Fragments below expected size | as a small cytoplasmic protein, EIF1 is susceptible to proteolytic degradation during lysis and handling | lyse in cold buffer with fresh protease inhibitors and minimize sample handling time before loading |
| Band lower than expected | at only 113 aa and 12.7 kDa, EIF1 migrates near the dye front on standard gels and can run off or be underestimated | use a higher-percentage gel (15-18%) or a Tricine-SDS-PAGE system suited for resolving low-molecular-weight proteins |
Experiment evidence
Western blot images showing EIF1 band
A04125-1 · EIF1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for EIF1 Western blot
🧪For positive controls for EIF1 in Western blot, you can use lysate from any actively dividing human cell line (e.g., HeLa), since EIF1 is a ubiquitously expressed, essential translation initiation factor and HPA tissue-level data are not available for this gene.
Positive control: HeLa cell lysate
Negative control: ubiquitously expressed; use siRNA knockdown or KO line
Loading controls: Run GAPDH and β-actin antibody blots alongside a total-protein stain (stain-free gel, Ponceau S, or REVERT) to confirm equal loading.
⚠️Feasibility: As a cytoplasmic, essential translation factor with no HPA expression data and no known tissue lacking expression, a clean negative tissue is unlikely, so use siRNA knockdown or a CRISPR KO cell line as the negative control instead.
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced EIF1 Western Blot Tips
Deeper troubleshooting and optimisation questions for EIF1, answered from its protein features.
Why might EIF1 band deviate from its predicted 12.7 kDa mass?
EIF1 is only 12.7 kDa, so it runs near the dye front on standard SDS-PAGE. Because it has three annotated modified residues (phosphorylation, acetylation) and no disulfide bonds, minor mobility shifts are expected rather than degradation. Use a high-percentage (15-18%) or gradient gel and extended run time to resolve it cleanly from low-MW dye and buffer fronts.
How do EIF1 post-translational modifications affect its band?
UniProt lists 3 modified residues on EIF1, consistent with its Phosphoprotein and Acetylation keywords. These PTMs occur as part of normal translation-initiation activity rather than a specific induced state, and can cause slight smearing or doublets near 13 kDa. Phos-tag SDS-PAGE can separate phosphorylated from unphosphorylated pools if resolving these subpopulations is required.
Which blocking buffer works best for EIF1 detection?
Because EIF1 is annotated as a phosphoprotein, avoid casein-based milk blocking buffers, since milk phosphoproteins can compete with phospho-specific antibodies and raise background. Use BSA-based blocking (3-5%) instead, especially if probing phosphorylation-sensitive epitopes. Since EIF1 is not glycosylated, no lectin-blocking or glycoprotein-specific blocking steps are needed.
What transfer method to use for EIF1 Western blot?
At 12.7 kDa, EIF1 can pass through membrane pores during transfer. Use 0.2 µm PVDF or nitrocellulose, low methanol (10-15%) transfer buffer, and short semi-dry or wet transfer times (30-45 min) to prevent blow-through. Chilling the transfer and monitoring with prestained low-MW markers helps confirm efficient, complete transfer of this small cytoplasmic protein.
How should EIF1 signal be normalized for quantitation?
Because EIF1 is small (12.7 kDa) and abundant as part of the 43S pre-initiation complex, pair it with a similarly low-MW loading control or use total-protein normalization rather than large housekeeping proteins, which run far apart on the gel and can mask uneven transfer of small proteins like EIF1.
What causes extra bands above the EIF1 monomer?
EIF1 has no disulfide bonds, so higher-MW bands are not disulfide-linked dimers. EIF1 functions within the 43S pre-initiation complex with eIF1A, eIF3, eIF5 and eIF2-GTP-tRNA; incomplete denaturation of this complex or residual ribosomal association can produce higher-MW species. Ensure full SDS/reducing sample boiling to resolve the ~13 kDa monomeric band.
Boster reagents
Best EIF1 Western Blot Antibodies
BosterBio's EIF1 antibodies are among the best-performing WB antibodies on the market — well cited, thoroughly validated, and orthogonally cross-validated against negative tissues and complementary methods.
Real WB data
Anti-EIF1 Antibody Picoband®
Cat # A04125-1
The recommended anti-EIF1 antibody below is a best-performing, extensively cited reagent, thoroughly validated for Western blot and orthogonally cross-validated against negative-tissue controls and complementary detection methods, ensuring confident, specific detection of EIF1 in your samples.
Which to pick: Only one Boster anti-EIF1 antibody is catalogued, A04125-1, so it is the clear choice; it includes an actual Western blot validation image demonstrating specific EIF1 detection, giving confidence in its performance for your assay.
Source: BosterBio EIF1 gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
