- Table of Contents
SSR1 · Western blot design guide
SSR1 Western Blot Planning Guide
Plan a SSR1 Western blot around the catalog-observed 32.2 kDa band, image-backed A06993-1 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
SSR1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 32.2 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Salivary gland | |
| Negative control | Bone marrow |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 32.2 kDa |
| ⓘ | Localization | Endoplasmic reticulum membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated SSR1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Epididymis |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A06993-1 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected SSR1 Western Blot Band Size?
Use the product-observed 32.2 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 32.2 kDa | Matches the authoritative product WB observation. |
| 32.2 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected SSR1 appearancePlan around 32.2 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 32.2 kDa; use this as the primary experimental expectation. |
| Calculated mass | 32.2 kDa from UniProt P43307; retain as context. |

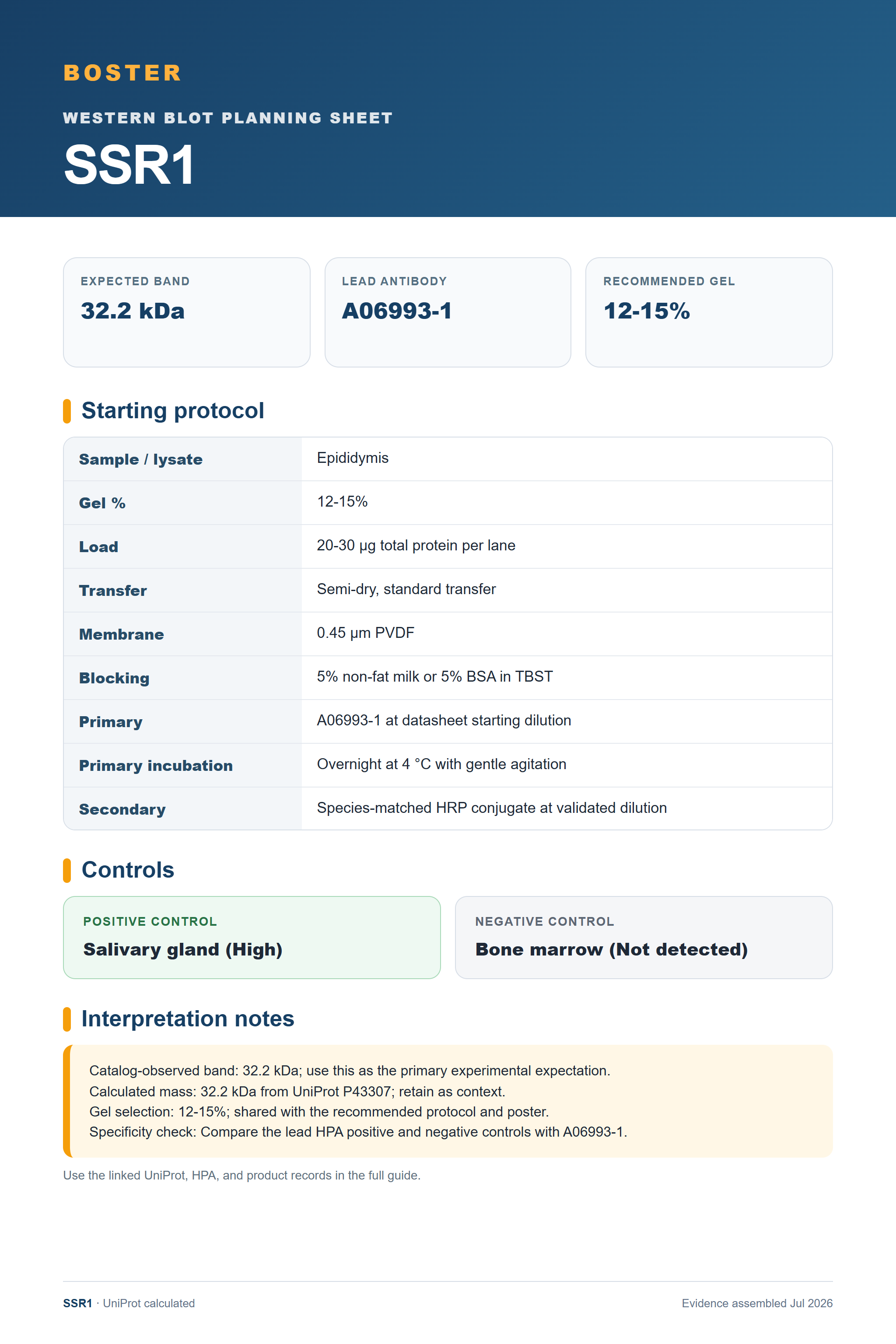

| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A06993-1. |
| Situation | Likely cause | Next action |
|---|---|---|
| 32.2 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing SSR1 band
A06993-1 · SSR1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for SSR1 Western blot
🧪Use Salivary gland as the first positive-control candidate and Bone marrow as the HPA Not detected negative candidate.
Positive control: Salivary gland (High)
Negative control: Bone marrow (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for SSR1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Salivary gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Stomach | Reported tissue cells | High | Protein (HPA) | HPA → |
| Epididymis | Reported tissue cells | High | Protein (HPA) | HPA → |
| Breast | Reported tissue cells | Medium | Protein (HPA) | HPA → |
Section 3
Advanced SSR1 Western Blot Tips
Deeper troubleshooting and optimisation questions for SSR1, answered from its protein features.
Which band should guide the blot?
Use 32.2 kDa, the observation attached to the authoritative A06993-1 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 32.2 kDa expectation.
Which positive control should I start with?
Start with Salivary gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Bone marrow as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for SSR1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A06993-1 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
SSR1 Western Blot Reagents
Human/Mouse/Rat-reactive SSR1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-TRAP alpha/TRAPA/SSR1 Antibody Picoband®
Cat # A06993-1
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P43307
- Human Protein Atlas — SSR1
- A06993-1 product record
- PMC11446074 — CircSSR1 regulates pyroptosis of pulmonary artery smooth muscle cells through parental protein SSR1 mediating endoplasmic reticulum stress (Respiratory research, 2024)
- PMC6739144 — Mutations in the translocon-associated protein complex subunit SSR3 cause a novel congenital disorder of glycosylation (Journal of inherited metabolic disease, 2019)
