TPSAB1 · Western blot design guide

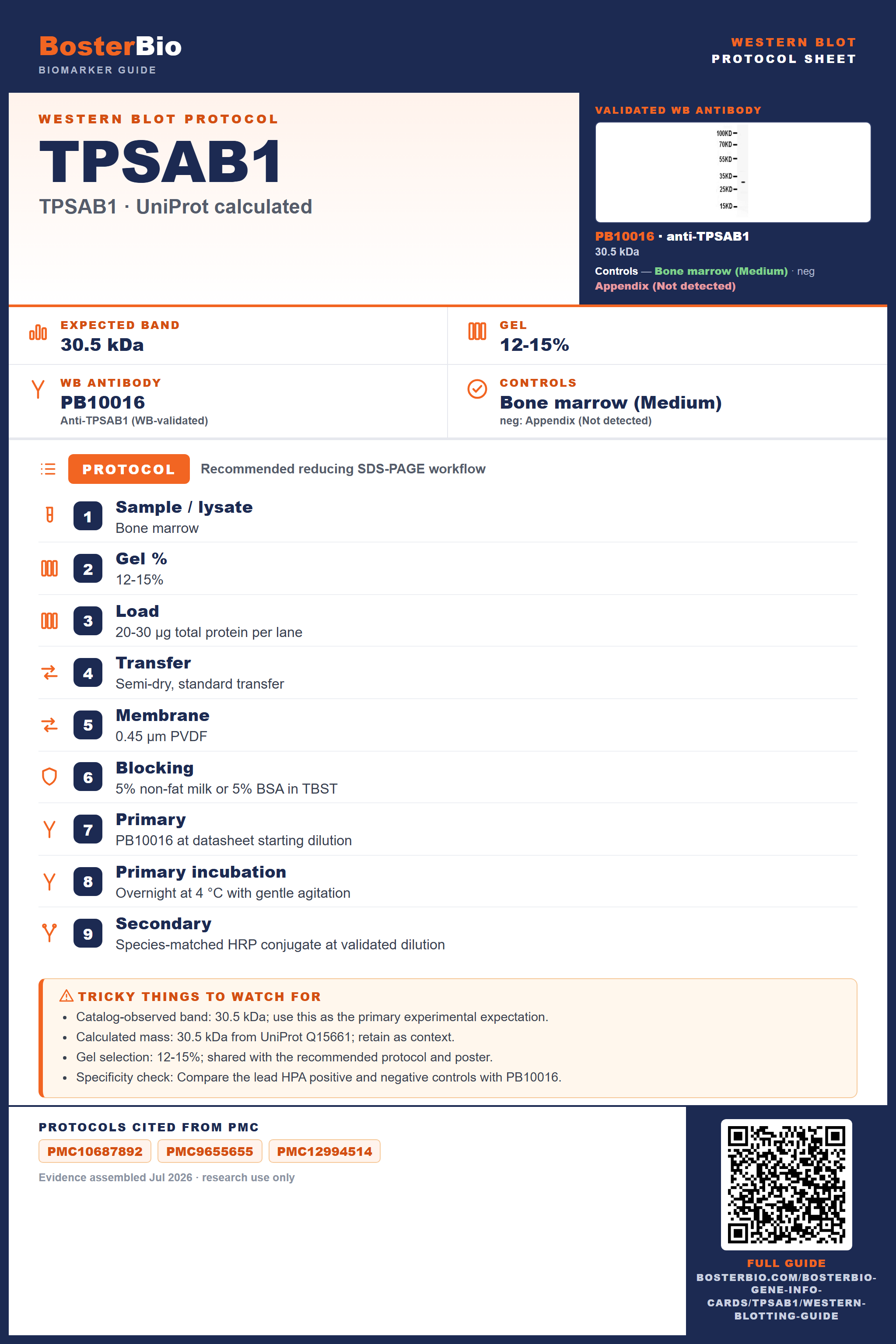

TPSAB1 Western Blot Planning Guide
Plan a TPSAB1 Western blot around the catalog-observed 30.5 kDa band, image-backed PB10016 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
TPSAB1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 30.5 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Bone marrow | |
| Negative control | Appendix |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 30.5 kDa |
| ⓘ | Localization | Secreted |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1
Real Curated TPSAB1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Bone marrow |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB10016 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected TPSAB1 Western Blot Band Size?
Use the product-observed 30.5 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 30.5 kDa | Matches the authoritative product WB observation. |
| 30.5 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected TPSAB1 appearancePlan around 30.5 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 30.5 kDa; use this as the primary experimental expectation. |
| Calculated mass | 30.5 kDa from UniProt Q15661; retain as context. |
| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB10016. |
| Situation | Likely cause | Next action |
|---|---|---|
| 30.5 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing TPSAB1 band
PB10016 · TPSAB1
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for TPSAB1 Western blot
🧪Use Bone marrow as the first positive-control candidate and Appendix as the HPA Not detected negative candidate.
Positive control: Bone marrow (Medium)
Negative control: Appendix (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for TPSAB1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Section 3
Advanced TPSAB1 Western Blot Tips
Deeper troubleshooting and optimisation questions for TPSAB1, answered from its protein features.
Which band should guide the blot?
Use 30.5 kDa, the observation attached to the authoritative PB10016 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 30.5 kDa expectation.
Which positive control should I start with?
Start with Bone marrow, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Appendix as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for TPSAB1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB10016 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
Compare only the supplied target-verified records: PMC10687892, PMC9655655, PMC12994514.
Boster reagents
TPSAB1 Western Blot Reagents
Human-reactive TPSAB1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-Mast Cell Tryptase/TPSAB1 Antibody Picoband®
Cat # PB10016
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q15661
- Human Protein Atlas — TPSAB1
- PB10016 product record
- PMC10687892 — Single-cell analysis unveils activation of mast cells in colorectal cancer microenvironment.
- PMC9655655 — An Amide Alkaloid Isolated from Ephedra sinica Ameliorates OVA-Induced Allergic Asthma by Inhibiting Mast Cell Activation and Dendritic Cell Maturation.
- PMC12994514 — Mast cell corticotropin-releasing factor receptor 1 contributes to pancreatic cancer pain via mitogen-activated protein kinase/sphingosine kinases type 1 signaling.
