ZIC3 · Western blot design guide
Design a Western Blot for ZIC3
Real validated ZIC3 Western blot protocols, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-ZIC3 WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Last reviewed: May 2026 · Scientific review: Boster Bio technical team
ZIC3 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~50.6 kDa | |
| Observed band | 56-60 kDa | |
| Gel | 10–12% | |
| Negative control | siRNA / KO lysate |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | Ubiquitinated | |
| Caveat | Ubiquitination | |
| Regulation | IFN-γ-suppressed | |
| Isoform | 2 isoform(s) |
Section 1

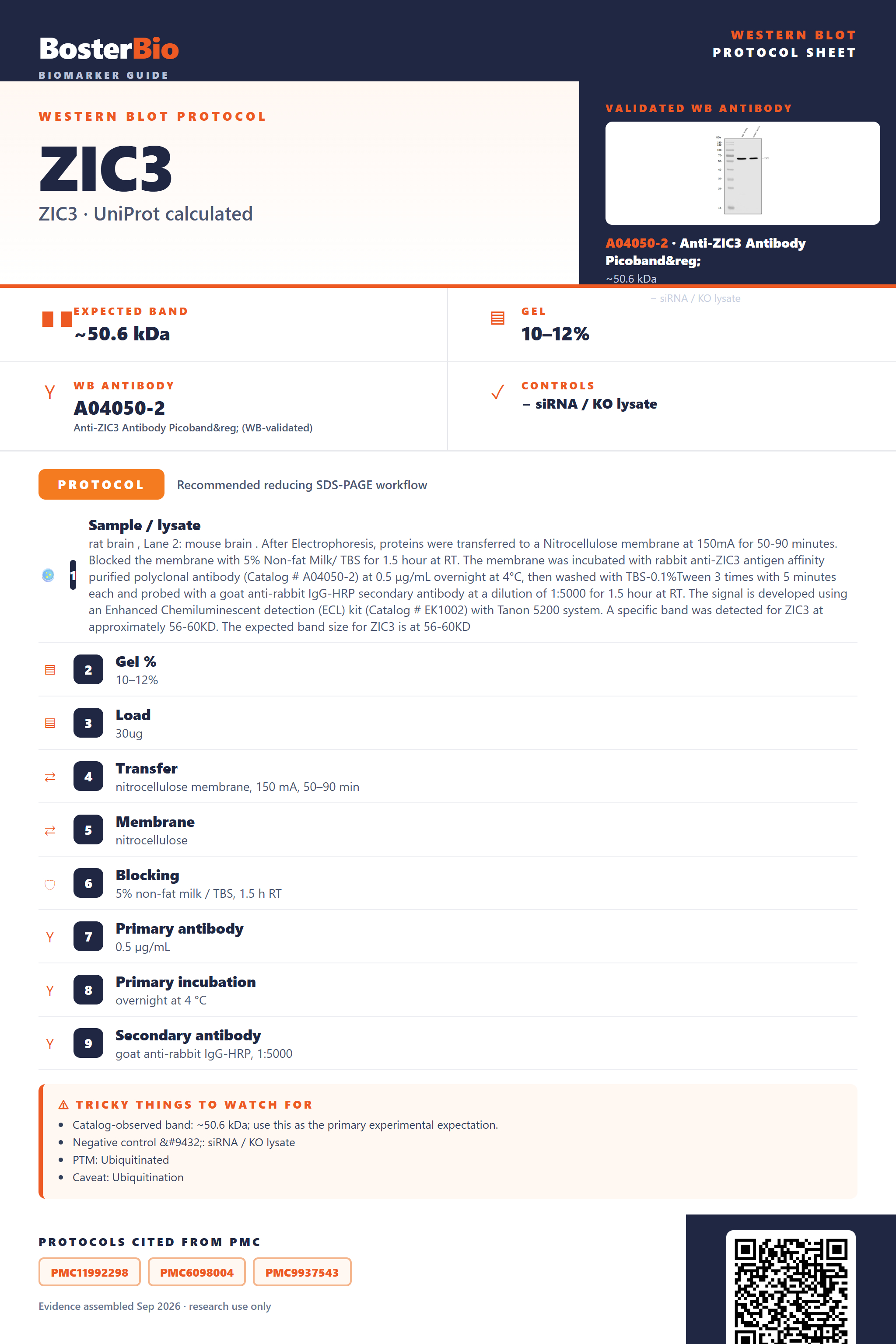

Real Curated ZIC3 Western Blot Protocols
Literature-validated Western blot parameters for ZIC3 — gel percentage, transfer, blocking, antibody incubation and detection, extracted from published methods.
| Sample / lysate | rat brain , Lane 2: mouse brain . After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-ZIC3 antigen affinity purified polyclonal antibody (Catalog # A04050-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for ZIC3 at approximately 56-60KD. The expected band size for ZIC3 is at 56-60KD |
| Gel % | 10–12% |
| Load | 30ug |
| Transfer | nitrocellulose membrane, 150 mA, 50–90 min |
| Membrane | nitrocellulose |
| Blocking | 5% non-fat milk / TBS, 1.5 h RT |
| Primary antibody | 0.5 µg/mL |
| Primary incubation | overnight at 4 °C |
| Secondary antibody | goat anti-rabbit IgG-HRP, 1:5000 |
| Wash | TBS-0.1% Tween, 3 × 5 min |
| Detection | ECL |
| Exposure / imaging | Tanon 5200 |
| Observed band | 56–60 kDa |
Section 2
What Is the Expected ZIC3 Western Blot Band Size?
ZIC3 has a 50.6 kDa predicted mass but typically runs at 56-60 kDa, likely reflecting isopeptide-linked Ubl conjugation and isoform variation rather than glycosylation or disulfide bonding.
| single band at 56-60 kDa | the native full-length ZIC3 monomer, migrating above its 50.6 kDa calculated mass |
| sharp band without smearing | consistent with the absence of any annotated glycosylation site, so no glycoform heterogeneity is expected |
| two closely spaced bands | co-expression of the two annotated splice isoforms, isoform 1 and isoform 2 |
| band signal shifts between nuclear and cytoplasmic fractions | ZIC3 relocates between cytoplasm and nucleus depending on KPNA1/KPNA6-mediated import and MDFIC-driven cytoplasmic retention |
| a slightly larger, upward-shifted species above the main 56-60 kDa band | covalent ubiquitin-like (isopeptide-bonded) conjugation of a subpopulation of ZIC3 adds mass beyond the unmodified backbone |
💡Expected ZIC3 appearanceExpect ZIC3 as a single sharp band at approximately 56-60 kDa, above its 50.6 kDa predicted mass, with a possible closely spaced second band reflecting isoform 2.
| Predicted mass (50.6 kDa, 467 aa) from UniProt | sets the calculated baseline; the empirically observed 56-60 kDa band runs above this baseline |
| Splice isoforms (isoform 1 and isoform 2) | alternative splicing can yield isoform 2 as a size-shifted second band relative to canonical isoform 1, without a defined isoform-specific kDa |
| Ubl (SUMO-like) conjugation via isopeptide bond | covalent modification can add mass, producing a slower-migrating, higher-apparent-weight species above the unmodified band |
| Bacterial/non-glycosylated recombinant standard | a recombinant standard lacking eukaryotic post-translational modification runs closer to the calculated 50.6 kDa, appearing lower than the native 56-60 kDa lysate band |
| Situation | Likely cause | Next action |
|---|---|---|
| No band in lysate | ZIC3 is a low-abundance nuclear/cytoplasmic transcription factor and can be under-extracted if the lysis buffer does not solubilize nuclear proteins | use a lysis buffer validated for nuclear extraction and confirm loading control signal before concluding absence |
| Band higher than expected | isopeptide-linked Ubl (SUMO-like) conjugation adds covalent mass to a subpopulation of ZIC3 | note that the modified species resolves above the unmodified band and compare relative intensities rather than expecting a single mass |
| Multiple bands | both annotated splice isoforms, isoform 1 and isoform 2, can be co-expressed | compare band pattern against isoform-specific sequence differences to assign each band |
| Weak or no signal | nuclear-cytoplasmic shuttling driven by KPNA1/KPNA6 import and MDFIC-mediated retention can concentrate ZIC3 in one subcellular compartment | perform subcellular fractionation and probe both nuclear and cytoplasmic fractions separately |
| Broad smear instead of sharp band | although no glycosylation site is annotated, overloading or incomplete transfer of this basic zinc-finger DNA-binding protein can cause smearing | reduce protein load, optimize transfer time, and use freshly prepared reducing sample buffer |
Experiment evidence
Western blot images showing ZIC3 band
A04050-2 · ZIC3
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for ZIC3 Western blot
🧪For positive controls for ZIC3 in Western blot, you can use lysate from cells transiently transfected to overexpress ZIC3, since no tissue or cell line with confirmed endogenous expression is available from Human Protein Atlas data.
Positive control: ZIC3-overexpressing cell lysate
Negative control: ubiquitously expressed; use siRNA knockdown or KO line
Loading controls: Also probe for GAPDH and β-actin alongside a total-protein stain (e.g., stain-free gel, Ponceau S, or REVERT) as loading controls.
⚠️Feasibility: As a low-abundance nuclear/cytoplasmic transcription factor with no HPA expression data to guide tissue selection, reliable controls are hard to source natively, so antibody validation should rely on an overexpression system paired with siRNA knockdown or a KO line.
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced ZIC3 Western Blot Tips
Deeper troubleshooting and optimisation questions for ZIC3, answered from its protein features.
Why does ZIC3 run heavier than its predicted 50.6 kDa mass?
ZIC3's five tandem C2H2 zinc-finger repeats and polyalanine tract can slow SDS-PAGE mobility, and isopeptide-linked ubiquitin-like modification adds mass, so the protein commonly resolves at 56-60 kDa rather than the calculated 50.6 kDa. Treat this shift as expected rather than a loading artifact, and confirm band identity with a ZIC3 knockdown or knockout control.
Should I expect more than one ZIC3 isoform band?
UniProt lists two ZIC3 isoforms generated by alternative splicing, so blots may show two closely spaced bands near 56-60 kDa depending on antibody epitope and which splice variants are expressed in your cell or tissue type. Confirm which isoform(s) your antibody targets and report relative intensities rather than treating the doublet as nonspecific binding.
Does ZIC3 expression change with cell differentiation state?
ZIC3 is annotated as a developmental, neurogenesis-associated transcriptional activator, so expression is expected to be higher in progenitor and actively differentiating cells than in fully mature tissue. Time lysate collection to a relevant developmental or differentiation stage in your model, and include a known ZIC3-expressing progenitor line as a positive control.
How should blocking be optimized for ZIC3 detection?
ZIC3 has no annotated glycosylation or phosphorylation sites, so standard 5% non-fat milk in TBST is suitable and phospho-specific blocking agents are unnecessary. As a low-abundance nuclear transcription factor, extend blocking to 1 hour and use well-titrated antibody dilutions to keep background low around the 56-60 kDa region.
What transfer method to use for ZIC3 Western blot?
As a ~56-60 kDa nuclear DNA-binding protein, ZIC3 transfers efficiently using standard wet or semi-dry transfer onto PVDF membrane under typical mid-molecular-weight conditions. Extended high-molecular-weight transfer times are not required; use a nuclear-compatible lysis buffer to ensure this nuclear-localized factor is fully solubilized before loading.
How should ZIC3 band intensity be quantified reliably?
Because ZIC3 can appear as a doublet from its two isoforms, sum signal across both bands unless isoform-specific quantitation is intended. Normalize to total protein stain rather than a single housekeeping gene, since ZIC3 is a regulated developmental transcription factor whose abundance varies with differentiation state.
What explains extra bands above or below ZIC3?
Higher-molecular-weight bands can reflect isopeptide-linked ubiquitin-like modification of ZIC3, while its interaction with MDFIC and nucleocytoplasmic shuttling via KPNA1/KPNA6 affect localization and solubility rather than mass. Lower-molecular-weight bands likely indicate degradation; use fresh lysates with protease inhibitors and verify specificity using a ZIC3 knockdown control.
Boster reagents
Best ZIC3 Western Blot Antibodies
BosterBio's ZIC3 antibodies are among the best-performing WB antibodies on the market — well cited, thoroughly validated, and orthogonally cross-validated against negative tissues and complementary methods.
Real WB data
Anti-ZIC3 Antibody Picoband®
Cat # A04050-2
The anti-ZIC3 antibodies recommended below represent top-performing reagents for Western blot detection, selected for strong literature citation, rigorous validation, and cross-confirmation against negative-control tissues and orthogonal methods to ensure specific, reproducible ZIC3 detection.
Which to pick: Only one Boster ZIC3 antibody is catalogued, A04050-2, which includes an authentic Western blot validation image (SDS-PAGE, 5-20% gel) confirming specific detection, making it the clear, and only, choice for WB experiments.
Source: BosterBio ZIC3 gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
References
- UniProt Consortium. UniProt entry O60481.
- Human Protein Atlas. ZIC3 tissue expression.
