ARC · Western blot design guide
Design a Western Blot for ARC
Real validated ARC Western blot protocols, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-ARC WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Last reviewed: May 2026 · Scientific review: Boster Bio technical team
ARC Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~45.3 kDa | |
| Gel | 10–12% | |
| Negative control | siRNA / KO lysate |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | Phosphorylated + Ubiquitinated | |
| Caveat | Oligomerizes into capsids | |
| Regulation | LPS-induced | |
| Isoform | 1 isoform(s) |
Section 1

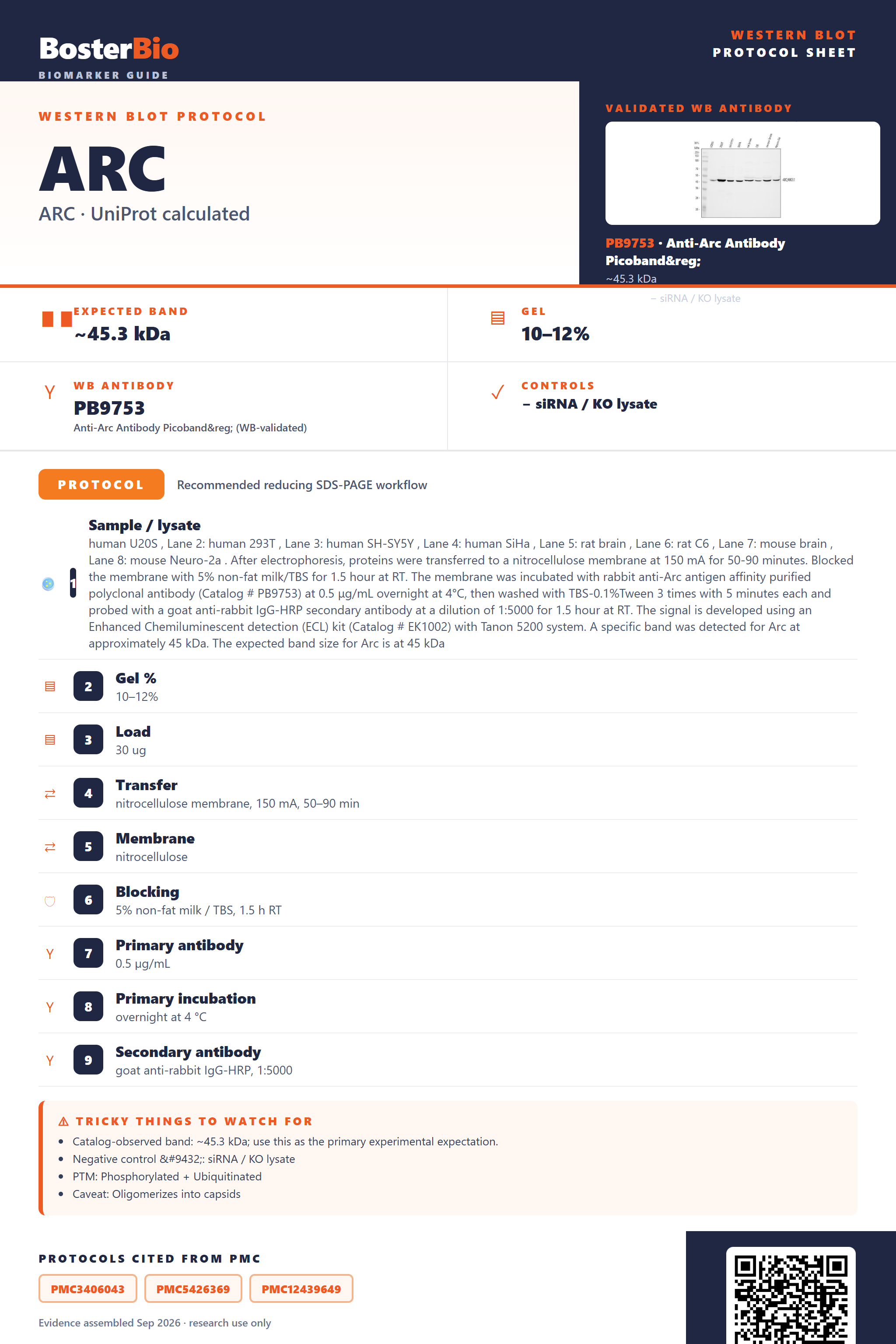

Real Curated ARC Western Blot Protocols
Literature-validated Western blot parameters for ARC — gel percentage, transfer, blocking, antibody incubation and detection, extracted from published methods.
| Sample / lysate | human U20S , Lane 2: human 293T , Lane 3: human SH-SY5Y , Lane 4: human SiHa , Lane 5: rat brain , Lane 6: rat C6 , Lane 7: mouse brain , Lane 8: mouse Neuro-2a . After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-Arc antigen affinity purified polyclonal antibody (Catalog # PB9753) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for Arc at approximately 45 kDa. The expected band size for Arc is at 45 kDa |
| Gel % | 10–12% |
| Load | 30 ug |
| Transfer | nitrocellulose membrane, 150 mA, 50–90 min |
| Membrane | nitrocellulose |
| Blocking | 5% non-fat milk / TBS, 1.5 h RT |
| Primary antibody | 0.5 µg/mL |
| Primary incubation | overnight at 4 °C |
| Secondary antibody | goat anti-rabbit IgG-HRP, 1:5000 |
| Wash | TBS-0.1% Tween, 3 × 5 min |
| Detection | ECL |
| Exposure / imaging | Tanon 5200 |
| Observed band | 45 kDa |
Section 2
What Is the Expected ARC Western Blot Band Size?
ARC has a 45.3 kDa unglycosylated monomer backbone but its expression, homooligomeric capsid state, and Ubl conjugation can add faint higher bands or weak signal outside activated neurons.
| single band near 45 kDa | matches the predicted monomer mass of ARC, consistent with no glycosylation, signal peptide, or propeptide processing |
| faint higher-molecular-weight bands or a diffuse smear above the main band | reflects a fraction of ARC retained as capsid-like homooligomers or as Ubl/isopeptide-conjugated species that resist full denaturation |
| very weak or absent band in non-neuronal or unstimulated lysates | consistent with ARC's restricted, activity-dependent expression at synapses and the postsynaptic density rather than constitutive expression |
| single sharp band with no doublet | UniProt lists only one ARC isoform, so no alternative-splicing-driven second band is expected |
| slightly shifted mobility in membrane-enriched versus cytosolic fractions | reflects the lipid-anchored (palmitoylated) membrane pool of ARC at the postsynaptic and extracellular vesicle membrane versus the unmodified cytosolic pool |
💡Expected ARC appearanceExpect a single sharp band near the predicted 45 kDa monomer mass, since ARC lacks glycosylation, a signal peptide, or a disulfide-linked dimer interface.
| predicted mass (45.3 kDa) | sets the baseline expected migration for monomeric, unmodified ARC |
| homooligomerization into virion-like capsids | a subpopulation can remain as higher-order oligomers that resist complete SDS/reducing denaturation, appearing as faint bands or smear above the monomer |
| ubiquitin-like (Ubl) conjugation / isopeptide bond modification | covalently modified ARC molecules run higher than the unmodified monomer, sometimes as a faint ladder |
| palmitoylation / lipid anchoring (Lipoprotein) | lipidated, membrane-associated ARC can migrate slightly differently than the unmodified cytosolic pool |
| phosphorylation at Ser260 and Thr278 | may cause a subtle upward mobility shift, though the effect is often below the resolution of standard SDS-PAGE |
| single annotated isoform | no isoform-driven extra bands are expected; additional bands should be attributed to oligomers or nonspecific binding instead |
| Situation | Likely cause | Next action |
|---|---|---|
| Weak or no signal | ARC is an activity-regulated immediate-early gene product with low basal expression outside stimulated neurons | use stimulated neuronal or brain tissue lysate as a positive control rather than resting non-neuronal cell lines |
| No band in lysate | ARC protein is rapidly turned over via ubiquitin-like conjugation and proteasomal degradation when neuronal activity is low | include proteasome inhibitors during lysis and confirm activity-dependent induction before assuming antibody failure |
| Multiple bands | incomplete dissociation of capsid-like homooligomers or a subpopulation of Ubl-conjugated ARC | boil samples longer in fresh reducing sample buffer and treat faint bands above the main band as expected minor species rather than nonspecific signal |
| Band higher than expected | residual homooligomeric capsid assemblies or isopeptide-linked Ubl conjugation not fully resolved by standard denaturation | increase reducing agent concentration and heating time, and consider fresh SDS sample buffer to improve monomer yield |
| Broad smear instead of sharp band | heterogeneous post-translational modification (phosphorylation, palmitoylation, partial oligomer breakdown) producing a range of closely spaced species | use freshly prepared lysate with phosphatase and protease inhibitors and extend gel run time to better resolve the band |
| Fragments below expected size | proteolytic or proteasomal degradation intermediates generated during ARC's normal ubiquitin-mediated turnover | include protease inhibitors, minimize freeze-thaw cycles, and process lysate quickly on ice |
Experiment evidence
Western blot images showing ARC band
PB9753 · ARC
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for ARC Western blot
🧪For positive controls for ARC in Western blot, you can use brain tissue or cultured neurons that have been activity-stimulated, since UniProt evidence places ARC at the synapse and postsynaptic density, a hallmark of neuronal expression.
Positive control: Stimulated neuronal/brain tissue
Negative control: ubiquitously expressed; use siRNA knockdown or KO line
Loading controls: Run GAPDH and β-actin alongside a total-protein stain (e.g., stain-free gel or Ponceau S) as loading controls.
⚠️Feasibility: No HPA expression data exists for ARC, and as an activity-regulated synaptic protein with an extracellular vesicle/secreted membrane pool, a clean positive signal may require stimulated neuronal lysate or conditioned medium rather than resting whole-cell lysate.
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Undetected expression · recommended negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced ARC Western Blot Tips
Deeper troubleshooting and optimisation questions for ARC, answered from its protein features.
Why might ARC run above its predicted 45 kDa mass?
ARC homooligomerizes into virion-like capsids (PubMed:25748042) and carries a palmitoyl lipid anchor plus isopeptide-linked Ubl conjugation, all of which can add apparent mass. Under standard reducing, denaturing SDS-PAGE most protein should resolve as the ~45 kDa monomer; persistent higher bands likely reflect incompletely dissociated capsid oligomers rather than a differently sized proteoform.
Does ARC have isoforms that create extra bands?
UniProt lists only one ARC isoform, so a single ~45 kDa band is expected. Additional bands are more likely explained by homooligomeric capsid assembly, phosphorylation, or Ubl conjugation than by isoform switching, so isoform databases are not a useful first explanation for multi-band patterns.
Is ARC protein induced by neuronal activity?
ARC (activity-regulated cytoskeleton-associated protein) is transcribed and translated as an immediate-early response to neuronal activity, so basal expression in unstimulated tissue or neurons can be very low. Include a stimulated hippocampal/cortical lysate as a positive control and compare stimulated versus resting samples when signal is weak or absent.
How does phosphorylation affect the ARC band?
ARC has two annotated phosphorylation sites, which can produce a subtle upward mobility shift or faint doublet on SDS-PAGE. If band position looks ambiguous, run a phosphatase-treated control lysate alongside the untreated sample; collapse of the upper band to a single lower species confirms a phospho-dependent shift.
What transfer method to use for ARC Western blot?
ARC is a ~45 kDa, membrane- and synapse-associated, lipid-anchored, coiled-coil protein, not a large or highly hydrophobic multi-pass membrane protein. Standard wet (tank) transfer to PVDF, or semi-dry transfer, at conventional voltage/time for a mid-size protein is adequate; extended low-voltage transfers used for very large proteins are unnecessary here.
Should ARC lysates be fully denatured before loading?
Yes. Because ARC self-associates into virion-like capsid homooligomers (PubMed:25748042), incomplete denaturation causes variable amounts of protein to remain in high-molecular-weight oligomeric complexes rather than the ~45 kDa monomer. Heat samples in SDS with a reducing agent (DTT/beta-mercaptoethanol) to ensure quantitation reflects total ARC rather than an oligomer-dependent fraction.
What causes unexpected high-molecular-weight ARC bands?
High-MW bands most plausibly reflect ARC's capsid-forming homooligomerization (PubMed:25748042) or isopeptide-bonded Ubl conjugation, both annotated features of this protein. Confirm by boiling/reducing a duplicate sample longer; true monomer should collapse to ~45 kDa, whereas bands from cross-reactivity or nonspecific aggregation typically will not shift with more stringent denaturation.
Boster reagents
Best ARC Western Blot Antibodies
BosterBio's ARC antibodies are among the best-performing WB antibodies on the market — well cited, thoroughly validated, and orthogonally cross-validated against negative tissues and complementary methods.
Real WB data
Anti-Arc Antibody Picoband®
Cat # PB9753
The recommended anti-ARC antibody is a top-performing, extensively cited reagent validated through rigorous Western blot testing and cross-checked against negative tissue and complementary detection methods, ensuring specific, reproducible ARC detection for confident experimental design.
Which to pick: Only one anti-ARC antibody is catalogued, PB9753, which includes an actual Western blot validation image demonstrating specific ARC detection, making it the clear, ready-to-use choice for your ARC Western blot experiments.
Source: BosterBio ARC gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
References
- UniProt Consortium. UniProt entry Q7LC44.
- Human Protein Atlas. ARC tissue expression.
