CAMKK2 / Calcium/calmodulin-dependent protein kinase kinase 2 · Western blot design guide
Design a Western Blot for CAMKK2
Real validated CAMKK2 Western blot protocols, expected-band and isoform facts, troubleshooting for weak or shifted signal, and recommended anti-CAMKK2 WB antibodies. Everything you need to plan the experiment before you commit precious samples.
Evidence assembled September 2026 · For research use; verify linked source records and product datasheet before use

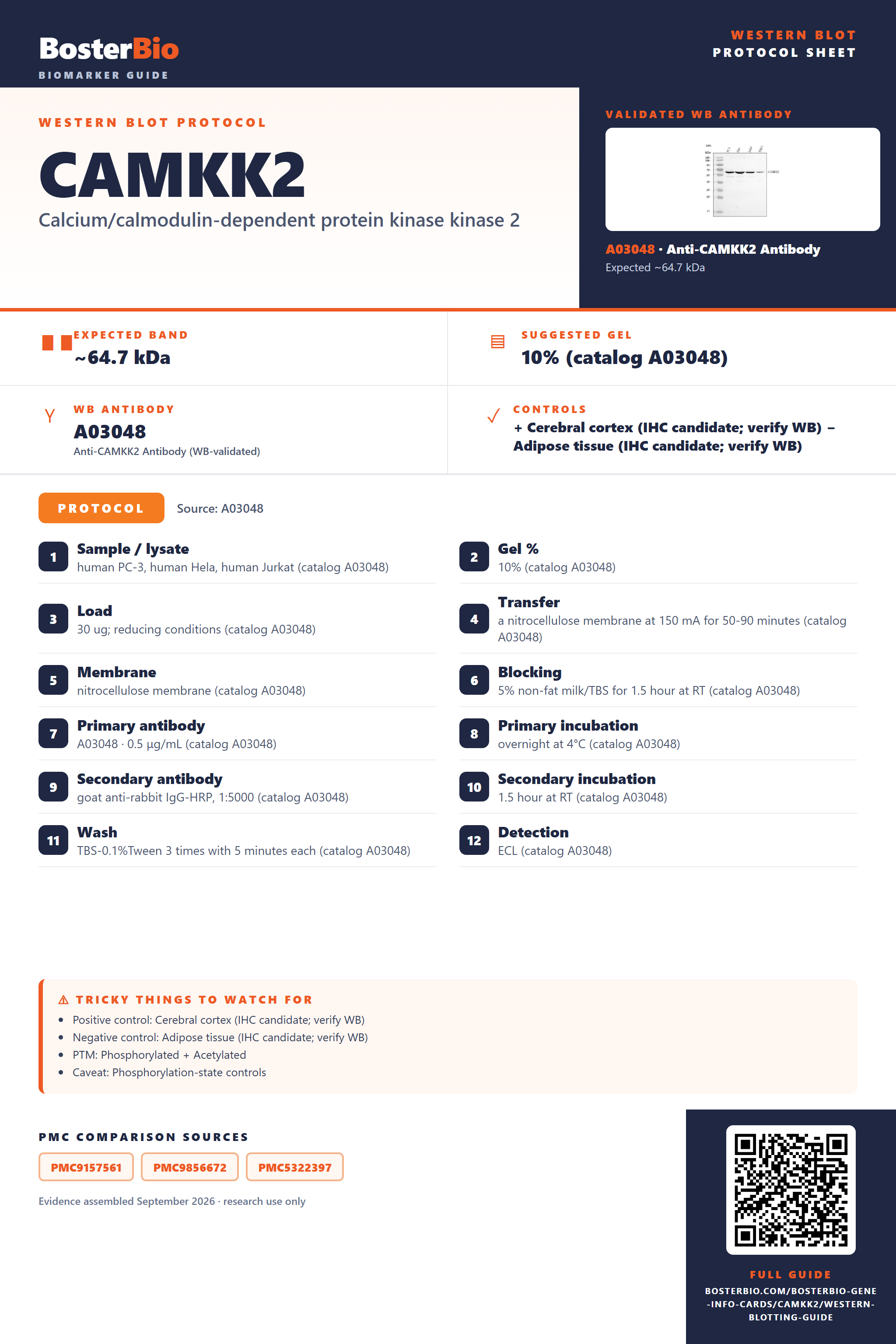

CAMKK2 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | ~64.7 kDa | |
| Observed band | ~65 kDa | |
| Gel | 10% (catalog A03048) | |
| Positive control | Cerebral cortex (IHC candidate; verify WB) +4 more | |
| Negative control | Adipose tissue (IHC candidate; verify WB) |
Important caveats
Reasons your observed band may differ from the expected size.
| PTM | Phosphorylated + Acetylated | |
| Caveat | Phosphorylation-state controls | |
| Gene-set association | MSigDB Hallmark membership | |
| Isoform | 7 isoform(s) |
Section 1
Real Curated CAMKK2 Western Blot Protocols
The A03048 protocol combines labelled catalog values with standard starting conditions. Published comparisons retain their own sample, reagent and detection scope.
| Sample / lysate | human PC-3, human Hela, human Jurkat (catalog A03048) |
| Gel % | 10% (catalog A03048) |
| Load | 30 ug; reducing conditions (catalog A03048) |
| Transfer | a nitrocellulose membrane at 150 mA for 50-90 minutes (catalog A03048) |
| Membrane | nitrocellulose membrane (catalog A03048) |
| Blocking | 5% non-fat milk/TBS for 1.5 hour at RT (catalog A03048) |
| Primary antibody | A03048 · 0.5 μg/mL (catalog A03048) |
| Primary incubation | overnight at 4°C (catalog A03048) |
| Secondary antibody | goat anti-rabbit IgG-HRP, 1:5000 (catalog A03048) |
| Secondary incubation | 1.5 hour at RT (catalog A03048) |
| Wash | TBS-0.1%Tween 3 times with 5 minutes each (catalog A03048) |
| Detection | ECL (catalog A03048) |
Section 2
What Is the Expected CAMKK2 Western Blot Band Size?
CAMKK2 is predicted at 64.7 kDa and observed near 65 kDa; splice isoforms are listed, but their individual band positions are unknown.
| Single band near 65 kDa | Matches the reported CAMKK2 band; predicted mass is 64.7 kDa |
| Additional band at another position | Could reflect an alternative splice isoform; its migration is unverified |
| Several distinct bands | Could reflect isoforms 1 through 7, but band identities require validation |
| Faint band in an unstimulated cytoplasmic fraction | CAMKK2 is predominantly nuclear in unstimulated cells |
💡Expected CAMKK2 appearanceCAMKK2 has a predicted mass of 64.7 kDa and an observed band near 65 kDa in reducing whole-cell blots; confirm band identity with an appropriate specificity control.
| Predicted CAMKK2 mass | 64.7 kDa predicted; the reported band is near 65 kDa |
| Splice isoforms 1 and 2 | May differ in size; their individual masses and migration are unspecified |
| Splice isoforms 3 and 4 | May differ in size; their individual masses and migration are unspecified |
| Splice isoforms 5, 6, and 7 | May differ in size; their individual masses and migration are unspecified |
| Situation | Likely cause | Next action |
|---|---|---|
| No band in lysate | The predominantly nuclear pool may be poorly recovered from unstimulated cells | Check nuclear extraction and use a positive control lysate |
| Band higher than expected | Identity of a band above the reported 65 kDa position is unestablished | Compare with the 65 kDa reference band and verify specificity by CAMKK2 depletion |
| Band lower than expected | An alternative isoform is possible, but its migration is unknown | Verify the band by CAMKK2 depletion and an isoform-aware antibody or transcript assay |
| Multiple bands | Seven splice isoforms are listed, but distinct protein bands are unverified | Check which bands diminish after CAMKK2 depletion |
| Weak or no signal | Unstimulated cells may concentrate CAMKK2 in the nucleus | Check a nuclear fraction and confirm sample loading |
Experiment evidence
Western blot images showing CAMKK2 band
A03048 · CAMKK2
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for CAMKK2 Western blot
🧪HPA-IHC candidate guidance (verify in WB): For positive controls for CAMKK2 in Western blot, you can use cerebral cortex lysate, which has high HPA expression.
Positive control: Cerebral cortex (IHC candidate; verify WB)
Negative control: Adipose tissue (IHC candidate; verify WB)
Loading controls: Run GAPDH, β-actin, and a total-protein stain alongside the samples.
⚠️Feasibility: CAMKK2 is intracellular, and HPA identifies adipose tissue as a feasible negative tissue control.
HPA tissue expression evidence for CAMKK2
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Higher expression tissues · candidate positive controls from IHC
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cerebral cortex | neuronal cells | High | Protein (IHC) | HPA → |
| Esophagus | squamous epithelial cells | High | Protein (IHC) | HPA → |
| Oral mucosa | squamous epithelial cells | High | Protein (IHC) | HPA → |
| Parathyroid gland | glandular cells | High | Protein (IHC) | HPA → |
| Prostate | glandular cells | High | Protein (IHC) | HPA → |
Lower expression tissues · IHC evidence, not confirmed WB-negative controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adipose tissue | adipocytes | Not detected | Protein (IHC) | HPA → |
| Fallopian tube | glandular cells | Not detected | Protein (IHC) | HPA → |
| Seminal vesicle | glandular cells | Not detected | Protein (IHC) | HPA → |
| Skeletal muscle | myocytes | Not detected | Protein (IHC) | HPA → |
| Soft tissue | fibroblasts | Not detected | Protein (IHC) | HPA → |
Section 3
Advanced CAMKK2 Western Blot Tips
Deeper troubleshooting and optimisation questions for CAMKK2, answered from its protein features.
How should CAMKK2 band migration be interpreted?
Band shift · Use the separately labelled calculated mass and catalog-observed evidence above. A sequence annotation does not establish an observed migration shift. Verify target identity with orthogonal controls.
Could CAMKK2 isoforms produce additional bands?
Isoforms · Seven isoforms are listed. Isoforms 4, 5, and 6 lack residues 442–484; isoforms 2, 3, 5, 6, and 7 lack residues 555–588. These differences could affect apparent size, but the features alone do not establish which isoforms produce visible bands. Check which sequence your antibody recognizes.
Yes, depending on its recognized sequence. Residues 442–484 are absent from isoforms 4, 5, and 6, while residues 555–588 are absent from isoforms 2, 3, 5, 6, and 7. Several isoforms also have changes around residues 520–554. Compare the antibody's target sequence with each isoform before interpreting missing or weaker bands.
Yes, depending on its recognized sequence. Residues 442–484 are absent from isoforms 4, 5, and 6, while residues 555–588 are absent from isoforms 2, 3, 5, 6, and 7. Several isoforms also have changes around residues 520–554. Compare the antibody's target sequence with each isoform before interpreting missing or weaker bands.
Which CAMKK2 modifications matter when interpreting a band?
PTM · The supplied UniProt coordinates list N-acetylserine at 2 and phosphoserine at 100, 114, 129, 133, 137, 495, 511, and 572. These annotations alone do not establish a visible band shift. Keep the UniProt numbering explicit when comparing antibody or paper site names.
What does forskolin induction change for CAMKK2 detection?
Induction · CAMKK2 is predominantly nuclear in unstimulated cells and relocalizes to cytoplasm and neurites after forskolin induction. For fractionated samples, compare the relevant compartments under matched conditions. This localization feature does not establish increased total CAMKK2 abundance.
How should transfer be checked for CAMKK2?
Transfer · Standard workflow guidance: verify transfer efficiency for the intended target size before interpreting a weak signal. Use total-protein assessment and optimize transfer for the membrane, gel and apparatus; the labelled catalog values take precedence.
How should blocking be optimized?
Blocking · Standard workflow guidance: follow the A03048 datasheet where specified. Otherwise compare 5% milk or 5% BSA in TBST; for a phospho-specific assay start with BSA. Optimize background and specific signal with matched controls.
How should CAMKK2 be quantified after forskolin treatment?
Quantitation · Because forskolin changes CAMKK2 localization, quantify matched whole-cell samples when assessing total abundance, or quantify nuclear and cytoplasmic fractions separately when assessing redistribution. Interpret fraction changes in light of the documented movement into cytoplasm and neurites.
Why does CAMKK2 run near 65 kDa?
Interpretation · The supplied apparent band is about 65 kDa, close to the predicted 64.7 kDa for the 588-residue canonical sequence. The listed modifications and isoforms do not establish a visible shift.
Compare their positions with the approximately 65 kDa reported band and consider the seven annotated isoforms. Sequence deletions and substitutions may alter apparent size, but these features do not identify an unexpected band by themselves. Check whether the antibody's recognized sequence is retained in the candidate isoform.
Compare their positions with the approximately 65 kDa reported band and consider the seven annotated isoforms. Sequence deletions and substitutions may alter apparent size, but these features do not identify an unexpected band by themselves. Check whether the antibody's recognized sequence is retained in the candidate isoform.
Boster reagents
CAMKK2 Western Blot Antibodies
Catalog antibodies with Western blot application and product-specific WB images. Evaluate suitability with the reported sample, controls and experimental conditions.
Real WB data
Anti-CAMKK2 Antibody Picoband®
Cat # A03048
The catalog reports A03048, a rabbit polyclonal anti-CAMKK2 antibody with stated human, mouse, and rat reactivity. Its WB image shows a band near the expected 65 kDa in four human cell lysates; the supplied image does not show mouse or rat samples.
Which to pick: A03048 is the only listed option. Choose it if its stated reactivity fits your sample; the supplied WB image documents PC-3, HeLa, Jurkat, and THP-1 human lysates under the reported conditions. Mouse and rat WB performance is not shown here.
Source: BosterBio CAMKK2 gene-info card — filtered to Western-blot-capable antibodies; each card shows that product's actual WB validation figure.
References
- UniProt Consortium. UniProt entry Q96RR4.
- Human Protein Atlas. CAMKK2 tissue expression.
- PMC9157561 — target-verified WB comparison
- PMC9856672 — target-verified WB comparison
- PMC5322397 — target-verified WB comparison
