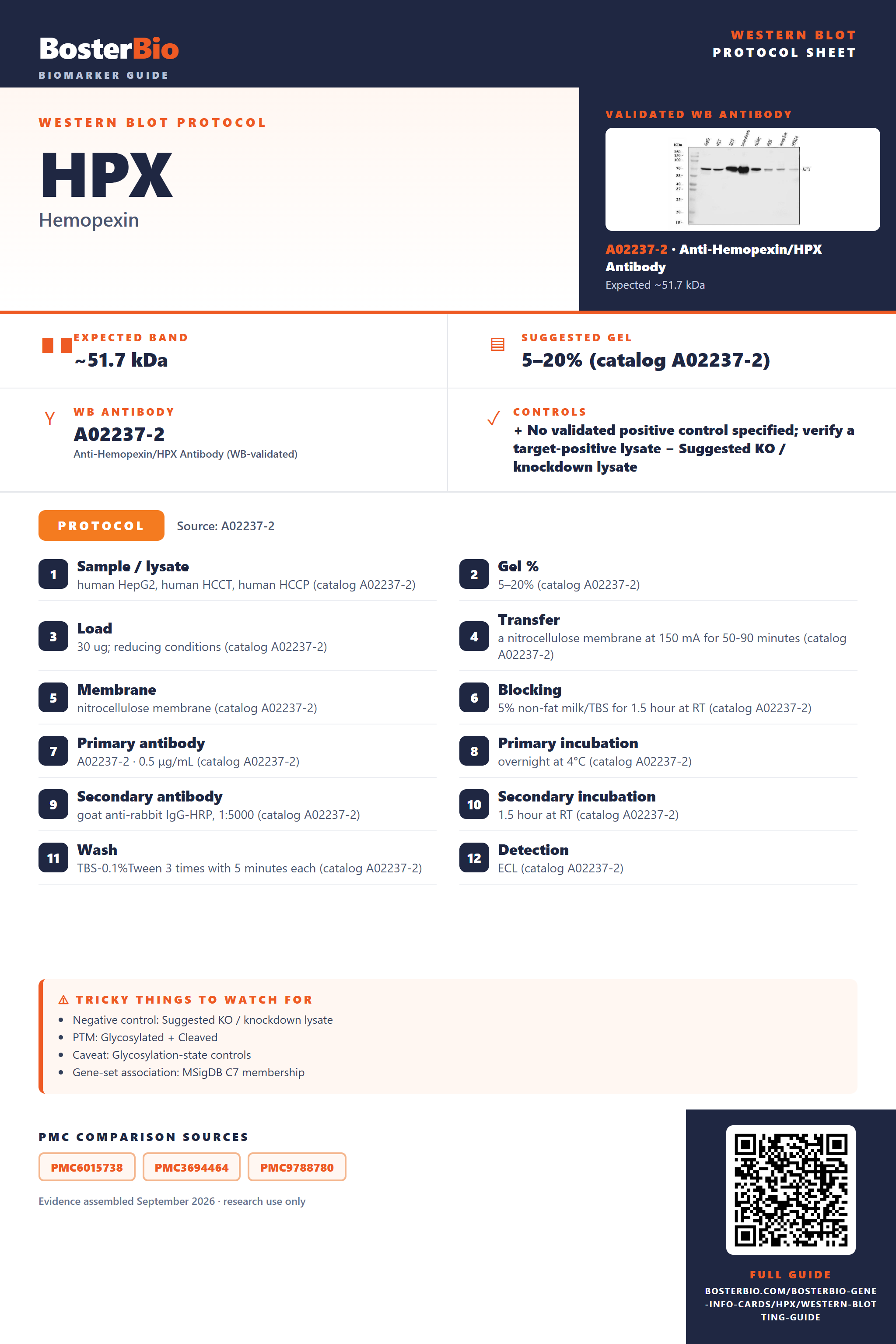

Design a Western Blot for HPX

Band shift · Use the separately labelled calculated mass and catalog-observed evidence above. A sequence annotation does not establish an observed migration shift. Verify target identity with orthogonal controls.

Isoforms · The supplied record lists one isoform and no alternative sequence. It therefore provides no annotated isoform basis for assigning a second band. Assess additional bands using the documented processing and glycosylation features without identifying their cause from size alone.

PTM · UniProt lists O-linked threonines at 24 and 29 and N-linked asparagines at 64, 187, 240, 246 and 453. These are UniProt sequence coordinates. Glycosylation may affect migration, but the site list does not establish a specific band shift.

Induction · No general induction response is established by this guide. A pathway or gene-set association is not evidence of induction in a particular specimen. Verify the relevant treatment and control in a target-specific experiment.

Transfer · Standard workflow guidance: verify transfer efficiency for the intended target size before interpreting a weak signal. Use total-protein assessment and optimize transfer for the membrane, gel and apparatus; the labelled catalog values take precedence.

Blocking · Standard workflow guidance: follow the A02237-2 datasheet where specified. Otherwise compare 5% milk or 5% BSA in TBST; for a phospho-specific assay start with BSA. Optimize background and specific signal with matched controls.

Quantitation · Use the same sample preparation and band selection across the samples being compared. HPX is secreted and has annotated glycosylation and disulfide bonds, so document the sample fraction and reducing conditions. The supplied features do not establish that every HPX-containing band has the same identity.

Interpretation · The 51.7 kDa prediction is based on the protein sequence, while approximately 72 kDa is the supplied apparent Western blot band. HPX has a signal peptide at residues 1–23 and seven annotated glycosylation sites. These features are relevant when interpreting migration, but the annotations alone do not establish the cause or size of the observed difference.

HPX has an annotated signal peptide at residues 1–23 and is secreted. The 51.7 kDa predicted mass refers to the supplied full sequence; signal peptide processing is relevant when comparing it with a mature protein band. The supplied features do not specify the processed protein’s measured mass.

HPX is annotated as secreted, so a sample’s extracellular fraction is relevant when planning detection. Its signal peptide spans residues 1–23. The supplied features do not establish how much HPX will be present in any particular sample.

UniProt annotates six disulfide bonds in HPX. Compare reducing and nonreducing preparations if migration differs between protocols, and keep preparation conditions consistent across lanes. The annotation does not predict a particular band pattern or shift.

Compare them with the approximately 72 kDa observed band and check whether sample preparation differs. HPX has a signal peptide, seven glycosylation sites and six disulfide bonds, all relevant to interpretation. The supplied features do not identify any particular additional band.
