|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates, cell lysates, serum and plasma (heparin, EDTA).|
Data & Images
|Product Name||Mouse RAGE PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Mouse RAGE. 96wells/kit, with removable strips.|
|Cite This Product||Mouse RAGE PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0828)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Immunogen||Expression system for standard: NSO; Immunogen sequence: Q24-A342|
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates, cell lysates, serum and plasma (heparin, EDTA).
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from rat|
|Detection Antibody||polyclonal antibody from goat|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK0828-CAP||96-well plate precoated with anti-Mouse Ager antibody||1|
|EK0828-ST||lyophilized recombinant Mouse Ager standard||10ng/tubex2|
|EK0828-DA||biotinylated anti-Mouse Ager antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- Microplate reader in standard size.
- Automated plate washer.
- Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- Clean tubes and Eppendorf tubes.
- Washing buffer (neutral PBS or TBS).
- Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g NaCl; 450μl of purified acetic acid or 700μl of concentrated hydrochloric acid to 1000ml H2
- Preparation of 0.01 M PBS: Add 8.5g sodium chloride, 1.4g Na O and adjust pH to 7.2-7.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Protein Name||Advanced glycosylation end product-specific receptor|
|Molecular Weight||42669 MW|
|Protein Function||Mediates interactions of advanced glycosylation end products (AGE). These are nonenzymatically glycosylated proteins which accumulate in vascular tissue in aging and at an accelerated rate in diabetes. Acts as a mediator of both acute and chronic vascular inflammation in conditions such as atherosclerosis and in particular as a complication of diabetes. AGE/RAGE signaling plays an important role in regulating the production/expression of TNF- alpha, oxidative stress, and endothelial dysfunction in type 2 diabetes. Interaction with S100A12 on endothelium, mononuclear phagocytes, and lymphocytes triggers cellular activation, with generation of key proinflammatory mediators. Interaction with S100B after myocardial infarction may play a role in myocyte apoptosis by activating ERK1/2 and p53/TP53 signaling. Can also bind oligonucleotides. Receptor for amyloid beta peptide. Contributes to the translocation of amyloid-beta peptide (ABPP) across the cell membrane from the extracellular to the intracellular space in cortical neurons. ABPP-initiated RAGE signaling, especially stimulation of p38 mitogen-activated protein kinase (MAPK), has the capacity to drive a transport system delivering ABPP as a complex with RAGE to the intraneuronal space. RAGE-dependent signaling in microglia contributes to neuroinflammation, amyloid accumulation, and impaired learning/memory in a mouse model of Alzheimer disease. .|
|Tissue Specificity||Expressed at higher levels in the coronary arterioles in type 2 diabetic mice (at protein level). Endothelial cells. .|
|Sequence Similarities||Contains 2 Ig-like C2-type (immunoglobulin-like) domains.|
|Subcellular Localization||Membrane; Single-pass type I membrane protein.|
|Alternative Names||Advanced glycosylation end product-specific receptor;Receptor for advanced glycosylation end products;Ager;Rage;|
|Research Areas|||neuroscience|neurology process|neurodegenerative disease|alzheimer's disease|amyloid| neuroscience|sensory system|visual system| cardiovascular|atherosclerosis|diabetes associated|vascular inflammation|inflammatory mediators||
Background for Advanced glycosylation end product-specific receptor
Mouse RAGE PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|
To assay reproducibility, three samples with differing target protein concentrations were assayed using four different lots.
|Lots||Lot1 (pg/ml)||Lot2 (pg/ml)||Lot3 (pg/ml)||Lot4 (pg/ml)||Mean (pg/ml)||Standard Deviation||CV (%)|

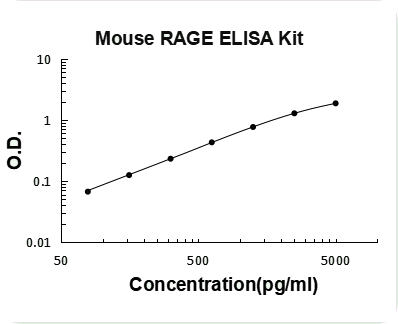

Typical Data Obtained from Mouse RAGE PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 20-25min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
