Anti-PSF2/GINS2 Antibody Picoband®

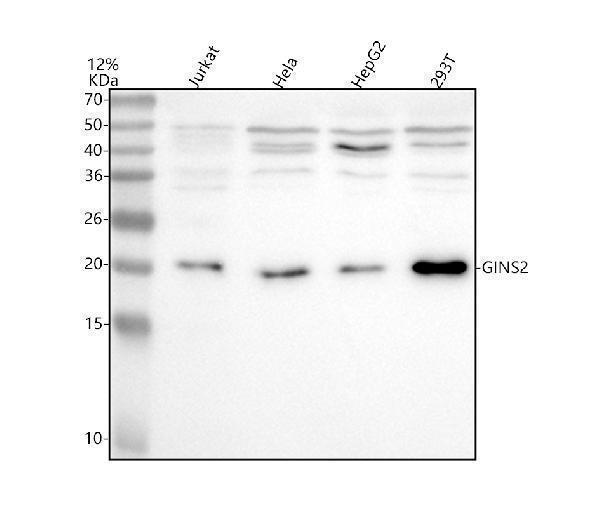

Western blot analysis of PSF2/GINS2 using anti-PSF2/GINS2 antibody (A09943-3).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human HepG2 whole cell lysates,
Lane 4: human 293T whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-PSF2/GINS2 antigen affinity purified polyclonal antibody (Catalog # A09943-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for PSF2/GINS2 at approximately 21 kDa. The expected band size for PSF2/GINS2 is at 21 kDa.

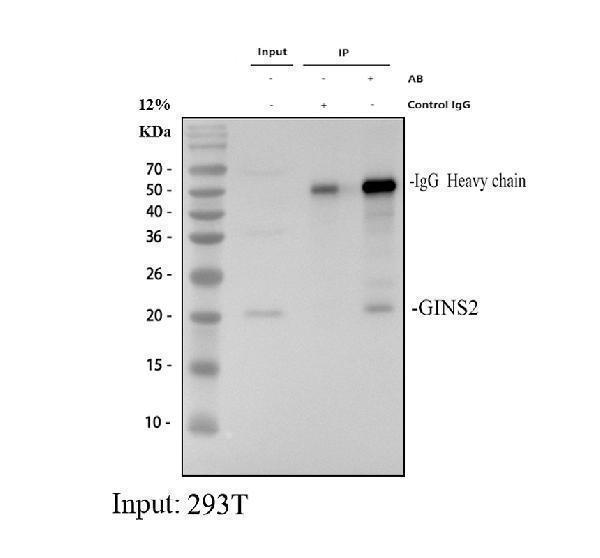

Immunoprecipitating (IP) PSF2/GINS2 in 293T whole cell lysate.
Western blot analysis of PSF2/GINS2 using anti-PSF2/GINS2 antibody (A09943-3);
Lane 1: 293T whole cell lysates (30ug);
Lane 2: Rabbit control IgG instead of anti-PSF2/GINS2 antibody in 293T whole cell lysate;
Lane 3: anti-PSF2/GINS2 antibody (2μg) + 293T whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-PSF2/GINS2 antigen affinity purified polyclonal antibody (A09943-3) at a dilution of 0.5 μg/mL and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1196-200). A specific band was detected for PSF2/GINS2 at approximately 21 kDa. The expected band size for PSF2/GINS2 is at 21 kDa.

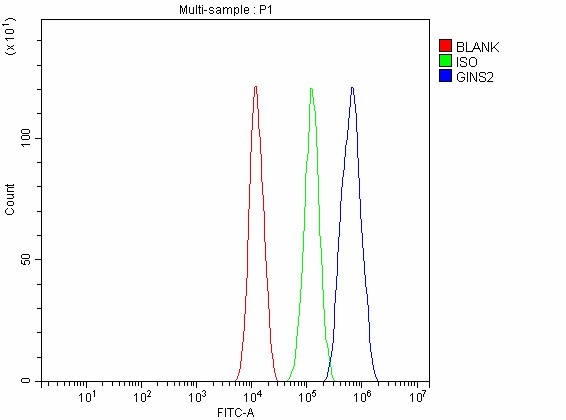

Flow Cytometry analysis of A549 cells using anti-PSF2/GINS2 antibody (A09943-3).
Overlay histogram showing A549 cells stained with A09943-3 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PSF2/GINS2 Antibody (A09943-3, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

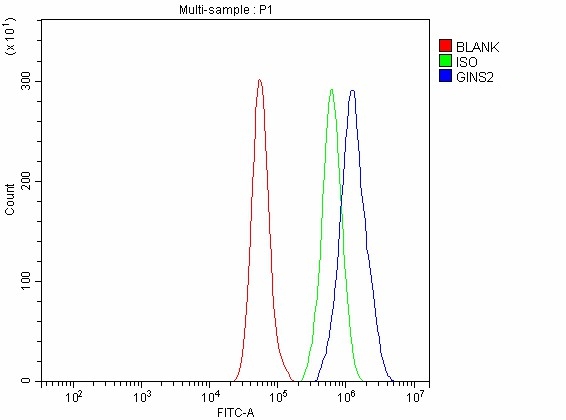

Flow Cytometry analysis of JK cells using anti-PSF2/GINS2 antibody (A09943-3).
Overlay histogram showing JK cells stained with A09943-3 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PSF2/GINS2 Antibody (A09943-3, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
