Anti-PSME1 Antibody Picoband®

Western blot analysis of PSME1 using anti-PSME1 antibody (A04638-2).
Electrophoresis was performed on a 12% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Raji whole cell lysates,
Lane 2: human MCF-7 whole cell lysates,
Lane 3: human Jurkat cells whole cell lysates,
Lane 4: rat liver tissue lysates,
Lane 5: rat spleen tissue lysates,
Lane 6: mouse liver tissue lysates,
Lane 7: mouse spleen tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-PSME1 antigen affinity purified polyclonal antibody (A04638-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for PSME1 at approximately 29 kDa. The expected band size for PSME1 is at 29 kDa.

IHC analysis of PSME1 using anti-PSME1 antibody (A04638-2).
PSME1 was detected in a paraffin-embedded section of human breast cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-PSME1 Antibody (A04638-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IF analysis of PSME1 using anti-PSME1 antibody (A04638-2).
PSME1 was detected in an immunocytochemical section of U2OS cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-PSME1 Antibody (A04638-2) overnight at 4°C. Fluoro488 Conjugated Goat Anti-Rabbit IgG (BA127) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

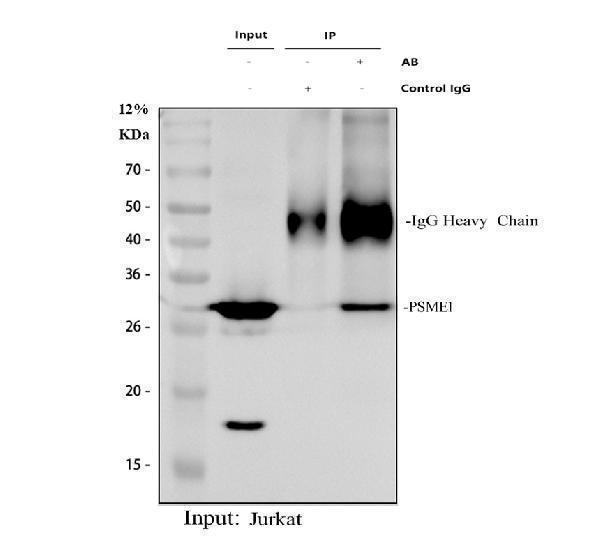

Immunoprecipitating (IP) PSME1 in Jurkat whole cell lysate.
Western blot analysis of PSME1 using anti-PSME1 antibody (A04638-2);
Lane 1: Jurkat whole cell lysates (30ug);
Lane 2: Rabbit control IgG instead of anti-PSME1 antibody in Jurkat whole cell lysate;
Lane 3: anti-PSME1 antibody (2μg) + Jurkat whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-PSME1 antigen affinity purified polyclonal antibody (A04638-2) at a dilution of 0.5 μg/mL and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1196-200). A specific band was detected for PSME1 at approximately 29 kDa. The expected band size for PSME1 is at 29 kDa.

Flow Cytometry analysis of Raji cells using anti-PSME1 antibody (A04638-2).
Overlay histogram showing Raji cells stained with A04638-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PSME1 Antibody (A04638-2, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
