MKI67 · Western blot design guide
MKI67 Western Blot Planning Guide
Plan a MKI67 Western blot around the catalog-observed 358.7 kDa band, image-backed M00254-9 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
MKI67 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 358.7 kDa observed | |
| Observed band | 358.7 kDa observed | |
| Gel | 4-12% gradient | |
| Positive control | Skin | |
| Negative control | Caudate |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 358.7 kDa |
| ⓘ | Localization | Chromosome / Nucleus |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1

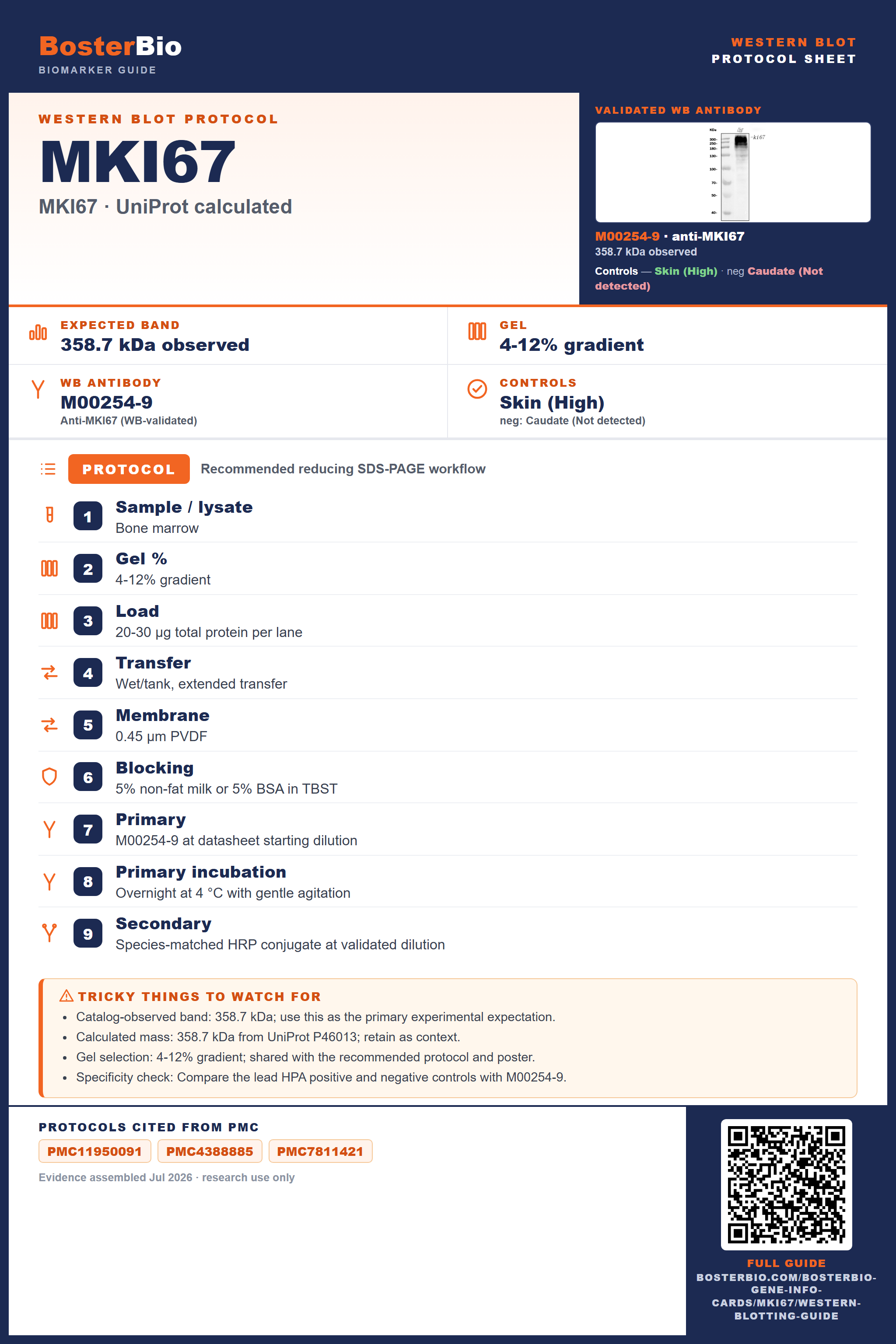

Real Curated MKI67 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Bone marrow |
| Gel % | 4-12% gradient |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | M00254-9 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected MKI67 Western Blot Band Size?
Use the product-observed 358.7 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 358.7 kDa | Matches the authoritative product WB observation. |
| 358.7 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected MKI67 appearancePlan around 358.7 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 358.7 kDa; use this as the primary experimental expectation. |
| Calculated mass | 358.7 kDa from UniProt P46013; retain as context. |
| Gel selection | 4-12% gradient; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with M00254-9. |
| Situation | Likely cause | Next action |
|---|---|---|
| 358.7 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing MKI67 band
M00254-9 · MKI67Observed 358.7 kDa · product-specific WB image
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for MKI67 Western blot
🧪Use Skin as the first positive-control candidate and retain an orthogonal negative control.
Positive control: Skin (High)
Negative control: Caudate (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for MKI67
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Skin | Reported tissue cells | High | Protein (HPA) | HPA → |
| Bone marrow | Reported tissue cells | High | Protein (HPA) | HPA → |
| Lymph node | Reported tissue cells | High | Protein (HPA) | HPA → |
| Rectum | Reported tissue cells | High | Protein (HPA) | HPA → |
Section 3
Advanced MKI67 Western Blot Tips
Deeper troubleshooting and optimisation questions for MKI67, answered from its protein features.
Which band should guide the blot?
Use 358.7 kDa, the observation attached to the authoritative M00254-9 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 358.7 kDa expectation.
Which positive control should I start with?
Start with Skin, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Caudate as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 4-12% gradient consistently across the quick facts, protocol table, and poster.
What transfer method to use for MKI67 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should M00254-9 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
MKI67 Western Blot Reagents
Human-reactive MKI67 Western blot reagents with authoritative product imagery.
Real WB data
Anti-Ki67 Antibody Picoband® (monoclonal, 5C7)
Cat # M00254-9
Real WB data
Anti-Ki67/MKI67 Antibody Picoband®
Cat # PA1918
Real WB data
Anti-Ki67/MKI67 Antibody Picoband®
Cat # PB9026
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
