Anti-GFM1 Antibody Picoband®

Western blot analysis of GFM1 using anti-GFM1 antibody (A07185-2).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human A431 whole cell lysates,
Lane 2: human SiHa whole cell lysates,
Lane 3: human Caco-2 whole cell lysates,
Lane 4: human A549 whole cell lysates,
Lane 5: rat liver tissue lysates,
Lane 6: rat brain tissue lysates,
Lane 7: mouse liver tissue lysates,
Lane 8: mouse brain tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-GFM1 antigen affinity purified polyclonal antibody (A07185-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for GFM1 at approximately 83 kDa. The expected band size for GFM1 is at 83 kDa.

IHC analysis of GFM1 using anti-GFM1 antibody (A07185-2).
GFM1 was detected in a paraffin-embedded section of human placenta tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-GFM1 Antibody (A07185-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IF analysis of GFM1 using anti-GFM1 antibody (A07185-2).
GFM1 was detected in an immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-GFM1 Antibody (A07185-2) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

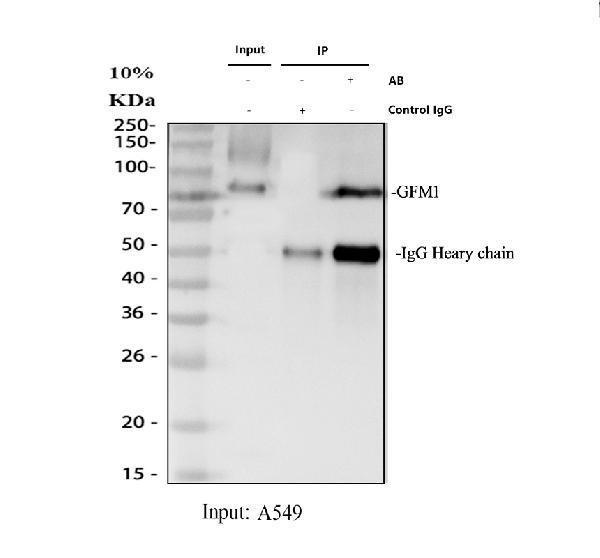

Immunoprecipitating GFM1 in A549 whole cell lysate.
Western blot analysis of GFM1 using anti-GFM1 antibody (A07185-2).
Lane 1: A549 whole cell lysates (30ug),
Lane 2: Rabbit control IgG instead of anti-GFM1 antibody in A549 whole cell lysate,
Lane 3: anti-GFM1 antibody (2μg) + A549 whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GFM1 antigen affinity purified polyclonal antibody (A07185-2) at a dilution of 0.5 μg/mL and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GFM1 at approximately 83 kDa. The expected band size for GFM1 is at 83 kDa.
