Product Info Summary
| SKU: | AZQ6IQN6 |
|---|---|
| Size: | 100 μg/vial |
| Reactive Species: | Zebrafish |
| Host: | Rabbit |
| Application: | IF, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-Zebrafish ATP5G1/2/3 Antibody Picoband®
View all ATP5MC1/ATP5MC2/ATP5MC3 Antibodies
SKU/Catalog Number
AZQ6IQN6
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-Zebrafish ATP5G1/2/3 Antibody Picoband® catalog # AZQ6IQN6. Tested in WB, IHC, IF applications. This antibody reacts with Zebrafish. The brand Picoband indicates this is a premium antibody that guarantees superior quality, high affinity, and strong signals with minimal background in Western blot applications. Only our best-performing antibodies are designated as Picoband, ensuring unmatched performance.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-Zebrafish ATP5G1/2/3 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # AZQ6IQN6)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Immunogen
E.coli-derived zebrafish ATP5G1/2/3 recombinant protein (Position: D64-L115).
Reactive Species
AZQ6IQN6 is reactive to ATP5MC1/ATP5MC2/ATP5MC3 in Zebrafish
Observed Molecular Weight
10 kDa
Background of ATP5MC1/ATP5MC2/ATP5MC3
The ATP5MC1 gene is one of three human paralogs that encode membrane subunit c of the mitochondrial ATP synthase. It is mapped to 17q21.32. This gene encodes a subunit of mitochondrial ATP synthase. Mitochondrial ATP synthase catalyzes ATP synthesis, utilizing an electrochemical gradient of protons across the inner membrane during oxidative phosphorylation. ATP synthase is composed of two linked multi-subunit complexes: the soluble catalytic core, F1, and the membrane-spanning component, Fo, comprising the proton channel. The catalytic portion of mitochondrial ATP synthase consists of 5 different subunits (alpha, beta, gamma, delta, and epsilon) assembled with a stoichiometry of 3 alpha, 3 beta, and a single representative of the other 3. The proton channel seems to have nine subunits (a, b, c, d, e, f, g, F6 and 8). This gene is one of three genes that encode subunit c of the proton channel. Each of the three genes have distinct mitochondrial import sequences but encode the identical mature protein. Alternatively spliced transcript variants encoding the same protein have been identified.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Application & Images
Applications
AZQ6IQN6 is guaranteed for IF, IHC, WB Boster Guarantee
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.25-0.5 μg/ml, Zebrafish
Immunohistochemistry(Paraffin-embedded Section), 2-5 μg/ml, Zebrafish
Immunofluorescence, 5 μg/ml, Zebrafish
Positive Control
IF: zebrafish embryo tissue
WB: zebrafish head tissue, female zebrafish viscera tissue, male zebrafish viscera tissue, whole zebrafish tissue, zebrafish embryo tissue
IHC: zebrafish brain tissue
Validation Images & Assay Conditions
Click image to see more details

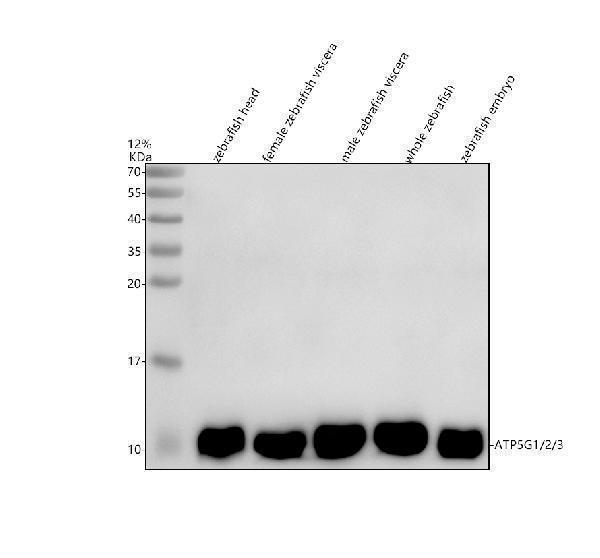

Western blot analysis of ATP5G1/2/3 using anti-ATP5G1/2/3 antibody (AZQ6IQN6).
Electrophoresis was performed on a 12% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: zebrafish head tissue lysates,
Lane 2: female zebrafish viscera tissue lysates,
Lane 3: male zebrafish viscera tissue lysates,
Lane 4: whole zebrafish tissue lysates,
Lane 5: zebrafish embryo tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-ATP5G1/2/3 antigen affinity purified polyclonal antibody (AZQ6IQN6) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for ATP5G1/2/3 at approximately 10 kDa. The expected band size for ATP5G1/2/3 is at 10 kDa.
Click image to see more details
IHC analysis of ATP5G1/2/3 using anti-ATP5G1/2/3 antibody (AZQ6IQN6).
ATP5G1/2/3 was detected in a paraffin-embedded section of zebrafish brain tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-ATP5G1/2/3 Antibody (AZQ6IQN6) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
IF analysis of ATP5G1/2/3 using anti-ATP5G1/2/3 antibody (AZQ6IQN6).
ATP5G1/2/3 was detected in paraffin-embedded section of zebrafish embryo tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 5μg/mL rabbit anti-ATP5G1/2/3 Antibody (AZQ6IQN6) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
