Anti-DDI2 Antibody Picoband®

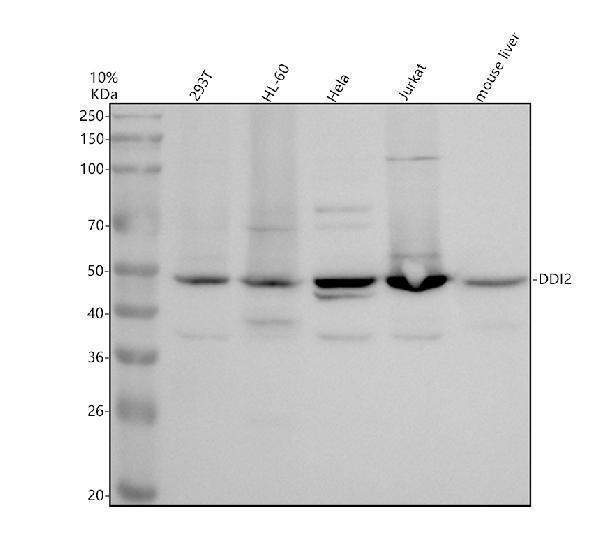

Western blot analysis of DDI2 using anti-DDI2 antibody (A12277-1).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human HL-60 whole cell lysates,
Lane 3: human Hela whole cell lysates,
Lane 4: human Jurkat whole cell lysates,
Lane 5: mouse liver tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-DDI2 antigen affinity purified polyclonal antibody (A12277-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for DDI2 at approximately 50 kDa. The expected band size for DDI2 is at 45 kDa.

IF analysis of DDI2 using anti-DDI2 antibody (A12277-1) and anti-Alpha Tubulin antibody (M03989-3).
DDI2 was detected in an immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-DDI2 Antibody (A12277-1) and mouse anti-Alpha Tubulin antibody (M03989-3) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) and Fluoro488 Conjugated Goat Anti-Mouse IgG (BA1126) were used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

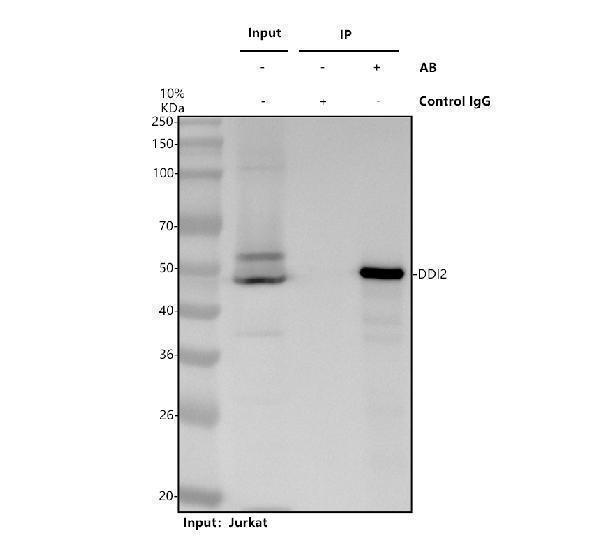

Immunoprecipitating DDI2 in Jurkat whole cell lysate.
Western blot analysis of DDI2 using anti-DDI2 antibody (A12277-1).
Lane 1: Jurkat whole cell lysates (30ug),
Lane 2: Rabbit control IgG instead of anti-DDI2 antibody in Jurkat whole cell lysate,
Lane 3: anti-DDI2 antibody (2μg) + Jurkat whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-DDI2 antigen affinity purified polyclonal antibody (A12277-1) at a dilution of 0.5 μg/mL and probed with a mouse anti-rabbit IgG-HRP secondary antibody (Catalog # BM2007). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for DDI2 at approximately 50 kDa. The expected band size for DDI2 is at 45 kDa.

Flow Cytometry analysis of 293T cells using anti-DDI2 antibody (A12277-1).
Overlay histogram showing 293T cells stained with A12277-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-DDI2 Antibody (A12277-1, 1 μg/1x10⁶ cells) for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
