Anti-TIP49A/RUVBL1 Antibody Picoband®

Western blot analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human K562 whole cell lysates,
Lane 2: human 293T whole cell lysates,
Lane 3: human HT1080 whole cell lysates,
Lane 4: monkey COS-7 whole cell lysates,
Lane 5: human MCF-7 whole cell lysates,
Lane 6: human Daudi whole cell lysates,
Lane 7: human MOLT-4 whole cell lysates,
Lane 8: human HEL whole cell lysates,
Lane 9: rat testis tissue lysates,
Lane 10: rat C6 whole cell lysates,
Lane 11: mouse testis tissue lysates,
Lane 12: mouse NIH/3T3 whole cell lysates.
red to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TIP49A/RUVBL1 antigen affinity purified polyclonal antibody (Catalog # A02049-2) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TIP49A/RUVBL1 at approximately 54 kDa. The expected band size for TIP49A/RUVBL1 is at 50 kDa.

IHC analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human colorectal adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IHC analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human thyroid cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IHC analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human lung adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IHC analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human spleen tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IHC analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human tonsil tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IHC analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human ovarian cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.

IF analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in an immunocytochemical section of A549 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 μg/mL rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

IF analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2).
TIP49A/RUVBL1 was detected in a paraffin-embedded section of human colon cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 5 μg/mL rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2) overnight at 4°C. Cy3 Conjugated Goat Anti-Rabbit IgG (BA1032) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

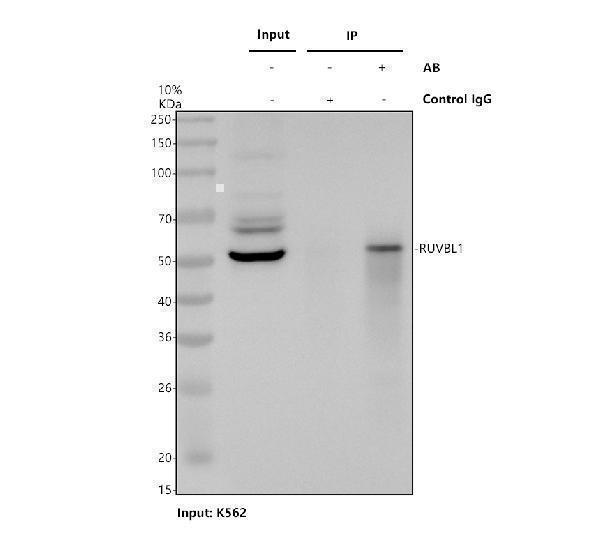

Immunoprecipitating (IP) TIP49A/RUVBL1 in K562 whole cell lysate.
Western blot analysis of TIP49A/RUVBL1 using anti-TIP49A/RUVBL1 antibody (A02049-2);
Lane 1: K562 whole cell lysates (30ug);
Lane 2: Rabbit control IgG instead of anti-TIP49A/RUVBL1 antibody in K562 whole cell lysate;
Lane 3: anti-TIP49A/RUVBL1 antibody (2μg) + K562 whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-TIP49A/RUVBL1 antigen affinity purified polyclonal antibody (A02049-2) at a dilution of 0.5 μg/mL and probed with a goat anti-rabbit IgG-HRP secondary antibody (Light Chian). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1196-200). A specific band was detected for TIP49A/RUVBL1 at approximately 54 kDa. The expected band size for TIP49A/RUVBL1 is at 50 kDa.

Flow Cytometry analysis of Hela cells using anti-TIP49A/RUVBL1 antibody (A02049-2).
Overlay histogram showing Hela cells stained with A02049-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TIP49A/RUVBL1 Antibody (A02049-2, 1 μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
