CD2AP antibody (M01756) performs well in Flow Cytometry, IF, IHC, ICC, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

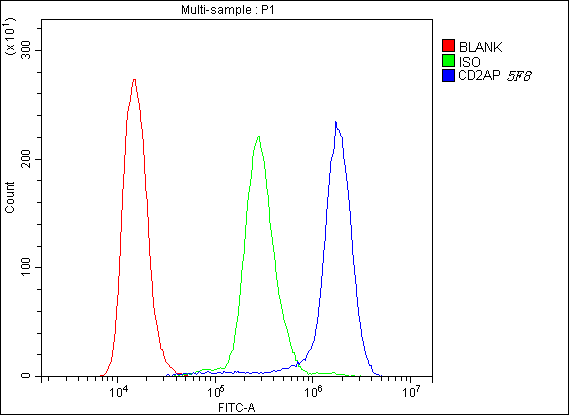

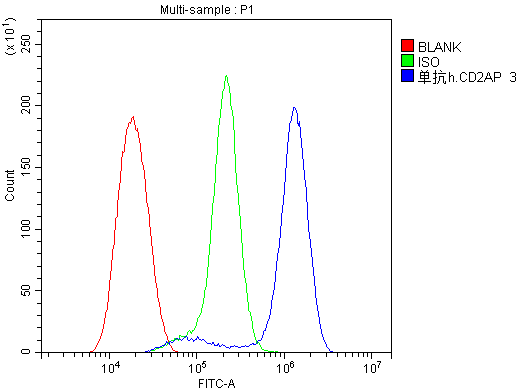

Flow Cytometry analysis of U20S cells using anti-CD2AP antibody (M01756).
Overlay histogram showing U20S cells stained with M01756 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-CD2AP Antibody (M01756,1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Overlay histogram showing U20S cells stained with M01756 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-CD2AP Antibody (M01756,1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Bundle Save
Anti-CD2AP Antibody Picoband® (monoclonal, 5F8)
CD2AP antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Mouse | Flow Cytometry, IF, IHC, ICC, WB |
Tested Applications

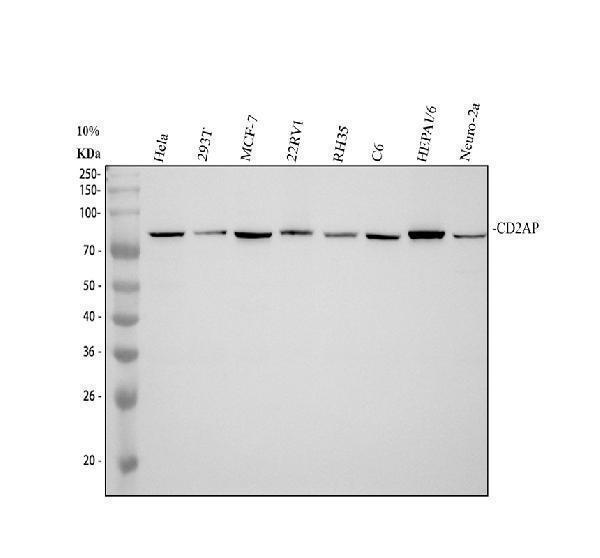

CD2AP antibody was positively detected by WB in:
human Hela whole cell, human 293T whole cell, human MCF-7 whole cell, human 22RV1 whole cell, rat RH35 whole cell, rat C6 whole cell, mouse HEPA1/6 whole cell, mouse Neuro-2a whole cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
CD2AP antibody was positively detected by IHC in:
human mammary cancer, human mammary cancer, human colon cancer, human placenta tissue, mouse kidney tissue, rat brain tissue
Use TE buffer pH 9.0 for antigen retrieval; (*) citrate buffer pH 6.0 is an alternative.
CD2AP antibody was positively detected by ICC in:
A431 cell
CD2AP antibody was positively detected by FC in:
K562 cell, U20S cell
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml
Immunohistochemistry (Paraffin-embedded Section)
0.5-1μg/ml
Immunocytochemistry/Immunofluorescence
5 μg/ml
Flow Cytometry (Fixed)
1-3μg/1x106 cells
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Note: For flow cytometry (FCM), validated for fixed cells only. Not validated for FACS or surface flow cytometry using live cells.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
IHC
IF
Human
Tested
Tested
Recommend
Rat
Tested
Tested
Recommend
Mouse
Tested
Tested
Recommend
Bovine
Predicted
Predicted
Predicted
Sheep
Predicted
Predicted
Predicted
Monkey
Predicted
Predicted
Predicted
Rabbit
Predicted
Predicted
Predicted
Product Information
Product Name
Anti-CD2AP Antibody Picoband® (monoclonal, 5F8)
View all CD2AP Antibodies
View all CD2AP Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Mouse
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Monoclonal
Clone Number
5F8
Isotype
Mouse IgG1
Immunogen
E. coli-derived human CD2AP recombinant protein (Position: K253-K337).
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500μg/ml.
Observed Molecular Weight
80 kDa
Calculated Molecular Weight
71.5 kDa
Background of CD2AP
CD2-associated protein is a protein that in humans is encoded by the CD2AP gene. This gene encodes a scaffolding molecule that regulates the actin cytoskeleton. The protein directly interacts with filamentous actin and a variety of cell membrane proteins through multiple actin binding sites, SH3 domains, and a proline-rich region containing binding sites for SH3 domains. The cytoplasmic protein localizes to membrane ruffles, lipid rafts, and the leading edges of cells. It is implicated in dynamic actin remodeling and membrane trafficking that occurs during receptor endocytosis and cytokinesis. Haploinsufficiency of this gene is implicated in susceptibility to glomerular disease.
Cite This Product
Anti-CD2AP Antibody Picoband® (monoclonal, 5F8) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M01756)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Cow
95%
High Homology
Sheep
95%
High Homology
Monkey
95%
High Homology
Rabbit
94%
High Homology
Dog
89%
Moderate Homology
Mouse
87%
Moderate Homology
Rat
85%
Moderate Homology
Zebrafish
53%
Low homology
Drosophila
35%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
