PTPRN antibody (A03116-1) performs well in ELISA, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

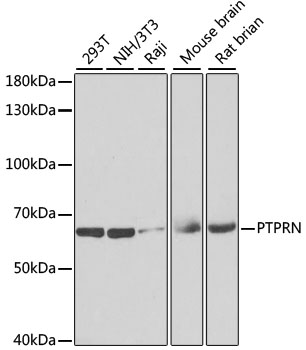

Western blot analysis of IA-2/PTPRN using anti-IA-2/PTPRN antibody (A03116-1).
Electrophoresis was performed on a 8% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human U20S whole cell lysates,
Lane 3: human SH-SY5Y whole cell lysates,
Lane 4: human Hacat whole cell lysates,
Lane 5: rat brain tissue lysates,
Lane 6: rat kidney tissue lysates,
Lane 7: mouse brain tissue lysates,
Lane 8: mouse kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-IA-2/PTPRN antigen affinity purified polyclonal antibody (A03116-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for IA-2/PTPRN at approximately 106 kDa. The expected band size for IA-2/PTPRN is at 106 kDa.
Electrophoresis was performed on a 8% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human U20S whole cell lysates,
Lane 3: human SH-SY5Y whole cell lysates,
Lane 4: human Hacat whole cell lysates,
Lane 5: rat brain tissue lysates,
Lane 6: rat kidney tissue lysates,
Lane 7: mouse brain tissue lysates,
Lane 8: mouse kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-IA-2/PTPRN antigen affinity purified polyclonal antibody (A03116-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for IA-2/PTPRN at approximately 106 kDa. The expected band size for IA-2/PTPRN is at 106 kDa.
Bundle Save
Anti-IA-2/PTPRN Antibody Picoband®
PTPRN antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | ELISA, WB |
Tested Applications
PTPRN antibody was positively detected by WB in:
human 293T whole cell, human U2OS whole cell, human SH-SY5Y whole cell, human Hacat whole cell, rat brain tissue, rat kidney tissue, mouse brain tissue, mouse kidney tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.25-0.5 μg/ml
Human, Mouse, Rat
ELISA
0.1-0.5 μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
ELISA
Human
Tested
Recommend
Rat
Tested
Recommend
Mouse
Tested
Recommend
Monkey
Predicted
Predicted
Product Information
Product Name
Anti-IA-2/PTPRN Antibody Picoband®
View all PTPRN Antibodies
View all PTPRN Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
At -20°C for one year from date of receipt.
After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months.
Avoid repeated freezing and thawing.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Immunogen
E.coli-derived human IA-2/PTPRN recombinant protein (Position: V35-H569). Human IA-2/PTPRN shares 79.5% amino acid (aa) sequence identity with rat IA-2/PTPRN.
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Calculated Molecular Weight
105.8 kDa
Background of PTPRN
The protein encoded by this gene is a member of the protein tyrosine phosphatase (PTP) family. PTPs are known to be signaling molecules that regulate a variety of cellular processes including cell growth, differentiation, mitotic cycle, and oncogenic transformation. This PTP possesses an extracellular region, a single transmembrane region, and a single catalytic domain, and thus represents a receptor-type PTP. This PTP was found to be an autoantigen that is reactive with insulin-dependent diabetes mellitus (IDDM) patient sera, and thus may be a potential target of autoimmunity in diabetes mellitus. Alternate splicing results in multiple transcript variants.
Cite This Product
Anti-IA-2/PTPRN Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A03116-1)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
96%
High Homology
Rabbit
85%
Moderate Homology
Dog
85%
Moderate Homology
Sheep
85%
Moderate Homology
Cow
84%
Moderate Homology
Mouse
80%
Moderate Homology
Rat
80%
Moderate Homology
Zebrafish
34%
Low homology
Drosophila
25%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for PTPRN antibody
Review
Have you used Anti-IA-2/PTPRN Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-IA-2/PTPRN Antibody Picoband® performs excellently in relevant applications for ELISA, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A03116-1
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
