Anti-NFE2L2 Antibody Picoband®

Western blot analysis of NFE2L2 using anti-NFE2L2 antibody (A00078-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human SW620 whole cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NFE2L2 antigen affinity purified polyclonal antibody (Catalog # A00078-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for NFE2L2 at approximately 100KD. The expected band size for NFE2L2 is at 100KD.

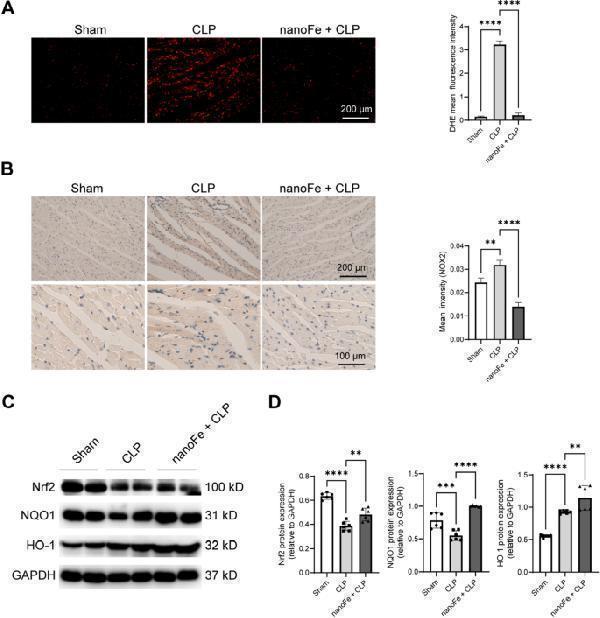

Protective effects of nanoFe treatment on myocardial oxidative stress in septic mice. A Representative photographs of in DHE of mouse heart tissues. B Representative photographs of IHC staining of NOX2. C Representative Western blot images of Nrf2, NQO1, and HO-1. D Quantitative analysis of C was determined with GAPDH for normalization. Statistical analysis of the data was used ANOVA
Index in PubMed under a CC BY license. PMID: 36064371

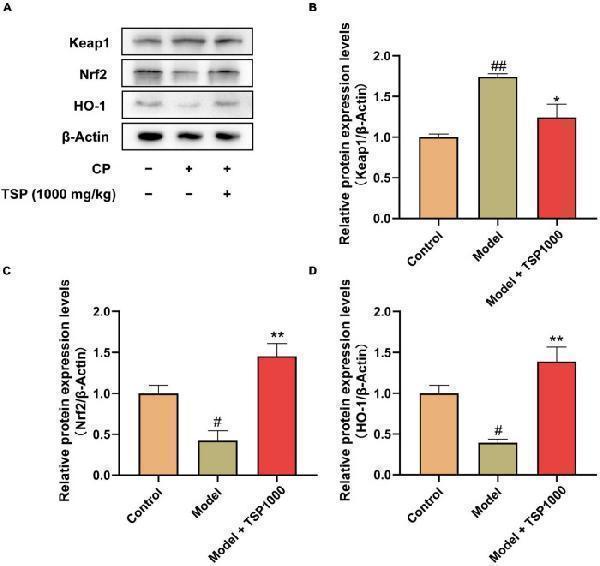

The effects of TSP on the Nrf2/HO-1 signaling pathway. (A) The representative images of western blotting results. (B–D) Quantification of the protein expression of Keap1, Nrf2, and HO-1. All data were expressed as mean ± SEM ( n = 3). # P < 0.05, ## P < 0.01 vs. Control group; * P < 0.05, ** P < 0.01 vs. Model group.
Index in PubMed under a CC BY license. PMID: 35719151

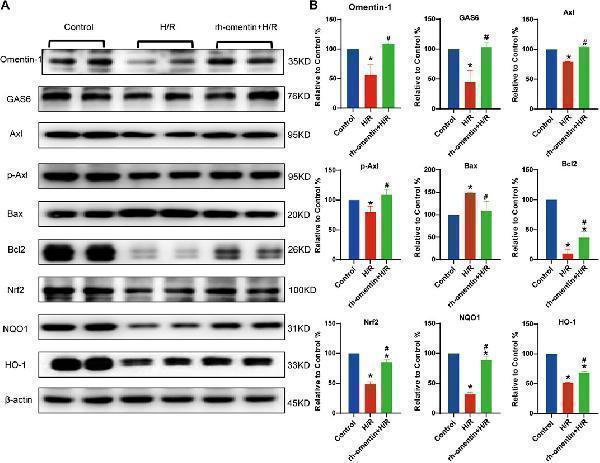

Effect of rh-omentin treatment on oxidative stress molecules, apoptotic molecules, and GAS6/Axl signaling molecules in N2a cells injured by H/R. (A) The representative images of Omentin-1, GAS6, Axl, p-Axl, NQO1, HO-1, Nrf2, Bax, and Bcl2 detected by Western blot. (B) Quantitative analysis of Western blot by normalizing to β-actin. Error bars show the standard deviation for n = 6 measurements from representative experiments. * p < 0.05 vs. the Control group; # p < 0.05 vs. the H/R group.
Index in PubMed under a CC BY license. PMID: 35141232

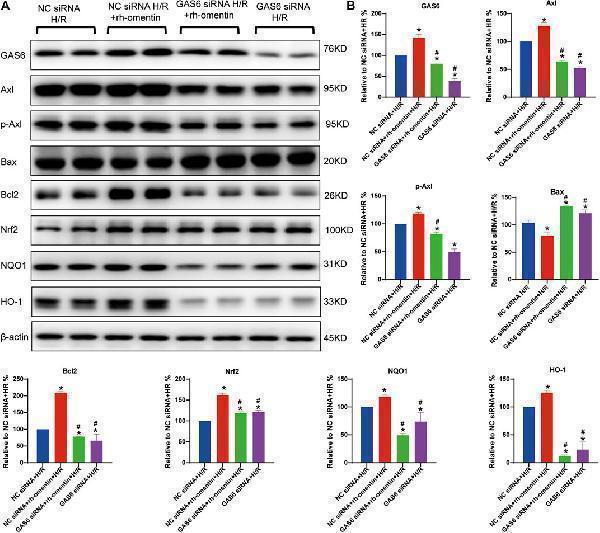

Effect of GAS6 siRNA and rh-omentin on GAS6/Axl signaling in N2a cells injured by H/R. (A) The representative images of GAS6, Axl, p-Axl, NQO1, HO-1, Nrf2, Bax, and Bcl2 detected by Western blot. (B) Quantitative analysis of Western blot by normalizing to β-actin. Error bars show the standard deviation for n = 6 measurements from representative experiments. * p < 0.05 vs . the Control siRNA + H/R; # p < 0.05 vs. the NC siRNA + rh-omentin + H/R group.
Index in PubMed under a CC BY license. PMID: 35141232

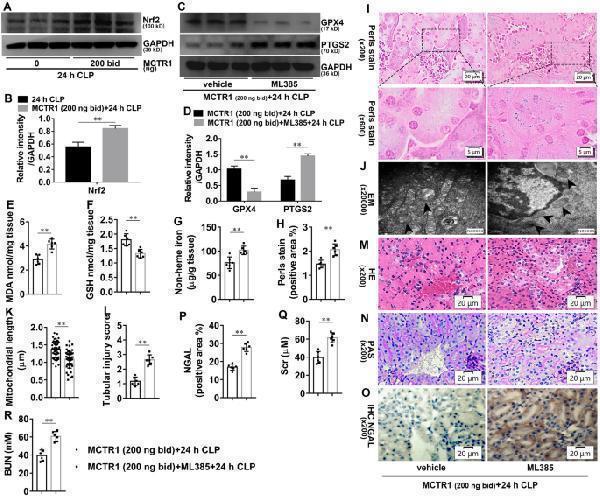

Effects of Nrf2 on MCTR1-regulated ferroptosis in CLP-induced AKI. Mice were given ML385 (30 mg/kg, ip, qd) for 7 d. On day 7, ML385 injection with or without a twice-daily administration mode of MCTR1 as described before in the following experiment. All kidney samples were collected at 24 h after CLP. A–D Shown are representative western blotting and quantification of Nrf2, GPX4, and PTGS2. E – G Quantitative analyses of MDA, GSH, and non-heme iron. H Quantitative analyses of Perl’s stain. I Representative Perl’s stain images. J Representative TEM images. The black arrow indicates ferroptosis-like mitochondria. K Quantitative analyses of mitochondrial length. L Histological analyses of renal tubular injury. M , N Representative HE stains and PAS stain. O Representative IHC images for NGAL. P Quantitative analyses of IHC stain of NGAL. Q , R Quantitative analyses of serum Scr and BUN. n = 6 mice/group, mean ± SD were presented. **P < 0.01
Index in PubMed under a CC BY license. PMID: 34961563

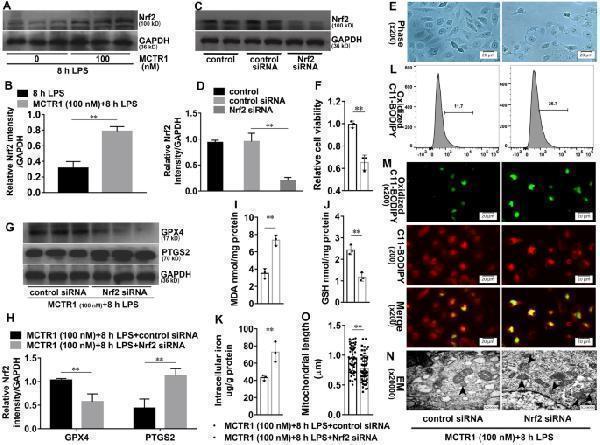

Nrf2 is involved in the inhibitory effects of MCTR1 on LPS-induced ferroptosis. A , B HK-2 cells were treated with MCTR1 (100 nM) and LPS (1 ug/ml) for 8 h. Shown are representative western blotting and quantification of Nrf2. HK-2 cells were transfected with 30 nM Nrf2 siRNA for 48 h and then treated with MCTR1 (100 nM) and LPS (1 ug/ml) for 8 h. C , D Representative western blotting and quantification of Nrf2. E Visualization of cell viability were evaluated by phase-contrast microscopy. F Fold change of cell viability. G , H Representative western blotting and quantification of GPX4 and PTGS2. I – K Quantitative analyses of MDA, GSH, and non-heme iron. L Quantitative analyses of oxidized C11-BODIPY 581/591 probe by flow cytometry. M Representative images of C11-BODIPY 581/591 fluorescent ratio-probe. N Representative TEM images. The black arrow indicates ferroptosis-like mitochondria. O Quantitative analyses of mitochondrial length. n = 3, mean ± SD were presented. **P < 0.01
Index in PubMed under a CC BY license. PMID: 34961563

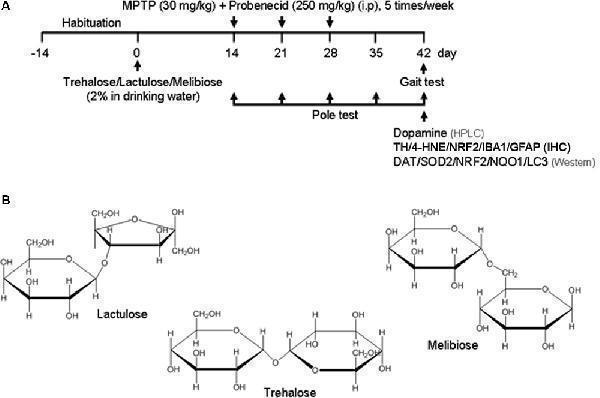

Sub-chronic 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine (MPTP) model. (A) Experimental procotol. Parkinsonism was established by MPTP injections in C57BL/6 mice on the 14th day (15 dose regimen administered over 3 weeks) of 42-day duration of experiment. Mice received tested disaccharides from day 0 for 42 days. Saline-injected mice served as the control group. Pole test was performed on days 14, 21, 28, 35 and 42, and gait test was performed on day 42. Subsequently, mice were sacrificed for dopamine (by HPLC), tyrosine hydroxylase (TH), 4-hydroxynonenal (4-HNE), nuclear factor erythroid 2-related factor 2 (NRF2), ionized calcium-binding adapter molecule 1 (IBA1) and glial fibrillary acidic protein (GFAP; by IHC), and dopamine transporter (DAT), superoxide dismutase 2 (SOD2), NRF2, NQO1 and light chain 3 (LC3; by Western) analyses. (B) Structure of trehalose, lactulose and melibiose (formula C 12 H 22 O 11 , molar mass 342.30).
Index in PubMed under a CC BY license. PMID: 32848705

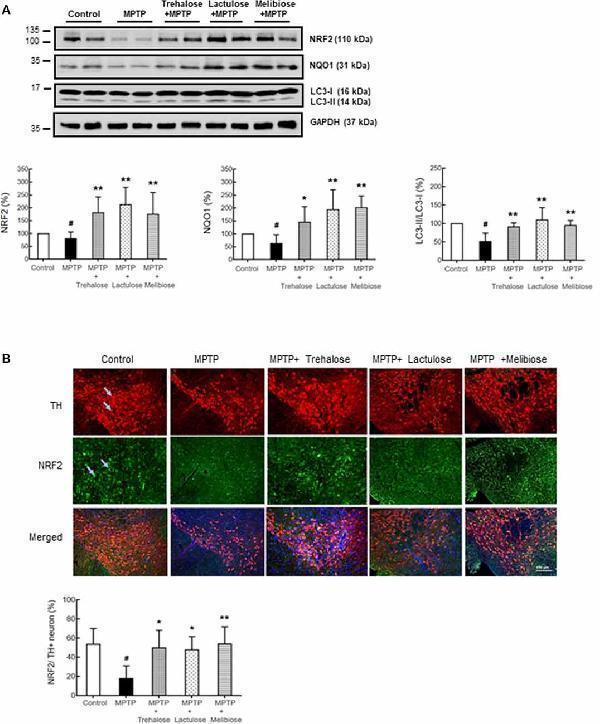

Trehalose and both analogs enhanced autophagy and decreased oxidative stress on dopaminergic neurons. (A) Western blotting to examine the altered protein levels of NRF2, NQO1 and LC3-II/I in ventral midbrain ( n = 8, divided into four batches). (B) Immunohistochemistry of TH (red) and NRF2 (green) positive neurons in ventral midbrain with MPTP/trehalose/lactulose/melibiose treatment. Nuclei were counter stained with DAPI (blue). Percentages of dopaminergic neurons with anti-oxidative damage, identified by TH and NRF2 co-localization, were shown below ( n = 8). P -values, ANOVA with LSD post hoc test, MPTP vs. control ( # P < 0.05) and disaccharide-treated vs. untreated (* P < 0.05 and ** P < 0.01).
Index in PubMed under a CC BY license. PMID: 32848705

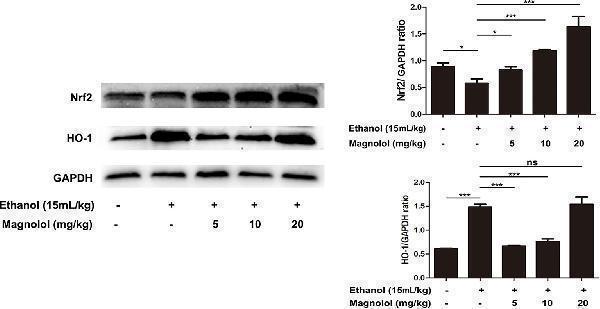

Effects of magnolol on mice alcohol-induced liver damage in the Nrf2/HO-1 signaling pathway. After the completion of modeling and samples were collected, the liver of mice was lysed to detect the proteins by western blotting analysis. The levels of Nrf2 and HO-1 were compared with GAPDH. The data were demonstrated as means ± SD. (*P < 0.05, ***P < 0.001 and "ns" means not significant).
Index in PubMed under a CC BY license. PMID: 31920652

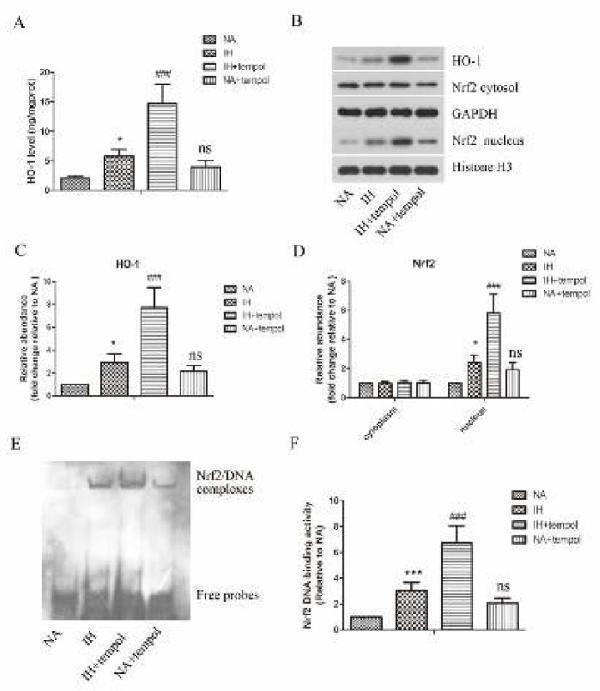

Tempol further promoted intermittent hypoxia-induced activation of the Nrf2/HO-1 signaling pathway. (A) The level of HO-1 in lung tissues was detected by a commercial kit. (B) The protein levels of HO-1, cytoplasmic Nrf2, and nuclear Nrf2 in lung tissues were measured by Western blot assay. GAPDH was used as a loading control. (C)& (D) The gray-scale value of the bands was quantitatively analyzed. (E) DNA binding activity of Nrf2 in lung tissues was determined by EMSA. (F) Quantitative analysis of Nrf2 DNA binding activity. The experimental data were expressed as mean±SD (n=6). * P< 0.05, *** P< 0.001, versus the NA group. ### P< 0.001, versus the IH group. ns, no significance, versus the NA group
Index in PubMed under a CC BY license. PMID: 30627367

IHC analysis of NFE2L2 using anti-NFE2L2 antibody (A00078-1).
NFE2L2 was detected in paraffin-embedded section of human mammary cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2μg/ml rabbit anti-NFE2L2 Antibody (A00078-1) overnight at 4°C. Biotinylated goat anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.

IF analysis of NFE2L2 using anti-NFE2L2 antibody (A00078-1).
NFE2L2 was detected in immunocytochemical section of U20S cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5μg/mL rabbit anti-NFE2L2 Antibody (A00078-1) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.

Flow Cytometry analysis of 293T cells using anti-NFE2L2 antibody (A00078-1).
Overlay histogram showing 293T cells stained with A00078-1 (Blue line).To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-NFE2L2 Antibody (A00078-1, 1μg/1x10⁶ cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x10⁶ cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x10⁶) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
