PDE6B antibody (A02659-1) performs well in ELISA, Flow Cytometry, IF, IHC, ICC, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:
Flow Cytometry analysis of U87 cells using anti-PDE6 beta/PDE6B antibody (A02659-1).
Overlay histogram showing U87 cells stained with A02659-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PDE6 beta/PDE6B Antibody (A02659-1,1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Overlay histogram showing U87 cells stained with A02659-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-PDE6 beta/PDE6B Antibody (A02659-1,1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Bundle Save
Anti-PDE6 beta/PDE6B Antibody Picoband®
PDE6B antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | ELISA, Flow Cytometry, IF, IHC, ICC, WB |
Tested Applications

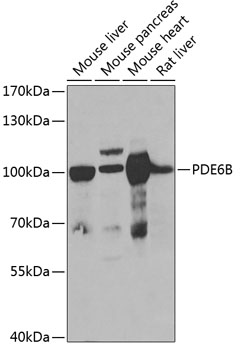

PDE6B antibody was positively detected by WB in:
rat eye tissue, mouse eye tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
PDE6B antibody was positively detected by IHC in:
human liver cancer tissue, human rectal cancer tissue, human rectal cancer tissue
Use TE buffer pH 9.0 for antigen retrieval; (*) citrate buffer pH 6.0 is an alternative.
PDE6B antibody was positively detected by ICC/IF in:
A431 cell, A549 cell
PDE6B antibody was positively detected by FC in:
U87 cell
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.25μg/ml
Mouse, Rat
Immunohistochemistry (Paraffin-embedded Section)
0.5-1μg/ml
Human
Immunocytochemistry/Immunofluorescence
4μg/ml
Human
Flow Cytometry (Fixed)
1-3μg/1x106 cells
Human
ELISA
0.1-0.5μg/ml
-
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Note: For flow cytometry (FCM), suitable for fixed cells only. Not suitable for FACS or surface flow cytometry using live cells.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
IHC
IF
ELISA
Rat
Tested
Recommend
Mouse
Tested
Recommend
Human
Tested
Recommend
Recommend
Monkey
Predicted
Predicted
Predicted
Predicted
Product Information
Product Name
Anti-PDE6 beta/PDE6B Antibody Picoband®
View all PDE6B Antibodies
View all PDE6B Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.01mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E.coli-derived human PDE6 beta/PDE6B recombinant protein (Position: K25-Q237).
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
98 kDa
Calculated Molecular Weight
98.3 kDa
Background of PDE6B
Photon absorption triggers a signaling cascade in rod photoreceptors that activates cGMP phosphodiesterase (PDE), resulting in the rapid hydrolysis of cGMP, closure of cGMP-gated cation channels, and hyperpolarization of the cell. PDE is a peripheral membrane heterotrimeric enzyme made up of alpha, beta, and gamma subunits. This gene encodes the beta subunit. Mutations in this gene result in retinitis pigmentosa and autosomal dominant congenital stationary night blindness. Multiple transcript variants encoding different isoforms have been found for this gene.
Cite This Product
Anti-PDE6 beta/PDE6B Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A02659-1)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
96%
High Homology
Rat
89%
Moderate Homology
Mouse
89%
Moderate Homology
Cow
88%
Moderate Homology
Sheep
88%
Moderate Homology
Zebrafish
66%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for PDE6B antibody
Immunohistochemistry (IHC) protocol for PDE6B antibody
Immunocytochemistry/Immunofluorescence (ICC/IF) protocol for PDE6B antibody
Flow Cytometry (FC) protocol for PDE6B antibody
