SDHB · Western blot design guide
SDHB Western Blot Planning Guide
Plan a SDHB Western blot around the catalog-observed 31.6 kDa band, image-backed M01090-1 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
SDHB Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 31.6 kDa observed | |
| Observed band | 31.6 kDa observed | |
| Gel | 12-15% | |
| Positive control | Adrenal gland | |
| Negative control | Use knockout/knockdown or orthogonal negative |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 31.6 kDa |
| ⓘ | Localization | Mitochondrion inner membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated SDHB Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | M01090-1 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected SDHB Western Blot Band Size?
Use the product-observed 31.6 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 31.6 kDa | Matches the authoritative product WB observation. |
| 31.6 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected SDHB appearancePlan around 31.6 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 31.6 kDa; use this as the primary experimental expectation. |
| Calculated mass | 31.6 kDa from UniProt P21912; retain as context. |

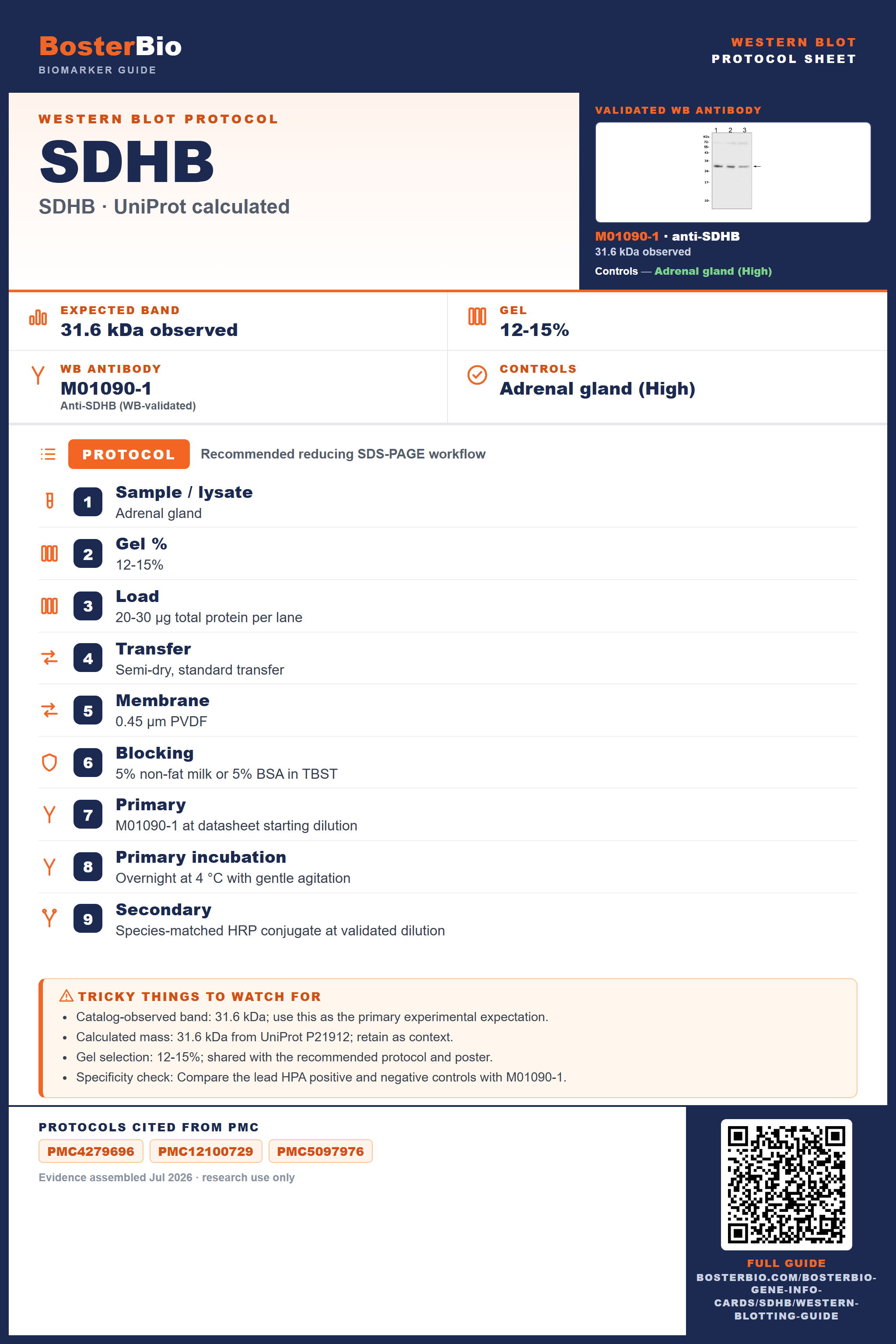

| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with M01090-1. |
| Situation | Likely cause | Next action |
|---|---|---|
| 31.6 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing SDHB band
M01090-1 · SDHBObserved 31.6 kDa · product-specific WB image
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for SDHB Western blot
🧪Use Adrenal gland as the first positive-control candidate and retain an orthogonal negative control.
Positive control: Adrenal gland (High)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for SDHB
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adrenal gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Breast | Reported tissue cells | High | Protein (HPA) | HPA → |
| Caudate | Reported tissue cells | High | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | High | Protein (HPA) | HPA → |
| Soft tissue | Reported tissue cells | Low | Protein (HPA) | HPA → |
| Adipose tissue | Reported tissue cells | Low | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
The available HPA profile lists no reliably-negative tissue for SDHB (a broadly-expressed target). Use a SDHB knockdown (siRNA/shRNA) or knockout lysate as the negative control and confirm signal loss versus the parental lysate.
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced SDHB Western Blot Tips
Deeper troubleshooting and optimisation questions for SDHB, answered from its protein features.
Which band should guide the blot?
Use 31.6 kDa, the observation attached to the authoritative M01090-1 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 31.6 kDa expectation.
Which positive control should I start with?
Start with Adrenal gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use a target knockdown/knockout control when no HPA Not detected tissue is available.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for SDHB Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should M01090-1 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
SDHB Western Blot Reagents
Human/Mouse/Rat-reactive SDHB Western blot reagents with authoritative product imagery.
Real WB data
Anti-SDHB Antibody Picoband® (monoclonal, 2I3)
Cat # M01090-1
Real WB data
Anti-SDHB Antibody Picoband® (monoclonal, 11I3)
Cat # M01090-2
Real WB data
Anti-SDHB Antibody Picoband®
Cat # PA1718
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
