|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates and serum.|
Data & Images
|Product Name||Human JAM-A/F11R PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Human JAM-A. 96wells/kit, with removable strips.|
|Cite This Product||Human JAM-A/F11R PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK1349)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Immunogen||Expression system for standard: E.coli; Immunogen sequence: S28-V238|
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates and serum.
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from mouse|
|Detection Antibody||polyclonal antibody from goat|
|Natural Levels||Some research articles suggesting the natural levels of F11R are listed below:|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK1349-CAP||96-well plate precoated with anti-Human F11R antibody||1|
|EK1349-ST||lyophilized recombinant Human F11R standard||10ng/tubex2|
|EK1349-DA||biotinylated anti-Human F11R antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
|AR0030-E||PBS washing buffer||Powder for 1000ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- 1. Microplate reader in standard size.
- 2. Automated plate washer.
- 3. Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- 4. Clean tubes and Eppendorf tubes.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Protein Name||Junctional adhesion molecule A|
|Molecular Weight||32583 MW|
|Protein Function||Seems to play a role in epithelial tight junction formation. Appears early in primordial forms of cell junctions and recruits PARD3. The association of the PARD6-PARD3 complex may prevent the interaction of PARD3 with JAM1, thereby preventing tight junction assembly (By similarity). Plays a role in regulating monocyte transmigration involved in integrity of epithelial barrier. Involved in platelet activation. In case of orthoreovirus infection, serves as receptor for the virus. .|
|Sequence Similarities||Belongs to the immunoglobulin superfamily.|
|Subcellular Localization||Cell junction, tight junction . Cell membrane ; Single-pass type I membrane protein . Localized at tight junctions of both epithelial and endothelial cells.|
|Alternative Names||Junctional adhesion molecule A;JAM-A;Junctional adhesion molecule 1;JAM-1;Platelet F11 receptor;Platelet adhesion molecule 1;PAM-1;CD321;F11R;JAM1, JCAM;UNQ264/PRO301;|
|Research Areas|||cardiovascular|blood|platelets| signal transduction|cytoskeleton / ecm|cell adhesion|tight junctions| cardiovascular|atherosclerosis|vascular inflammation|leukocyte recruitment|cell junction molecules||
Background for Junctional adhesion molecule A
Human JAM-A/F11R PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|

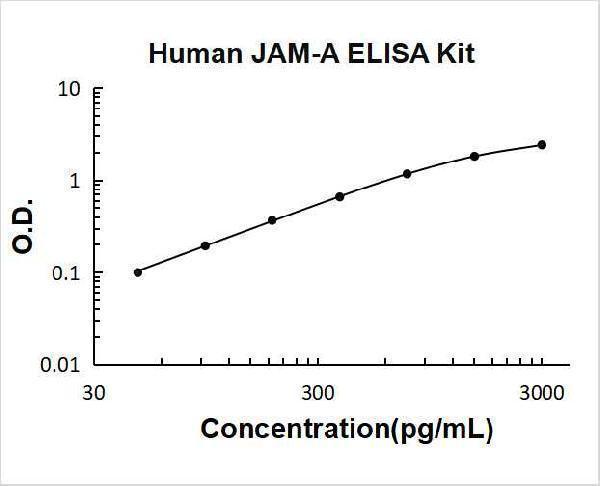

Typical Data Obtained from Human JAM-A/F11R PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 25-30min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
