|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates, cell lysates, serum and plasma (heparin, EDTA).|
Data & Images
|Product Name||Mouse ALCAM/Cd166 PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Mouse ALCAM. 96wells/kit, with removable strips.|
|Cite This Product||Mouse ALCAM/Cd166 PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK1184)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates, cell lysates, serum and plasma (heparin, EDTA).
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from rat|
|Detection Antibody||polyclonal antibody from goat|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK1184-CAP||96-well plate precoated with anti-Mouse Alcam antibody||1|
|EK1184-ST||lyophilized recombinant Mouse Alcam standard||10ng/tubex2|
|EK1184-DA||biotinylated anti-Mouse Alcam antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
|AR0030-E||PBS washing buffer||Powder for 1000ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- 1. Microplate reader in standard size.
- 2. Automated plate washer.
- 3. Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- 4. Clean tubes and Eppendorf tubes.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Protein Name||CD166 antigen|
|Molecular Weight||65092 MW|
|Protein Function||Cell adhesion molecule that mediates both heterotypic cell-cell contacts via its interaction with CD6, as well as homotypic cell-cell contacts. Promotes T-cell activation and proliferation via its interactions with CD6 (By similarity). Contributes to the formation and maturation of the immunological synapse via its interactions with CD6 (By similarity). Mediates homotypic interactions with cells that express ALCAM (PubMed:24740813). Mediates attachment of dendritic cells onto endothelial cells via homotypic interaction. Inhibits endothelial cell migration and promotes endothelial tube formation via homotypic interactions (PubMed:23169771). Required for normal organization of the lymph vessel network (PubMed:23169771). Required for normal hematopoietic stem cell engraftment in the bone marrow (PubMed:24740813). Plays a role in hematopoiesis; required for normal numbers of hematopoietic stem cells in bone marrow (PubMed:25730656). Promotes in vitro osteoblast proliferation and differentiation (PubMed:25730656). Promotes neurite extension, axon growth and axon guidance; axons grow preferentially on surfaces that contain ALCAM (By similarity). Mediates outgrowth and pathfinding for retinal ganglion cell axons (PubMed:15345243). .|
|Tissue Specificity||Detected on brain motor neurons, in differentiating retinal ganglion cells and in adult retina (PubMed:15345243). Detected on leukocytes and on lymphatic endothelial cells (PubMed:23169771). Detected in spleen B cells and T-cells (at protein level) (PubMed:9209500). Detected in adult brain and embryonic spinal cord (PubMed:15345243). Expressed at high levels in the brain, and lung, and at lower levels in the liver, and the kidney, as well as by activated leukocytes (PubMed:9209500). .|
|Subcellular Localization||Cell membrane ; Single-pass type I membrane protein . Cell projection, axon . Cell projection, dendrite . Detected at the immunological synapse, i.e, at the contact zone between antigen-presenting dendritic cells and T-cells. Colocalizes with CD6 and the TCR/CD3 complex at the immunological synapse. .|
|Alternative Names||CD166 antigen;Activated leukocyte cell adhesion molecule ;BEN ;Protein DM-GRASP ;CD166;Alcam;|
|Research Areas|||immunology|adaptive immunity|b cells| immunology|t cells| kits/ lysates/ other|elisa kits|cd markers elisa kits||
Background for CD166 antigen
Mouse ALCAM/Cd166 PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|

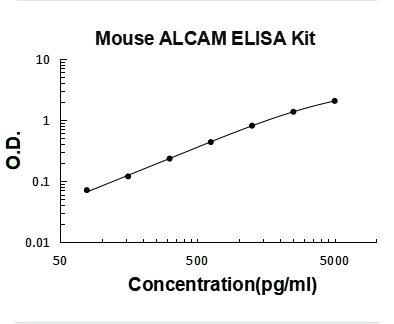

Typical Data Obtained from Mouse ALCAM/Cd166 PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 25-30min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
