|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates, cell lysates, serum and plasma (heparin, EDTA).|
Data & Images
|Product Name||Mouse PDGF-AB PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Mouse PDGF-AB. 96wells/kit, with removable strips.|
|Cite This Product||Mouse PDGF-AB PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0486)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Immunogen||Expression system for standard: E.coli; Immunogen sequence: (S87-T211)+(S82-T190)|
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates, cell lysates, serum and plasma (heparin, EDTA).
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from rat|
|Detection Antibody||polyclonal antibody from goat|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK0486-CAP||96-well plate precoated with anti-Mouse PDGFB antibody||1|
|EK0486-ST||lyophilized recombinant Mouse PDGFB standard||10ng/tubex2|
|EK0486-DA||biotinylated anti-Mouse PDGFB antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- Microplate reader in standard size.
- Automated plate washer.
- Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- Clean tubes and Eppendorf tubes.
- Washing buffer (neutral PBS or TBS).
- Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g NaCl; 450μl of purified acetic acid or 700μl of concentrated hydrochloric acid to 1000ml H2
- Preparation of 0.01 M PBS: Add 8.5g sodium chloride, 1.4g Na O and adjust pH to 7.2-7.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Protein Name||Platelet-derived growth factor subunit B,Platelet-derived growth factor subunit A|
|Molecular Weight||27382 MW|
|Protein Function||Growth factor that plays an essential role in the regulation of embryonic development, cell proliferation, cell migration, survival and chemotaxis. Potent mitogen for cells of mesenchymal origin. Required for normal proliferation and recruitment of pericytes and vascular smooth muscle cells in the central nervous system, skin, lung, heart and placenta. Required for normal blood vessel development, and for normal development of kidney glomeruli. Plays an important role in wound healing. Signaling is modulated by the formation of heterodimers with PDGFA. .|
|Tissue Specificity||Localized to vascular smooth muscle cells. Also weakly expressed by cortical interstitial cells but absent in tubules. Up-regulated in areas of renal fibrosis. In mice with unilateral ureteral obstruction, an increased expression in interstitial cells and in some tubules observed after day 4. .|
|Subcellular Localization||Secreted. Released by platelets upon wounding. .|
|Alternative Names||Platelet-derived growth factor subunit B;PDGF subunit B;PDGF-2;Platelet-derived growth factor B chain;Platelet-derived growth factor beta polypeptide;Proto-oncogene c-Sis;Pdgfb;Sis;|
|Research Areas||cardiovascular|blood|serum proteins|platelets|signal transduction|growth factors/hormones|pdgf|immunology|secreted molecules secreted molecules|cancer|growth factors|atherosclerosis|vascular inflammation|inflammatory mediators|neuroscience|neurology process|neuroregeneration|cancer metabolism|response to hypoxia|pathways and processes|metabolism processes|types of disease||
Background for Platelet-derived growth factor subunit B,Platelet-derived growth factor subunit A
Mouse PDGF-AB PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|

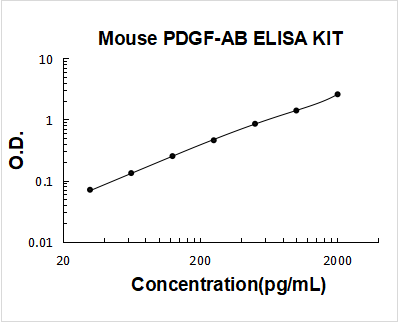

Typical Data Obtained from Mouse PDGF-AB PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 20-25min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
