Product Info Summary
|Size:||96 wells/kit, with removable strips.|
|Sample Types:||cell culture supernatants and serum.|
Customers Who Bought This Also Bought
Rat B7-1/CD80 ELISA Kit PicoKine®
96 wells/kit, with removable strips.
*Question: How many samples can I assay/run in this kit?
Rat B7-1/CD80 ELISA Kit PicoKine™ (96 Tests). Quantitate Rat Cd80 in cell culture supernatants and serum. Sensitivity: 2pg/ml.
Storage & Handling
Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles (Ships with gel ice, can store for up to 3 days in room temperature. Freeze upon receiving.)
Cite This Product
Rat B7-1/CD80 ELISA Kit PicoKine® (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK0709)
Clonality of Antibodies
See Datasheet for details
Expression system for standard: NS0; Immunogen sequence: I39-Q248
62.5 pg/ml - 4,000 pg/ml
There is no detectable cross-reactivity with other relevant proteins.
EK0709 is reactive to Cd80 in Rat samples
Validated Sample Types
cell culture supernatants and serum.
EK0709 is guaranteed for ELISA in Rat by Boster Guarantee
See how Boster Bio validate our ELISA kits: ELISA Validation Information
Background of B7-1/CD80
The protein CD80 (Cluster of Differentiation 80) is a molecule found on activated B cells and monocytes which provides a costimulatory signal necessary for T cell activation and survival. It is also known as B7-1. The cDNA for B7-1 predicts a type I membrane protein, i.e., one synthesized with a signal peptide that is cleaved upon translocation across the endoplasmic membrane. The protein is predicted to contain 2 extracellular domains structurally similar to those of Ig, a hydrophobic transmembrane region, and a short cytoplasmic domain.The CD80 and CD86 genes encode B7-1 and B7-2, respectively, which are structurally similar members of the immunoglobulin superfamily expressed on a variety of hematopoietic cell types. B7-1 and B7-2 provide a costimulatory signal to T cells by interacting with CD28 and CTLA4.
|EK0709-CAP||Anti-Rat Cd80 Pre-coated 96-well strip microplate||1|
|EK0709-ST||Rat Cd80 Standard||2 vials, 10 ng/tube|
|EK0709-DA||Rat Cd80 Biotinylated antibody (100x)||100ul|
|AR1103||Avidin-Biotin-Peroxidase Complex (100x)||100ul|
|AR1104||Color Developing Reagent (TMB)||10ml|
|AR1106-5||Wash Buffer (25x)||20ml|
|PLA-SEA||Adhesive plate sealers||4|
*The kit components are not available for individual purchase.
Materials Required But Not Included In Kit
- Microplate Reader capable of reading absorbance at 450nm.
- Automated plate washer (optional).
- Pipettes and pipette tips capable of precisely dispensing 0.5 µl through 1 ml volumes of aqueous solutions.
- Multichannel pipettes are recommended for large amount of samples.
- Deionized or distilled water.
- 500ml graduated cylinders.
- Test tubes for dilution.
Innovating Scientists Reward
If you are the first to review this product, or if you have results for a special sample, species or application this product is not validated in, share your results with us and receive product credits you can use towards any Boster products! Applicable to all scientists world wide.
Submit A Review

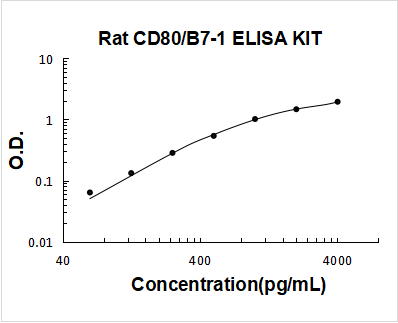

Validation Standard Curve O.D. At 450nm
Data Example Images
Click image to see more details
Rat CD80/B7-1 PicoKine ELISA Kit standard curve
Intra Assay Consistency & Inter Assay Consistency
We measured random samples of Rat B7-1/CD80 ELISA Kit PicoKine® within the same batch/lot to ensure the consistency of the kits' performances. ELISA intra assay consistency is measured using wells from the same plate/assay kit. ELISA inter assay consistency is measured using wells from different plates from the same batch production/lot.
|Intra-Assay Precision||Inter-Assay Precision|
We ensure reproducibility by testing three samples with differing concentrations of B7-1/CD80 in ELISA kits from four different production batches/lots.
|Lots||Lot 1 (pg/ml)||Lot 2 (pg/ml)||Lot 3 (pg/ml)||Lot 4 (pg/ml)||Mean (pg/ml)||Standard Deviation||CV (%)|
Gene/Protein Information For Cd80 (Source: Uniprot.Org, NCBI)
T-lymphocyte activation antigen CD80
Activation B7-1 antigen; B7; B71; B7-1; BB1; CD28LG1; CD28LGB7-1 antigen); CD80 antigen; CD80 molecule; CD80; costimulatory factor CD80; costimulatory molecule variant IgV-CD80; CTLA-4 counter-receptor B7.1; T-lymphocyte activation antigen CD80 CD80 B7, B7-1, B7.1, BB1, CD28LG, CD28LG1, LAB7 CD80 molecule T-lymphocyte activation antigen CD80|B-lymphocyte activation antigen B7|CD80 antigen (CD28 antigen ligand 1, B7-1 antigen)|CTLA-4 counter-receptor B7.1|activation B7-1 antigen|costimulatory factor CD80|costimulatory molecule variant IgV-CD80*if product is indicated to react with multiple species, protein info is based on the gene entry specified above in "species".
For more info on Cd80, check out the Cd80 Infographic
We have 30,000+ of these available, one for each gene! check them out.
In this infographic you will see the following information for Cd80: database IDs, super-family, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact us [email protected]
No publications found for EK0709
*Do you have publications using this product? Share with us and receive a reward. Ask us for more details.
