|Pack Size:||96wells/kit, with removable strips.|
|Sample Type:||cell culture supernates and serum.|
Data & Images
|Product Name||Rat VEGFR3/FLT4 PicoKine™ ELISA Kit|
|Description||Sandwich High Sensitivity ELISA kit for Quantitative Detection of Rat VEGFR3/FLT4. 96wells/kit, with removable strips.|
|Cite This Product||Rat VEGFR3/FLT4 PicoKine™ ELISA Kit (Boster Biological Technology, Pleasanton CA, USA, Catalog # EK1347)|
*Our Boster Guarantee covers the use of this product in the above tested applications.
**For positive and negative control design, consult "Tissue specificity" under Protein Target Info.
|Immunogen||Expression system for standard: NSO; Immunogen sequence: Y25-D770|
|Cross Reactivity||There is no detectable cross-reactivity with other relevant proteins.|
|Pack Size||96wells/kit, with removable strips.|
*Sensitivity, or Lower Limit of Detection (LLD), is the minimum level of target protein the ELISA assay can detect. We measure 20 blank wells and if the O.D. value is 2 standard deviations higher than the blanks' average O.D. the sample can be deemed positive.
*This assay range is determined using common samples. For samples with low target protein concentrations, users can adjust the standard curve to extend the lower limit of assay range.
|Sample Type||cell culture supernates and serum.
*The above listed samples are the ones valided with the assay. If you do not see your sample of interest listed, as long as there is enough level of target protein present in the sample, this Picokine™ ELISA kit should detect it.
**For protocol and tips regarding preparing your sample of interest, please check our ELISA sample preparation guide.
|Capture Antibody||monoclonal antibody from mouse|
|Detection Antibody||polyclonal antibody from goat|
|Storage||Store at 4°C for 6 months, at -20°C for 12 months. Avoid multiple freeze-thaw cycles(Shipped with wet ice.)|
|EK1347-CAP||96-well plate precoated with anti-Rat Flt4 antibody||1|
|EK1347-ST||lyophilized recombinant Rat Flt4 standard||10ng/tubex2|
|EK1347-DA||biotinylated anti-Rat Flt4 antibody||130ul(dilution 1:100)|
|AR1103||Avidin-Biotin-Peroxidase Complex(ABC)||130ul(dilution 1:100)|
|AR1106-1||sample diluent buffer||30ml|
|AR1106-2||antibody diluent buffer||12ml|
|AR1106-3||ABC diluent buffer||12ml|
|AR1104||TMB color developing agent||10ml|
|AR1105||TMB stop solution||10ml|
|AR0030-E||PBS washing buffer||Powder for 1000ml|
Washing buffer Preparation: Disolve AR0030-E to 1000ml distilled water and adjust pH to 7.2~7.6. Finally, adjust the total volume to 1L.
*Additional components can be purchased. If you need extra of the above components please order them together to avoid additional shipping charges.See Prices For Extra Components
Material Required But Not Provided
- Microplate reader in standard size.
- Automated plate washer.
- Adjustable pipettes and pipette tips. Multichannel pipettes are recommended in the condition of large amount of samples in the detection.
- Clean tubes and Eppendorf tubes.
- Washing buffer (neutral PBS or TBS).
- Preparation of 0.01M TBS: Add 1.2g Tris, 8.5g NaCl; 450μl of purified acetic acid or 700μl of concentrated hydrochloric acid to 1000ml H2
- Preparation of 0.01 M PBS: Add 8.5g sodium chloride, 1.4g Na O and adjust pH to 7.2-7.
Protein Target Info (Source: Uniprot.org)
You can check the tissue specificity below for information on selecting positive and negative control.
|Protein Name||Vascular endothelial growth factor receptor 3|
|Molecular Weight||153317 MW|
|Protein Function||Tyrosine-protein kinase that acts as a cell-surface receptor for VEGFC and VEGFD, and plays an essential role in adult lymphangiogenesis and in the development of the vascular network and the cardiovascular system during embryonic development. Promotes proliferation, survival and migration of endothelial cells, and regulates angiogenic sprouting. Signaling by activated FLT4 leads to enhanced production of VEGFC, and to a lesser degree VEGFA, thereby creating a positive feedback loop that enhances FLT4 signaling. Modulates KDR signaling by forming heterodimers. Mediates activation of the MAPK1/ERK2, MAPK3/ERK1 signaling pathway, of MAPK8 and the JUN signaling pathway, and of the AKT1 signaling pathway. Phosphorylates SHC1. Mediates phosphorylation of PIK3R1, the regulatory subunit of phosphatidylinositol 3- kinase. Promotes phosphorylation of MAPK8 at 'Thr-183' and 'Tyr- 185', and of AKT1 at 'Ser-473' (By similarity). .|
|Sequence Similarities||Belongs to the protein kinase superfamily. Tyr protein kinase family. CSF-1/PDGF receptor subfamily.|
|Subcellular Localization||Cell membrane ; Single-pass type I membrane protein . Cytoplasm . Nucleus . Ligand-mediated autophosphorylation leads to rapid internalization. .|
|Alternative Names||Vascular endothelial growth factor receptor 3;VEGFR-3;126.96.36.199;Fms-like tyrosine kinase 4;FLT-4;Tyrosine-protein kinase receptor FLT4;Flt4;Flt-4, Vegfr3;|
Background for Vascular endothelial growth factor receptor 3
Rat VEGFR3/FLT4 PicoKine™ ELISA Kit Images
Click the images to enlarge.
Intra/Inter Assay Precision
|Intra-Assay Precision||Inter-Assay Precision|

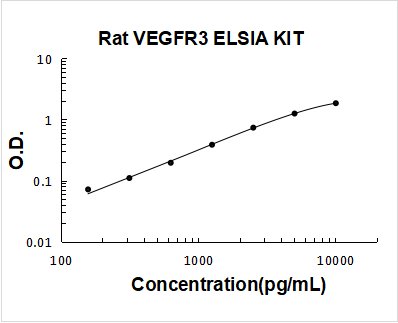

Typical Data Obtained from Rat VEGFR3/FLT4 PicoKine™ ELISA Kit
(TMB reaction incubate at 37°C for 20-25min)
*The typical data is obtained from Boster's internal QC result and for reference only. It may differ from the lab test results of the end users. It is more important that the user's lab test results reflect the same linearity demonstrated in the typical data than achieving exactly the same O.D. values.
