Product Info Summary
SKU: | M01857-3 |
---|---|
Size: | 100 μg/vial |
Reactive Species: | Human, Mouse, Rat |
Host: | Mouse |
Application: | Flow Cytometry, IF, ICC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-Beta Tubulin Antibody Picoband™(monoclonal, 5E4)
View all beta Tubulin Antibodies
SKU/Catalog Number
M01857-3
Size
100 μg/vial
Form
Lyophilized
Description
Boster Bio Anti-Beta Tubulin Antibody Picoband™ (monoclonal, 5E4) catalog # M01857-3. Tested in Flow Cytometry, IF, ICC, WB applications. This antibody reacts with Human, Mouse, Rat.
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Cite This Product
Anti-Beta Tubulin Antibody Picoband™(monoclonal, 5E4) (Boster Biological Technology, Pleasanton CA, USA, Catalog # M01857-3)
Host
Mouse
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Monoclonal
Clone Number
5E4
Isotype
Mouse IgG1
Immunogen
A synthetic peptide corresponding to a sequence at the C-terminus of human Beta Tubulin, identical to the related mouse and rat sequences.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross-reactivity with other proteins.
Reactive Species
M01857-3 is reactive to TUBB in Human, Mouse, Rat
Applications
M01857-3 is guaranteed for Flow Cytometry, IF, ICC, WB Boster Guarantee
Observed Molecular Weight
55 kDa
Calculated molecular weight
49.671kDa
Background of beta Tubulin
Tubulin beta chain is a protein that in humans is encoded by the TUBB gene. This gene encodes a beta tubulin protein. This protein forms a dimer with alpha tubulin and acts as a structural component of microtubules. Mutations in this gene cause cortical dysplasia, complex, with other brain malformations 6. Alternative splicing results in multiple splice variants. There are multiple pseudogenes for this gene on chromosomes 1, 6, 7, 8, 9, and 13.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Innovating Scientists Reward
If you are the first to review this product, or if you have results for a special sample, species or application this product is not validated in, share your results with us and receive product credits you can use towards any Boster products! Applicable to all scientists worldwide.
Submit A Review
Assay dilution & Images
Reconsitution
Add 0.2ml of distilled water will yield a concentration of 500μg/ml.
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.5μg/ml, Human, Mouse, Rat
Immunocytochemistry/Immunofluorescence, 2μg/ml, Human
Flow Cytometry, 1-3μg/1x106 cells, Human
Validation Images & Assay Conditions
Click image to see more details

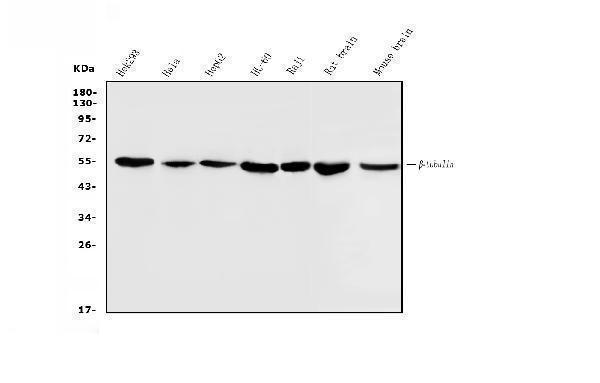

Figure 1. Western blot analysis of Beta Tubulin using anti-Beta Tubulin antibody (M01857-3).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human HEK293 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human HEPG2 whole cell lysates,
Lane 4: human HL-60 whole cell lysates,
Lane 5: human Raji whole cell lysates,
Lane 6: rat brain tissue lysates,
Lane 7: mouse brain tissue lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti-Beta Tubulin antigen affinity purified monoclonal antibody (Catalog # M01857-3) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for Beta Tubulin at approximately 55KD. The expected band size for Beta Tubulin is at 55KD.
Click image to see more details
Figure 2. IF analysis of Beta Tubulin using anti-Beta Tubulin antibody (M01857-3).
Beta Tubulin was detected in immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 2μg/mL mouse anti-Beta Tubulin Antibody (M01857-3) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
Click image to see more details
Figure 3. Flow Cytometry analysis of SiHa cells using anti-Beta Tubulin antibody (M01857-3).
Overlay histogram showing SiHa cells stained with M01857-3 (Blue line).The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-Beta Tubulin Antibody (M01857-3, 1μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Protein Target Info & Infographic
Gene/Protein Information For TUBB (Source: Uniprot.org, NCBI)
Gene Name
TUBB
Full Name
Tubulin beta chain
Weight
49.671kDa
Superfamily
tubulin family
Alternative Names
beta polypeptide; MGC117247; Tubb5; tubulin beta chain; tubulin beta polypeptide; tubulin beta-1 chain; Tubulin beta-5 chain; tubulin, beta TUBB CDCBM6, CSCSC1, M40, OK/SW-cl.561, TUBB5, TUBB tubulin beta class I tubulin beta chain|beta Ib tubulin|epididymis secretory sperm binding protein|tubulin beta-1 chain|tubulin beta-5 chain|tubulin, beta polypeptide
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on TUBB, check out the TUBB Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for TUBB: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
Specific Publications For Anti-Beta Tubulin Antibody Picoband™(monoclonal, 5E4) (M01857-3)
Hello CJ!
M01857-3 has been cited in 6 publications:
*The publications in this section are manually curated by our staff scientists. They may differ from Bioz's machine gathered results. Both are accurate. If you find a publication citing this product but is missing from this list, please let us know we will issue you a thank-you coupon.
Shen X,Zhang J,Zhang X,Wang Y,Hu Y,Guo J.Retinoic Acid-Induced Protein 14 (RAI14) Promotes mTOR-Mediated Inflammation Under Inflammatory Stress and Chemical Hypoxia in a U87 Glioblastoma Cell Line.Cell Mol Neurobiol.2019 Mar;39(2):241-254.doi:10.1007/s10571-018-0644-z.Epub 2018 Dec 15.PMID:30554401.
Species: Human
M01857-3 usage in article: APP:WB, SAMPLE:HUVECS, DILUTION:1:300
Han Zhang,Huaishan Wang,Fei Gao,Jia Yang,Yi Xu,Yi Fu,Menghua Cai,Xue Zhang,Qi Yang,Kexin Tong,Yu Hu,Hui Chen,Chao Ma,Wei He,Jianmin Zhang,TSPO Deficiency Accelerates Amyloid Pathology and Neuroinflammation by Impairing Microglial Phagocytosis,Neurobiology of Aging,2021,,ISSN 0197-4580,https://doi.org/10.1016/j.neurobiolaging.2021.06.020.
Species: Human,Mouse
M01857-3 usage in article: APP:WB, SAMPLE:BRAIN TISSUE, DILUTION:NA
Yu Jiao,Ran Hu,Sirong Hu,Binge Wang,Dehong Huang,Zhou Lan,Shenrong Wuzi Pill affects the pathway of thyroid hormone synthesis by targeting thyrotropin-releasing hormone receptor and altering cAMP production,Journal of Herbal Medicine,2021,100470,ISSN 2210-8033,https://doi.org/10.1016/j. hermed. 2021.100470.
Species: Mouse
M01857-3 usage in article: APP:WB, SAMPLE:NG108-15 CELL, DILUTION: 1:3000
Shi,W.,Que,Y.,Zhang,X.et al.Functional tissue-engineered bone-like graft made of a fibrin scaffold and TG2 gene-modified EMSCs for bone defect repair.NPG Asia Mater 13,28 (2021).https://doi.org/10.1038/s41427-021-00297-w
Species: Rat
M01857-3 usage in article: APP:WB, SAMPLE:EMSCS, DILUTION:NA
Fan J,He M,Wang CJ,Zhang M. Gadolinium Chloride Inhibits the Production of Liver Interleukin-27 and Mitigates Liver Injury in the CLP Mouse Model. Mediators Inflamm. 2021 Jan 29;2021:2605973. doi:10.1155/2021/2605973.PMID:33564275;PMCID:PMC7867451.
Species: Mouse
M01857-3 usage in article: APP:WB, SAMPLE:LIVER TISSUE, DILUTION:1:1000
Fan J,He M,Wang CJ,Zhang M. Gadolinium Chloride Inhibits the Production of Liver Interleukin-27 and Mitigates Liver Injury in the CLP Mouse Model. Mediators Inflamm. 2021 Jan 29;2021:2605973.doi:10.1155/ 2021/2605973.PMID:33564275;PMCID:PMC7867451.
Species: Mouse
M01857-3 usage in article: APP:WB, SAMPLE:LIVER TISSUE, DILUTION:1:1000
