Anti-CaMKII delta CAMK2D Rabbit Monoclonal Antibody

Western blot analysis of CaMKII delta/CAMK2D using anti-CaMKII delta/CAMK2D antibody (M02611).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Daudi whole cell lysates,
Lane 2: human U-87MG whole cell lysates,
Lane 3: human HUVEC whole cell lysates,
Lane 4: human A549 whole cell lysates,
Lane 5: rat C6 whole cell lysates,
Lane 6: mouse Neuro-2a whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CaMKII delta/CAMK2D antigen affinity purified monoclonal antibody (M02611) at 1:500 overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:500 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for CaMKII delta/CAMK2D at approximately 50 kDa. The expected band size for CaMKII delta/CAMK2D is at 56 kDa.

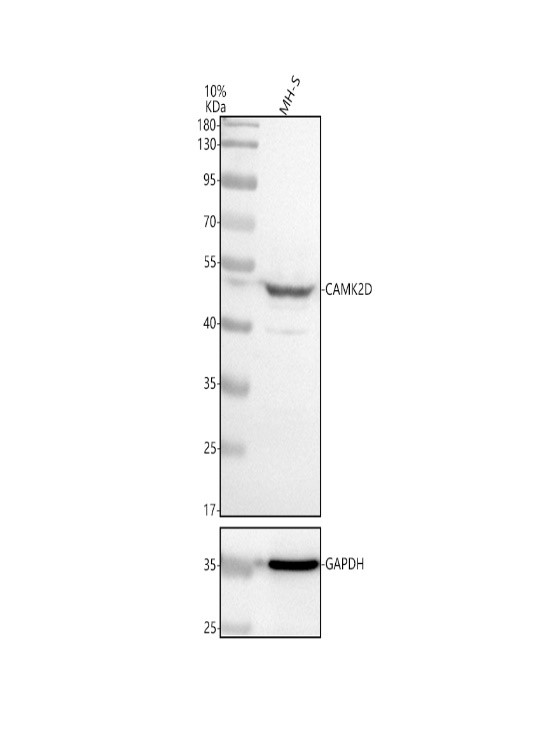

Western blot analysis of CAMK2D using anti-CAMK2D antibody (M02611).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 μg of sample under reducing conditions.
Lane 1: mouse MH-S whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CAMK2D antigen affinity purified monoclonal antibody (M02611) at a dilution of 1:1000 overnight at 4°C, then washed with TBS-0.1%Tween-20 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054) at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for CAMK2D at approximately 50 kDa. The expected band size for CAMK2D is at 50-56 kDa.

Western blot analysis of CAMK2D using anti-CAMK2D antibody (M02611).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: mouse RAW264.7 whole cell lysates,
Lane 2: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CAMK2D antigen affinity purified monoclonal antibody (M02611) at a dilution of 1:1000 overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054) at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for CAMK2D at approximately 50 kDa. The expected band size for CAMK2D is at 56 kDa.

ICC/IF analysis of CAMK2D using anti- CAMK2D antibody (M02611).
CAMK2D was detected in an immunocytochemical section of mouse MH-S cells. The cells were blocked with 10% goat serum. And then incubated with rabbit anti- CAMK2D Antibody (M02611) at a dilution of 1:50 overnight at 4°C. DyLight®488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody at 1:500 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
