HLA-DRB(1,3,4,5) antibody (A00568-2) performs well in ELISA, WB and shows reactivity with Human.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

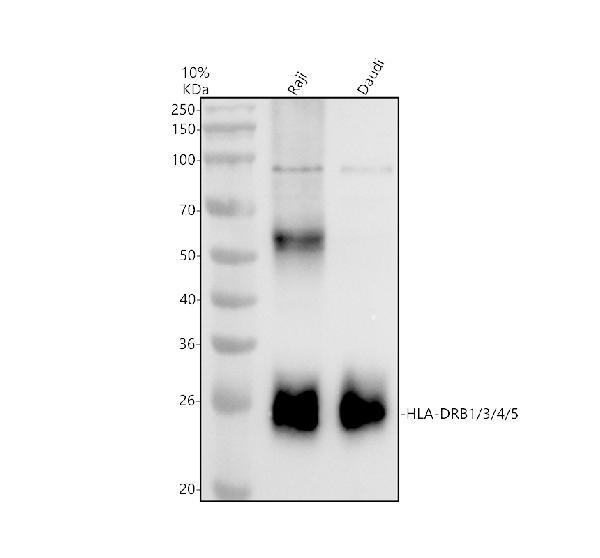

Western blot analysis of HLA-DRB1/3/4/5 using anti-HLA-DRB1/3/4/5 antibody (A00568-2).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Raji whole cell lysates,
Lane 2: human Daudi whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HLA-DRB1/3/4/5 antigen affinity purified polyclonal antibody (A00568-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for HLA-DRB1/3/4/5 at approximately 25 kDa. The expected band size for HLA-DRB1/3/4/5 is at 30 kDa.
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Raji whole cell lysates,
Lane 2: human Daudi whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HLA-DRB1/3/4/5 antigen affinity purified polyclonal antibody (A00568-2) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for HLA-DRB1/3/4/5 at approximately 25 kDa. The expected band size for HLA-DRB1/3/4/5 is at 30 kDa.
Bundle Save
Anti-HLA-DRB1/3/4/5 Antibody Picoband®
HLA-DRB(1,3,4,5) antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human | Rabbit | ELISA, WB |
Tested Applications
HLA-DRB(1,3,4,5) antibody was positively detected by WB in:
human Raji whole cell, human Daudi whole cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.25-0.5 μg/ml
Human
ELISA
0.1-0.5 μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Product Information
Product Name
Anti-HLA-DRB1/3/4/5 Antibody Picoband®
View all HLA-DRB(1,3,4,5) Antibodies
View all HLA-DRB(1,3,4,5) Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
At -20°C for one year from date of receipt.
After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months.
Avoid repeated freezing and thawing.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Immunogen
E.coli-derived human HLA-DRB1/3/4/5 recombinant protein (Position: D31-H141).
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
25 kDa
Calculated Molecular Weight
30.0 kDa
Background of HLA-DRB(1,3,4,5)
HLA-DRB1 belongs to the HLA class II beta chain paralogs. The class II molecule is a heterodimer consisting of an alpha (DRA) and a beta chain (DRB), both anchored in the membrane. It plays a central role in the immune system by presenting peptides derived from extracellular proteins. Class II molecules are expressed in antigen presenting cells. The beta chain is approximately 26-28 kDa. It is encoded by 6 exons. Exon one encodes the leader peptide; exons 2 and 3 encode the two extracellular domains; exon 4 encodes the transmembrane domain; and exon 5 encodes the cytoplasmic tail. Within the DR molecule the beta chain contains all the polymorphisms specifying the peptide binding specificities. Hundreds of DRB1 alleles have been described and some alleles have increased frequencies associated with certain diseases or conditions. For example, DRB1*1302 has been related to acute and chronic hepatitis B virus persistence. There are multiple pseudogenes of this gene.
Cite This Product
Anti-HLA-DRB1/3/4/5 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A00568-2)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
83%
Moderate Homology
Cow
80%
Moderate Homology
Rabbit
77%
Moderate Homology
Sheep
77%
Moderate Homology
Dog
77%
Moderate Homology
Mouse
72%
Moderate Homology
Rat
69%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for HLA-DRB(1,3,4,5) antibody
Review
Have you used Anti-HLA-DRB1/3/4/5 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-HLA-DRB1/3/4/5 Antibody Picoband® performs excellently in relevant applications for ELISA, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A00568-2
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
