HLA-DRB1 antibody (M00568-1) performs well in IF, IHC, ICC, WB and shows reactivity with Human.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

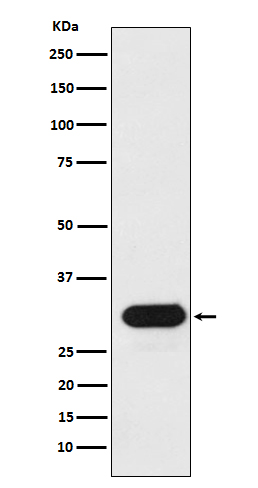

Western blot analysis of HLA-DRB1 using anti-HLA-DRB1 antibody (M00568-1).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Ramos whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HLA-DRB1 antigen affinity purified monoclonal antibody (M00568-1) at 1:500 overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for HLA-DRB1 at approximately 25-30 kDa. The expected band size for HLA-DRB1 is at 30 kDa.
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Ramos whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HLA-DRB1 antigen affinity purified monoclonal antibody (M00568-1) at 1:500 overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for HLA-DRB1 at approximately 25-30 kDa. The expected band size for HLA-DRB1 is at 30 kDa.
Designing a Western blot for HLA-DRB1? The guide covers the expected band size, antibodies backed by real blot images, the controls to run alongside, and protocols taken from published papers.
Open the HLA-DRB1 Western Blot GuideBundle Save
Anti-HLA-Drb1 Monoclonal Antibody
HLA-DRB1 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human | Rabbit | IF, IHC, ICC, WB |
Tested Applications
HLA-DRB1 antibody was positively detected by WB in:
human Ramos whole cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
WB 1:500-2000
IHC 1:50-200
ICC/IF 1:50-200
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Product Information
Product Name
Anti-HLA-Drb1 Monoclonal Antibody
View all HLA-DRB1 Antibodies
View all HLA-DRB1 Antibodies
Form
Liquid
Uniprot
Gene ID
Storage & Handling
Store at -20°C for one year. For short term storage and frequent use, store at 4°C for up to one month. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Rabbit IgG in stabilizing components, phosphate buffered saline, pH 7.4, 150mM NaCl, 0.02% sodium azide and 50% glycerol.
*This antibody is supplied in a stabilized formulation.
Compatibility with conjugation reactions depends on the chemistry of the conjugation method used.
For conjugation methods that are not compatible with the stabilizing components present in this formulation, a carrier-free antibody format is required.
*This antibody is supplied in a stabilized formulation.
Compatibility with conjugation reactions depends on the chemistry of the conjugation method used.
For conjugation methods that are not compatible with the stabilizing components present in this formulation, a carrier-free antibody format is required.
Clonality
Monoclonal
Clone Number
AFGA-8
Isotype
Rabbit IgG
Immunogen
A synthesized peptide derived from human HLA-Drb1 Binds peptides derived from antigens that access the endocytic route of antigen presenting cells (APC) and presents them on the cell surface for recognition by the CD4 T-cells.
Reconstitution
Restore with deionized water (or equivalent) for reconstitution volume of 1.0 mL
Observed Molecular Weight
25-30 kDa
Calculated Molecular Weight
30.0 kDa
Cite This Product
Anti-HLA-Drb1 Monoclonal Antibody (Boster Biological Technology, Pleasanton CA, USA, Catalog # M00568-1)
Protocols
Western Blot protocol for HLA-DRB1 antibody
Review
Have you used Anti-HLA-Drb1 Monoclonal Antibody?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-HLA-Drb1 Monoclonal Antibody performs excellently in relevant applications for IF, IHC, ICC, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
M00568-1
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
