MAP2K4 antibody (PA2275) performs well in WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

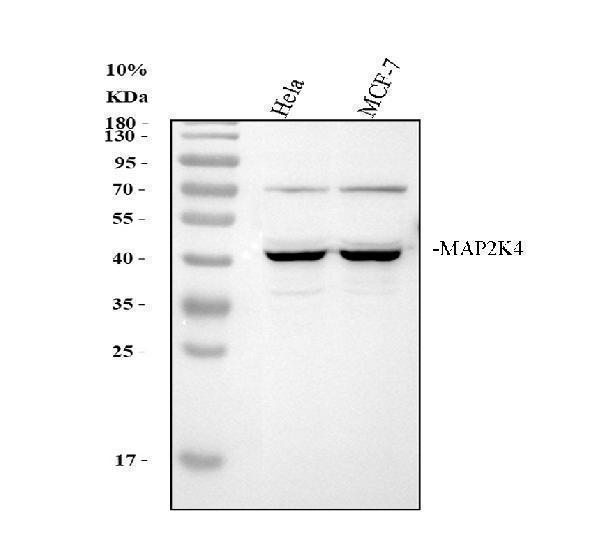

Western blot analysis of MEK4/MAP2K4 using anti-MEK4/MAP2K4 antibody (PA2275).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MCF-7 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MEK4/MAP2K4 antigen affinity purified polyclonal antibody (PA2275) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054) at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for MEK4/MAP2K4 at approximately 44 kDa. The expected band size for MEK4/MAP2K4 is at 44 kDa.
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MCF-7 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-MEK4/MAP2K4 antigen affinity purified polyclonal antibody (PA2275) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054) at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for MEK4/MAP2K4 at approximately 44 kDa. The expected band size for MEK4/MAP2K4 is at 44 kDa.
Designing a Western blot for MAP2K4? The guide covers the expected band size, antibodies backed by real blot images, the controls to run alongside, and protocols taken from published papers.
Open the MAP2K4 Western Blot GuideBundle Save
Anti-MEK4/MAP2K4 Antibody Picoband®
MAP2K4 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | WB |
Tested Applications
MAP2K4 antibody was positively detected by WB in:
human Hela whole cell, human MCF-7 whole cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml
Human, Rat, Mouse
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
Human
Tested
Bovine
Predicted
Sheep
Predicted
Monkey
Predicted
Mouse
Predicted
Rat
Predicted
Rabbit
Predicted
Dog
Predicted
Product Information
Product Name
Anti-MEK4/MAP2K4 Antibody Picoband®
View all MAP2K4 Antibodies
View all MAP2K4 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2mg Na2HPO4, 0.05 mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
A synthetic peptide corresponding to a sequence at the C-terminus of human MEK4, different from the related mouse and rat sequences by one amino acid.
Cross-Reactivity
No cross-reactivity with other proteins
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
44 kDa
Calculated Molecular Weight
44.3 kDa
Background of MAP2K4
Dual specificity mitogen-activated protein kinase kinase 4 (MAP2K4), also called SEK1 or JNKK1, is an enzyme that in humans is encoded by the MAP2K4 gene. It is mapped to 17p12. This gene encodes a dual specificity protein kinase that belongs to the Ser/Thr protein kinase family. This kinase is a direct activator of MAP kinases in response to various environmental stresses or mitogenic stimuli. It has been shown to activate MAPK8/JNK1, MAPK9/JNK2, and MAPK14/p38, but not MAPK1/ERK2 or MAPK3/ERK1. This kinase is phosphorylated, and thus activated by MAP3K1/MEKK. MAP2K4 was a specific activator of JNK1, JNK2, and p38, and it has been shown to interact with FLNC, MAPK8, MAPK8IP3 and AKT1.
Cite This Product
Anti-MEK4/MAP2K4 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # PA2275)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Cow
100%
High Homology
Sheep
100%
High Homology
Monkey
100%
High Homology
Mouse
95%
High Homology
Rat
95%
High Homology
Rabbit
95%
High Homology
Dog
95%
High Homology
Zebrafish
79%
Moderate Homology
Drosophila
42%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for MAP2K4 antibody
Review
Have you used Anti-MEK4/MAP2K4 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-MEK4/MAP2K4 Antibody Picoband® performs excellently in relevant applications for WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
PA2275
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
