NAGA antibody (A04163-1) performs well in ELISA, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

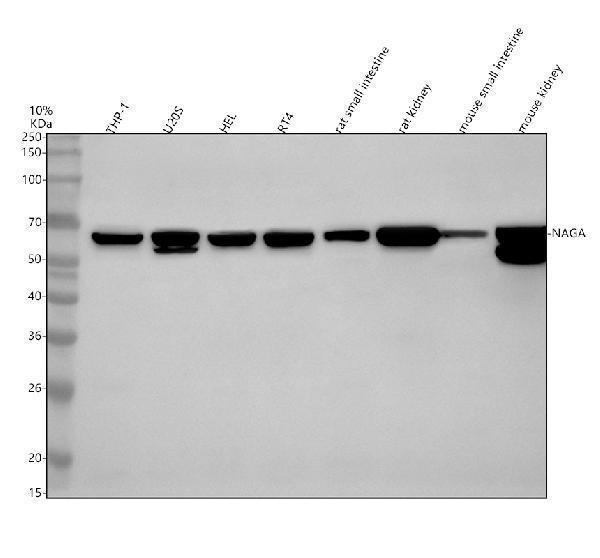

Western blot analysis of NAGA using anti-NAGA antibody (A04163-1).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human THP-1 whole cell lysates,
Lane 2: human U2OS whole cell lysates,
Lane 3: human HEL whole cell lysates,
Lane 4: human RT4 whole cell lysates,
Lane 5: rat small intestine tissue lysates,
Lane 6: rat kidney tissue lysates,
Lane 7: mouse small intestine tissue lysates,
Lane 8: mouse kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NAGA antigen affinity purified polyclonal antibody (A04163-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for NAGA at approximately 60 kDa. The expected band size for NAGA is at 47 kDa.
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human THP-1 whole cell lysates,
Lane 2: human U2OS whole cell lysates,
Lane 3: human HEL whole cell lysates,
Lane 4: human RT4 whole cell lysates,
Lane 5: rat small intestine tissue lysates,
Lane 6: rat kidney tissue lysates,
Lane 7: mouse small intestine tissue lysates,
Lane 8: mouse kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-NAGA antigen affinity purified polyclonal antibody (A04163-1) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for NAGA at approximately 60 kDa. The expected band size for NAGA is at 47 kDa.
Bundle Save
Anti-NAGA Antibody Picoband®
NAGA antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | ELISA, WB |
Tested Applications
NAGA antibody was positively detected by WB in:
human THP-1 whole cell, human U2OS whole cell, human HEL whole cell, human RT4 whole cell, rat small intestine tissue, rat kidney tissue, mouse small intestine tissue, mouse kidney tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.25-0.5 μg/ml
Human, Mouse, Rat
ELISA
0.1-0.5 μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
ELISA
Human
Tested
Recommend
Rat
Tested
Recommend
Mouse
Tested
Recommend
Monkey
Predicted
Predicted
Product Information
Product Name
Anti-NAGA Antibody Picoband®
View all NAGA Antibodies
View all NAGA Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
At -20°C for one year from date of receipt.
After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months.
Avoid repeated freezing and thawing.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Immunogen
E.coli-derived human NAGA recombinant protein (Position: D43-R329). Human NAGAshares 86.7% and 85.4% amino acid (aa) sequence identity with mouse and rat NAGA, respectively.
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
60 kDa
Calculated Molecular Weight
46.6 kDa
Background of NAGA
NAGA encodes the lysosomal enzyme alpha-N-acetylgalactosaminidase, which cleaves alpha-N-acetylgalactosaminyl moieties from glycoconjugates. Mutations in NAGA have been identified as the cause of Schindler disease types I and II (type II also known as Kanzaki disease).
Cite This Product
Anti-NAGA Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A04163-1)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
98%
High Homology
Cow
89%
Moderate Homology
Dog
89%
Moderate Homology
Sheep
89%
Moderate Homology
Rabbit
88%
Moderate Homology
Mouse
86%
Moderate Homology
Rat
85%
Moderate Homology
Zebrafish
70%
Moderate Homology
Drosophila
56%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for NAGA antibody
Review
Have you used Anti-NAGA Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-NAGA Antibody Picoband® performs excellently in relevant applications for ELISA, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A04163-1
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
