Product Info Summary
| SKU: | A09824-1 |
|---|---|
| Size: | 100 µg/vial |
| Reactive Species: | Human, Mouse, Rat |
| Host: | Rabbit |
| Application: | ELISA, Flow Cytometry, IHC, WB |
Customers Who Bought This Also Bought
Product info
Product Name
Anti-SLC6A20 Antibody Picoband™
SKU/Catalog Number
A09824-1
Size
100 µg/vial
Form
Lyophilized
Description
Boster Bio Anti-SLC6A20 Antibody Picoband™ catalog # A09824-1. Tested in ELISA, IHC, WB, Flow Cytometry applications. This antibody reacts with Human, Mouse, Rat.
Storage & Handling
At -20°C for one year from date of receipt. After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months. Avoid repeated freezing and thawing.
Cite This Product
Anti-SLC6A20 Antibody Picoband™ (Boster Biological Technology, Pleasanton CA, USA, Catalog # A09824-1)
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Clone Number
1B9
Isotype
IgG
Immunogen
E.coli-derived human SLC6A20 recombinant protein (Position: S124-A555). Human SLC6A20 shares 91.9% and 90.3% amino acid (aa) sequence identity with mouse and rat SLC6A20, respectively.
*Blocking peptide can be purchased. Costs vary based on immunogen length. Contact us for pricing.
Cross-reactivity
No cross reactivity with other proteins.
Reactive Species
A09824-1 is reactive to SLC6A20 in Human, Mouse, Rat
Applications
A09824-1 is guaranteed for ELISA, Flow Cytometry, IHC, WB Boster Guarantee
Observed Molecular Weight
70 kDa
Calculated molecular weight
65.914kDa
Background of SLC6A20
Solute carrier family 6, member 20 also known as SLC6A20 is a protein which in humans is encoded by the SLC6A20 gene. Transport of small hydrophilic substances across cell membranes is mediated by substrate-specific transporter proteins which have been classified into several families of related genes. The protein encoded by this gene belongs to the sodium:neurotransmitter symporter (SNF) family and functions as a proline transporter expressed in kidney and small intestine. Mutations in this gene are associated with Hyperglycinuria and Iminoglycinuria.
Antibody Validation
Boster validates all antibodies on WB, IHC, ICC, Immunofluorescence, and ELISA with known positive control and negative samples to ensure specificity and high affinity, including thorough antibody incubations.
Innovating Scientists Reward
If you are the first to review this product, or if you have results for a special sample, species or application this product is not validated in, share your results with us and receive product credits you can use towards any Boster products! Applicable to all scientists worldwide.
Submit A Review
Assay dilution & Images
Reconsitution
Adding 0.2 ml of distilled water will yield a concentration of 500 µg/ml.
Assay Dilutions Recommendation
The recommendations below provide a starting point for assay optimization. The actual working concentration varies and should be decided by the user.
Western blot, 0.1-0.25 µg/ml, Human, Rat
Immunohistochemistry, 2-5 µg/ml, Human, Mouse
Flow Cytometry (Fixed), 1-3 µg/1x106 cells, Human
ELISA, 0.1-0.5 µg/ml, Human
Validation Images & Assay Conditions
Click image to see more details

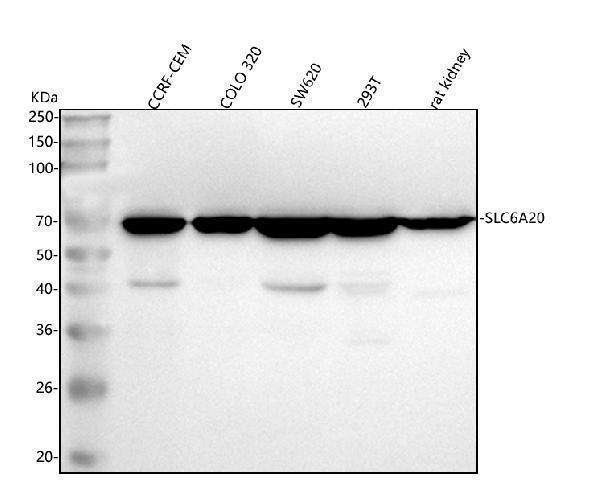

Figure 1. Western blot analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human CCRF-CEM whole cell lysates,
Lane 2: human COLO 320 whole cell lysates,
Lane 3: human SW620 whole cell lysates,
Lane 4: human 293T whole cell lysates,
Lane 5: rat kidney tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-SLC6A20 antigen affinity purified polyclonal antibody (Catalog # A09824-1) at 0.25 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for SLC6A20 at approximately 70 kDa. The expected band size for SLC6A20 is at 66 kDa.
Click image to see more details
Figure 2. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human colon tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 3. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human colon tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 4. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human liver cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 5. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human liver cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 6. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human lung adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 7. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human lung adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 8. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human ovarian cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 9. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human ovarian cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 10. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human rectum adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 11. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of human rectum adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 12. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of mouse colon tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 13. IHC analysis of SLC6A20 using anti-SLC6A20 antibody (A09824-1).
SLC6A20 was detected in a paraffin-embedded section of mouse colon tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 μg/ml rabbit anti-SLC6A20 Antibody (A09824-1) overnight at 4°C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB as the chromogen.
Click image to see more details
Figure 14. Flow Cytometry analysis of 293T cells using anti-SLC6A20 antibody (A09824-1).
Overlay histogram showing 293T cells stained with A09824-1 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-SLC6A20 Antibody (A09824-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Protein Target Info & Infographic
Gene/Protein Information For SLC6A20 (Source: Uniprot.org, NCBI)
Gene Name
SLC6A20
Full Name
Sodium- and chloride-dependent transporter XTRP3
Weight
65.914kDa
Superfamily
sodium:neurotransmitter symporter (SNF) (TC 2.A.22) family
Alternative Names
MGC161475; neurotransmitter transporter RB21A; SIT1; sodium- and chloride-dependent transporter XTRP3; Sodium/imino-acid transporter 1; solute carrier family 6 (neurotransmitter transporter), member 20; solute carrier family 6 (proline IMINO transporter), member 20; Solute carrier family 6 member 20; Transporter rB21A homolog; X transporter protein 3; XT3orphan transporter XT3; Xtrp3 SLC6A20 IMINO, SIT1, XT3, Xtrp3 solute carrier family 6 member 20 sodium- and chloride-dependent transporter XTRP3|X transporter protein 3|neurotransmitter transporter RB21A|orphan transporter XT3|sodium-dependent imino acid transporter 1|sodium/imino-acid transporter 1|solute carrier family 6 (neurotransmitter transporter), member 20|solute carrier family 6 (proline IMINO transporter), member 20|transporter rB21A homolog
*If product is indicated to react with multiple species, protein info is based on the gene entry specified above in "Species".For more info on SLC6A20, check out the SLC6A20 Infographic
We have 30,000+ of these available, one for each gene! Check them out.
In this infographic, you will see the following information for SLC6A20: database IDs, superfamily, protein function, synonyms, molecular weight, chromosomal locations, tissues of expression, subcellular locations, post-translational modifications, and related diseases, research areas & pathways. If you want to see more information included, or would like to contribute to it and be acknowledged, please contact [email protected].
