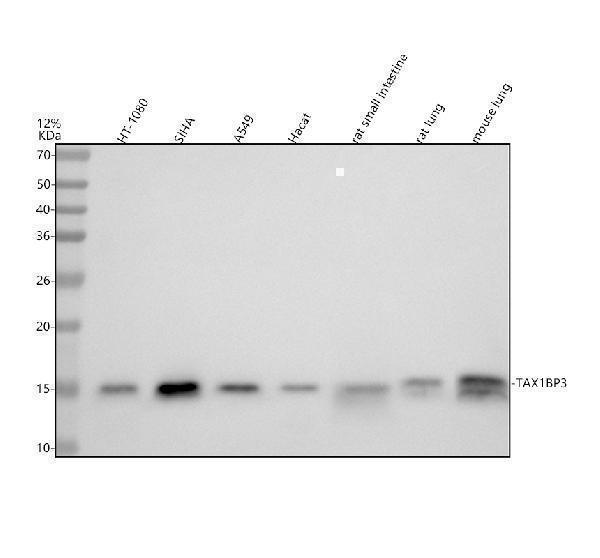

Western blot analysis of TAX1BP3 using anti-TAX1BP3 antibody (M05588).
Electrophoresis was performed on a 12% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HT1080 whole cell lysates,
Lane 2: human SIHA whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human Hacat whole cell lysates,
Lane 5: rat small intestine tissue lysates,
Lane 6: rat lung tissue lysates,
Lane 7: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TAX1BP3 antigen affinity purified monoclonal antibody (M05588) at 1: 500 overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for TAX1BP3 at approximately 14 kDa. The expected band size for TAX1BP3 is at 14 kDa.
