HAVCR1 antibody (A01306) performs well in WB, ELISA (Cap) and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
- Over 1 Publication
Filter:

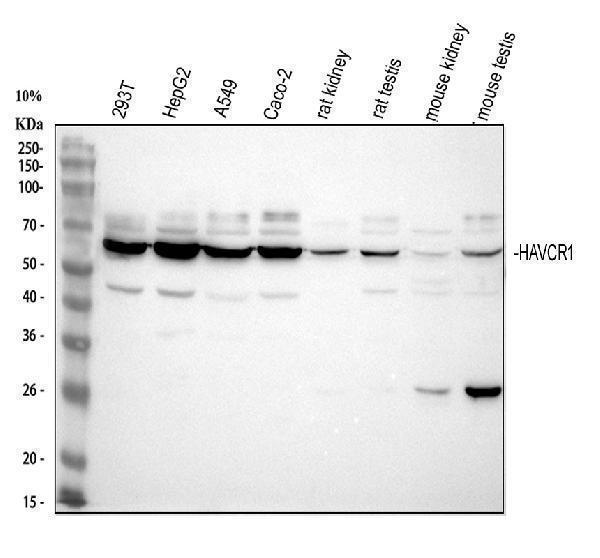

Western blot analysis of HAVCR1 using anti-HAVCR1 antibody (A01306).
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human HepG2 whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human CACO-2 whole cell lysates,
Lane 5: rat kidney tissue lysates,
Lane 6: rat testis tissue lysates,
Lane 7: mouse kidney tissue lysates,
Lane 8: mouse testis tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HAVCR1 antigen affinity purified polyclonal antibody (A01306) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054) at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for HAVCR1 at approximately 55 kDa. The expected band size for HAVCR1 is at 39 kDa.
Electrophoresis was performed on a 10% SDS-PAGE gel at 80V (Stacking gel) / 120V (Resolving gel) for 2 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human 293T whole cell lysates,
Lane 2: human HepG2 whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human CACO-2 whole cell lysates,
Lane 5: rat kidney tissue lysates,
Lane 6: rat testis tissue lysates,
Lane 7: mouse kidney tissue lysates,
Lane 8: mouse testis tissue lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-HAVCR1 antigen affinity purified polyclonal antibody (A01306) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054) at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an ECL Plus Western Blotting Substrate (Catalog # AR1196-200) with Tanon 5200 system. A specific band was detected for HAVCR1 at approximately 55 kDa. The expected band size for HAVCR1 is at 39 kDa.
Designing a Western blot for HAVCR1? The guide covers the expected band size, antibodies backed by real blot images, the controls to run alongside, and protocols taken from published papers.
Open the HAVCR1 Western Blot GuideBundle Save
Anti-TIM 1/HAVCR1 Antibody Picoband®
HAVCR1 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | WB, ELISA (Cap) |
Tested Applications
HAVCR1 antibody was positively detected by WB in:
human 293T whole cell, human HepG2 whole cel, human A549 whole cell, human CACO-2 whole cell, rat kidney tissue, rat testis tissue, mouse kidney tissue, mouse testis tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml
Human
Mouse, Rat
ELISA (Cap)
1-5μg/ml
-
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Product Information
Product Name
Anti-TIM 1/HAVCR1 Antibody Picoband®
View all HAVCR1 Antibodies
View all HAVCR1 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl and 0.2 mg Na2HPO4.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E. coli-derived human TIM 1 recombinant protein (Position: Q58-K289).
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
55 kDa
Calculated Molecular Weight
39.3 kDa
Background of HAVCR1
KIM1 (KIDNEY INJURY MOLECULE 1), also known as HAVCR1, HAVCR or TIM1, is a protein that in humans is encoded by the KIM1 gene. The KIM1 gene is mapped to 5q33.3. Biochemical, mutational, and cell adhesion analyses confirm that Tim1 is capable of homophilic Tim-Tim interactions. The features identified in murine KIM1 are conserved in human KIM1. The KIM1 protein is indeed a receptor for the virus through the infection of canine osteogenic sarcoma cells expressing HAVCR1 with HAV. Using a monoclonal antibody to mouse Tim1, Tim1 is expressed after activation of naive T cells and on T cells differentiated in Th2-polarizing conditions. Ectopic expression of KIM1 during mouse T-cell differentiation leads to production of the Th2-type cytokine Il4, but not the Th1-type cytokine Ifng. KIM1-expressing epithelial cells internalized apoptotic bodies, and Kim1 is directly responsible for phagocytosis in cultured primary rat tubule epithelial cells and in porcine and canine epithelial cell lines.
Cite This Product
Anti-TIM 1/HAVCR1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A01306)
Protocols
Western Blot protocol for HAVCR1 antibody
Publications
Application:
Species:
Identification of PANoptosis hub genes driving immune activation and tubulointerstitial injury in diabetic kidney disease by integrative bioinformatics and machine learning
Published: 2026-03-09
Journal: Frontiers in Immunology
Application: WB
Impact Factor: 5.90
Species: Human
PMID: 41878449
