TIMM10 antibody (A11593-1) performs well in ELISA, Flow Cytometry, IF, IHC, ICC, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:
Flow Cytometry analysis of ANA-1 cells using anti-TIM10/TIMM10 antibody (A11593-1).
Overlay histogram showing ANA-1 cells stained with A11593-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TIM10/TIMM10 Antibody (A11593-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Overlay histogram showing ANA-1 cells stained with A11593-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TIM10/TIMM10 Antibody (A11593-1, 1 μg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 5-10 μg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG (1 μg/1x106) used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Bundle Save
Anti-TIM10/TIMM10 Antibody Picoband®
TIMM10 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | ELISA, Flow Cytometry, IF, IHC, ICC, WB |
Tested Applications

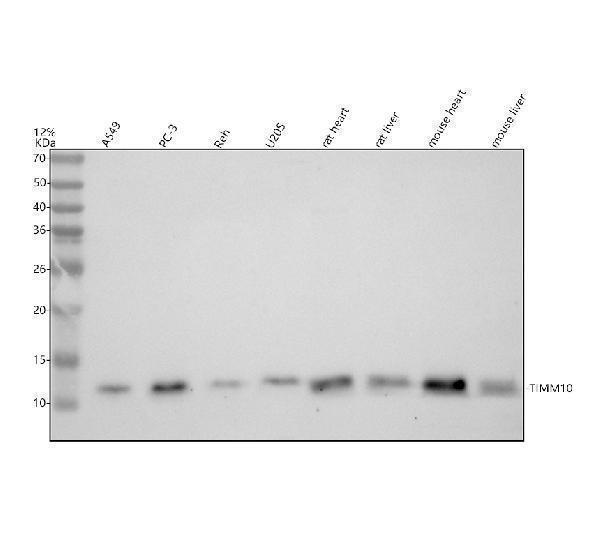

TIMM10 antibody was positively detected by WB in:
human A549 whole cell, human PC-3 whole cell, human REH whole cell, human U2OS whole cell, rat heart tissue, rat liver tissue, mouse heart tissue, mouse liver tissue
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
TIMM10 antibody was positively detected by IHC in:
human liver cancer tissue, human liver tissue, human lung cancer tissue
Use TE buffer pH 9.0 for antigen retrieval; (*) citrate buffer pH 6.0 is an alternative.
TIMM10 antibody was positively detected by IF in:
rat brain tissue
TIMM10 antibody was positively detected by ICC/IF in:
A549 cell
TIMM10 antibody was positively detected by FC in:
ANA-1 cell, PC-3 cell, PC-12 cell
Recommend Dilution
Application
Dilution
Species
Western blot
0.25-0.5 μg/ml
Human, Mouse, Rat
Immunohistochemistry(Paraffin-embedded Section)
2-5 μg/ml
Human
Immunofluorescence
5 μg/ml
Rat
Immunocytochemistry/Immunofluorescence
5 μg/ml
Human
Flow Cytometry (Fixed)
1-3 μg/1x106 cells
Human, Mouse, Rat
ELISA
0.1-0.5 μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Note: For flow cytometry (FCM), validated for fixed cells only. Not validated for FACS or surface flow cytometry using live cells.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
IHC
IF
ELISA
Human
Tested
Tested
Recommend
Recommend
Rat
Tested
Recommend
Tested
Recommend
Mouse
Tested
Recommend
Rabbit
Predicted
Predicted
Predicted
Predicted
Monkey
Predicted
Predicted
Predicted
Predicted
Dog
Predicted
Predicted
Predicted
Predicted
Bovine
Predicted
Predicted
Predicted
Predicted
Sheep
Predicted
Predicted
Predicted
Predicted
Product Information
Product Name
Anti-TIM10/TIMM10 Antibody Picoband®
View all TIMM10 Antibodies
View all TIMM10 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
At -20°C for one year from date of receipt.
After reconstitution, at 4°C for one month. It can also be aliquotted and stored frozen at -20°C for six months.
Avoid repeated freezing and thawing.
Host
Rabbit
Contents
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Clonality
Polyclonal
Immunogen
E.coli-derived human TIM10/TIMM10 recombinant protein (Position: M1-A90). Human TIM10/TIMM10 shares 100% amino acid (aa) sequence identity with both mouse and rat TIM10/TIMM10.
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 μg/ml.
Observed Molecular Weight
10 kDa
Calculated Molecular Weight
10.3 kDa
Background of TIMM10
The mitochondrial protein encoded by this gene belongs to a family of evolutionarily conserved proteins that are organized in heterooligomeric complexes in the mitochondrial intermembrane space. These proteins mediate the import and insertion of hydrophobic membrane proteins into the mitochondrial inner membrane, functioning as intermembrane space chaperones for the highly insoluble carrier proteins.
Cite This Product
Anti-TIM10/TIMM10 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A11593-1)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Mouse
100%
High Homology
Rat
100%
High Homology
Rabbit
100%
High Homology
Monkey
100%
High Homology
Dog
99%
High Homology
Cow
98%
High Homology
Sheep
98%
High Homology
Zebrafish
79%
Moderate Homology
Drosophila
61%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for TIMM10 antibody
Immunohistochemistry (IHC) protocol for TIMM10 antibody
Immunofluorescence (IF) protocol for TIMM10 antibody
Immunocytochemistry/Immunofluorescence (ICC/IF) protocol for TIMM10 antibody
Flow Cytometry (FC) protocol for TIMM10 antibody
Review
Have you used Anti-TIM10/TIMM10 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-TIM10/TIMM10 Antibody Picoband® performs excellently in relevant applications for ELISA, Flow Cytometry, IF, IHC, ICC, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A11593-1
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
Update date:
Oct 10, 2026
