TLR3 antibody (A00197) performs well in ELISA, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
- Over 3 Publications
Filter:

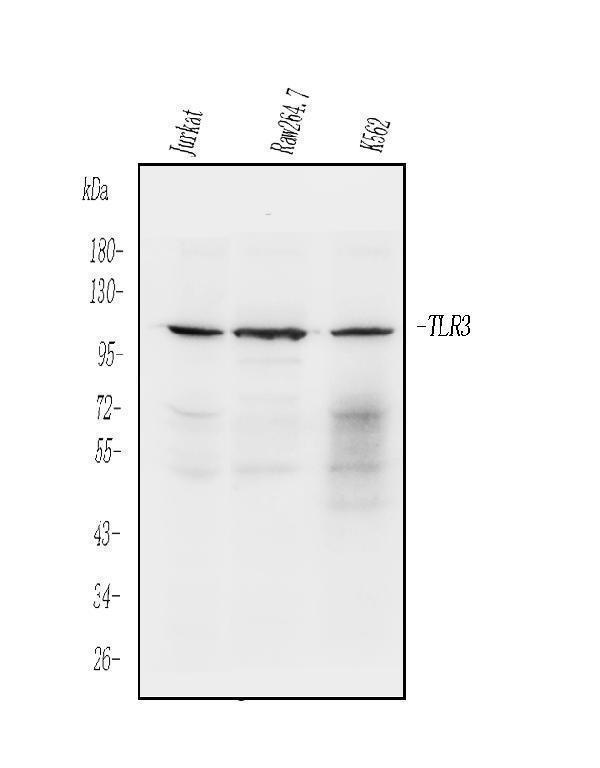

Western blot analysis of TLR3 using anti-TLR3 antibody (A00197).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: mouse Raw264.7 whole cell lysates,
Lane 3: human K562 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TLR3 antigen affinity purified polyclonal antibody (Catalog # A00197) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TLR3 at approximately 120 kDa. The expected band size for TLR3 is at 104 kDa.
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: mouse Raw264.7 whole cell lysates,
Lane 3: human K562 whole cell lysates.
After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-TLR3 antigen affinity purified polyclonal antibody (Catalog # A00197) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for TLR3 at approximately 120 kDa. The expected band size for TLR3 is at 104 kDa.
Bundle Save
Anti-TLR3 Antibody Picoband®
TLR3 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | ELISA, WB |
Tested Applications
TLR3 antibody was positively detected by WB in:
human Jurkat whole cell, mouse Raw2647 whole cell, human K562 whole cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml
ELISA
0.1-0.5μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
ELISA
Human
Tested
Recommend
Mouse
Tested
Recommend
Rat
Recommend
Monkey
Predicted
Predicted
Product Information
Product Name
Anti-TLR3 Antibody Picoband®
View all TLR3 Antibodies
View all TLR3 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
E. coli-derived human TLR3 recombinant protein (Position: F502-D648).
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
120 kDa
Calculated Molecular Weight
103.8 kDa
Background of TLR3
TLR3 (Toll-like receptor 3) also known as CD283 (cluster of differentiation 283) is a protein that in humans is encoded by the TLR3 gene. The TLR3 gene is mapped to chromosome 4q35 by fluorescence in situ hybridization. TLR3 is a member of the Toll-like receptor family of pattern recognition receptors of the innate immune system. TLRs are highly conserved from Drosophila to humans and share structural and functional similarities. They recognize pathogen-associated molecular patterns (PAMPs) that are expressed on infectious agents, and mediate the production of cytokines necessary for the development of effective immunity. The various TLRs exhibit different patterns of expression. This receptor is most abundantly expressed in placenta and pancreas, and is restricted to the dendritic subpopulation of the leukocytes. It recognizes dsRNA associated with viral infection, and induces the activation of NF-κB and the production of type I interferons. It may thus play a role in host defense against viruses. TLR3 recognizes double-stranded RNA, a form of genetic information carried by some viruses such as retroviruses. Upon recognition, TLR3 induces the activation of NF-κB to increase production of type I interferons which signal other cells to increase their antiviral defenses. Double-stranded RNA is also recognised by the cytoplasmic receptors RIG-I and MDA-5. TLR3 displays a protective role in mouse models of atherosclerosis.[4] In addition, TLR3 activators show effects on human vascular cells.
Cite This Product
Anti-TLR3 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A00197)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
96%
High Homology
Dog
86%
Moderate Homology
Sheep
86%
Moderate Homology
Cow
85%
Moderate Homology
Rat
82%
Moderate Homology
Mouse
82%
Moderate Homology
Rabbit
81%
Moderate Homology
Zebrafish
60%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for TLR3 antibody
Publications
Application:
Species:
Astragalus polysaccharide alleviated the inhibition of CSFV C-strain replication caused by PRRSV via the TLRs/NF‑κB/TNF-α pathways
Published: 2022-07-01
Journal: VIRUS RESEARCH
Application: WB
Impact Factor: 6.29
Species: Piglet
PMID: 35788015
Bioinformatic and biochemical studies of formononetin against liver injure
Published: 2021-02-16
Journal: LIFE SCIENCES
Application: WB
Impact Factor: 5.04
Species: Mouse
PMID: 33607154
A Study of the Immunoregulatory Function of TLR3 and TLR4 on Mesenchymal Stem Cells in Ankylosing Spondylitis
Published: 2019-10-09
Journal: STEM CELLS AND DEVELOPMENT
Application: IF
Impact Factor: 3.15
Species: Human
PMID: 31456484
Review
Have you used Anti-TLR3 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-TLR3 Antibody Picoband® performs excellently in relevant applications for ELISA, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A00197
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
