VIPR1 antibody (A04345) performs well in IHC, WB and shows reactivity with Human, Mouse, Rat.
- Validated for inter-lot consistency, specificity, and reproducibility
- Committed to quality since 1993
Filter:

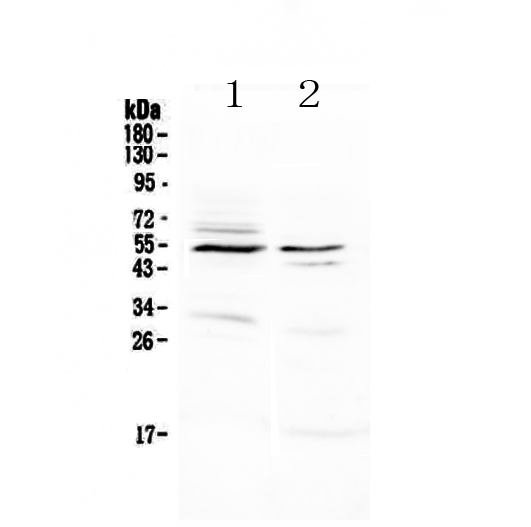

Western blot analysis of VIP Receptor 1 using anti-VIP Receptor 1 antibody (A04345).
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human A431 cell lysates,
Lane 2: human PANC-1 cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-VIP Receptor 1 antigen affinity purified polyclonal antibody (Catalog # A04345) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for VIP Receptor 1 at approximately 52KD. The expected band size for VIP Receptor 1 is at 52KD.
Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human A431 cell lysates,
Lane 2: human PANC-1 cell lysates.
After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-VIP Receptor 1 antigen affinity purified polyclonal antibody (Catalog # A04345) at 0.5 μg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002) with Tanon 5200 system. A specific band was detected for VIP Receptor 1 at approximately 52KD. The expected band size for VIP Receptor 1 is at 52KD.
Bundle Save
Anti-VIP Receptor 1/VIPR1 Antibody Picoband®
VIPR1 antibody
| Reactive Species | Host | Application |
|---|---|---|
| Human, Mouse, Rat | Rabbit | IHC, WB |
Tested Applications
VIPR1 antibody was positively detected by WB in:
human A431 cell, human PANC-1 cell
Suggested blocking solution with 5% non-fat milk or BSA; (*)Recommended protein loading: 20-40 ug per lane
Recommend Dilution
Application
Dilution
Species
Western blot
0.1-0.5μg/ml
Immunohistochemistry (Paraffin-embedded Section)
0.5-1μg/ml
* It is recommended to optimize the amount of this reagent in each experimental system to achieve the best results.
Reactive Data
Filter:
Boster Guarantee:What is this?
WB
IHC
Human
Tested
Recommend
Mouse
Recommend
Rat
Recommend
Monkey
Predicted
Predicted
Rabbit
Predicted
Predicted
Bovine
Predicted
Predicted
Sheep
Predicted
Predicted
Product Information
Product Name
Anti-VIP Receptor 1/VIPR1 Antibody Picoband®
View all VIPR1 Antibodies
View all VIPR1 Antibodies
Form
Lyophilized
Uniprot
Gene ID
Storage & Handling
Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Host
Rabbit
Contents
Each vial contains 4mg Trehalose, 0.9mg NaCl, 0.2mg Na2HPO4, 0.05mg NaN3.
Clonality
Polyclonal
Isotype
Rabbit IgG
Immunogen
A synthetic peptide corresponding to a sequence at the C-terminus of human VIP Receptor 1, which shares 84% amino acid (aa) sequence identity with both mouse and rat VIP Receptor 1.
Cross-Reactivity
No cross-reactivity with other proteins.
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Observed Molecular Weight
52 kDa
Calculated Molecular Weight
51.5 kDa
Background of VIPR1
VIPR1 (Vasoactive intestinal polypeptide receptor 1),also known as VIPR,HVR1, is a protein that in humans is encoded by the VIPR1 gene. Distinct subsets of neural, respiratory, gastrointestinal, and immune cells bear specific high-affinity G protein-coupled receptors for VIP, such as VIPR1. The VIPR1 gene is mapped on 3p22.1. The VIPR1 gene was found to span approximately 22 kb and to be comprised of 13 exons (ranging from 42 to 1,400 bp) and 12 introns (ranging from 0.3 to 6.1 kb). One encodes a VIP receptor consisting of 460 amino acids and having 7 putative transmembrane domains, as do other G protein-coupled receptors. Patients with idiopathic achalasia show a significant difference in the distribution of SNPs affecting VIPR1.
Cite This Product
Anti-VIP Receptor 1/VIPR1 Antibody Picoband® (Boster Biological Technology, Pleasanton CA, USA, Catalog # A04345)
Antibody Homology Across Species
The results generated by this homology analysis tool for commonly used animal species are shown below. For unlisted species, please refer to the homology analysis between the immunogen sequence and the corresponding species.
A homology of ≥90% is recommended. Generally, higher homology indicates a greater potential for cross-species reactivity. However, protein expression levels may vary among different species, tissues, and cell types. Therefore, the homology analysis results are for reference only and do not guarantee antibody cross-reactivity or experimental performance.
Human
100%
High Homology
Monkey
100%
High Homology
Rabbit
96%
High Homology
Cow
92%
High Homology
Sheep
92%
High Homology
Mouse
84%
Moderate Homology
Rat
84%
Moderate Homology
Dog
80%
Moderate Homology
Zebrafish
60%
Low homology
Homology ≥ 90%High Homology
70% ≤ Homology < 90%Moderate Homology
Homology < 70%Low homology
Protocols
Western Blot protocol for VIPR1 antibody
Review
Have you used Anti-VIP Receptor 1/VIPR1 Antibody Picoband®?
Submit a review and receive $370 in product credits, a $185 Amazon gift card, or our carefully curated gift bundles.
Product Promise
We promise Anti-VIP Receptor 1/VIPR1 Antibody Picoband® performs excellently in relevant applications for IHC, WB. If it doesn't perform as promised, we will refund the product. Learn more
In stock
Order Product
A04345
Buy one primary antibody get one 0.5ml HRP or Biotin secondary antibody for free.
*Sample sizes are prepared on demand and will take extra lead time. (cannot be conjugated)
$370.00
Troubleshooting
Boster Guarantee
Guaranteed product quality
We promise all of our products perform as described in datasheets.
This product is for Research Use Only. Not for use in diagnostic procedures.
