CHRM1 · Western blot design guide
CHRM1 Western Blot Planning Guide
Plan a CHRM1 Western blot around the catalog-observed 51.4 kDa band, image-backed A04081 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
CHRM1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 51.4 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Cerebellum | |
| Negative control | Adipose tissue |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 51.4 kDa |
| ⓘ | Localization | Cell membrane / Postsynaptic cell membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Sample controls for CHRM1 Western blot
🧪Use Cerebellum as the first positive-control candidate and Adipose tissue as the HPA Not detected negative candidate.
Positive control: Cerebellum (High)
Negative control: Adipose tissue (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for CHRM1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cerebellum | Reported tissue cells | High | Protein (HPA) | HPA → |
| Hippocampus | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Cerebral cortex | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Testis | Reported tissue cells | Low | Protein (HPA) | HPA → |
Section 1
What Is the Expected CHRM1 Western Blot Band Size?
Use the product-observed 51.4 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 51.4 kDa | Matches the authoritative product WB observation. |
| 51.4 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected CHRM1 appearancePlan around 51.4 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 51.4 kDa; use this as the primary experimental expectation. |
| Calculated mass | 51.4 kDa from UniProt P11229; retain as context. |

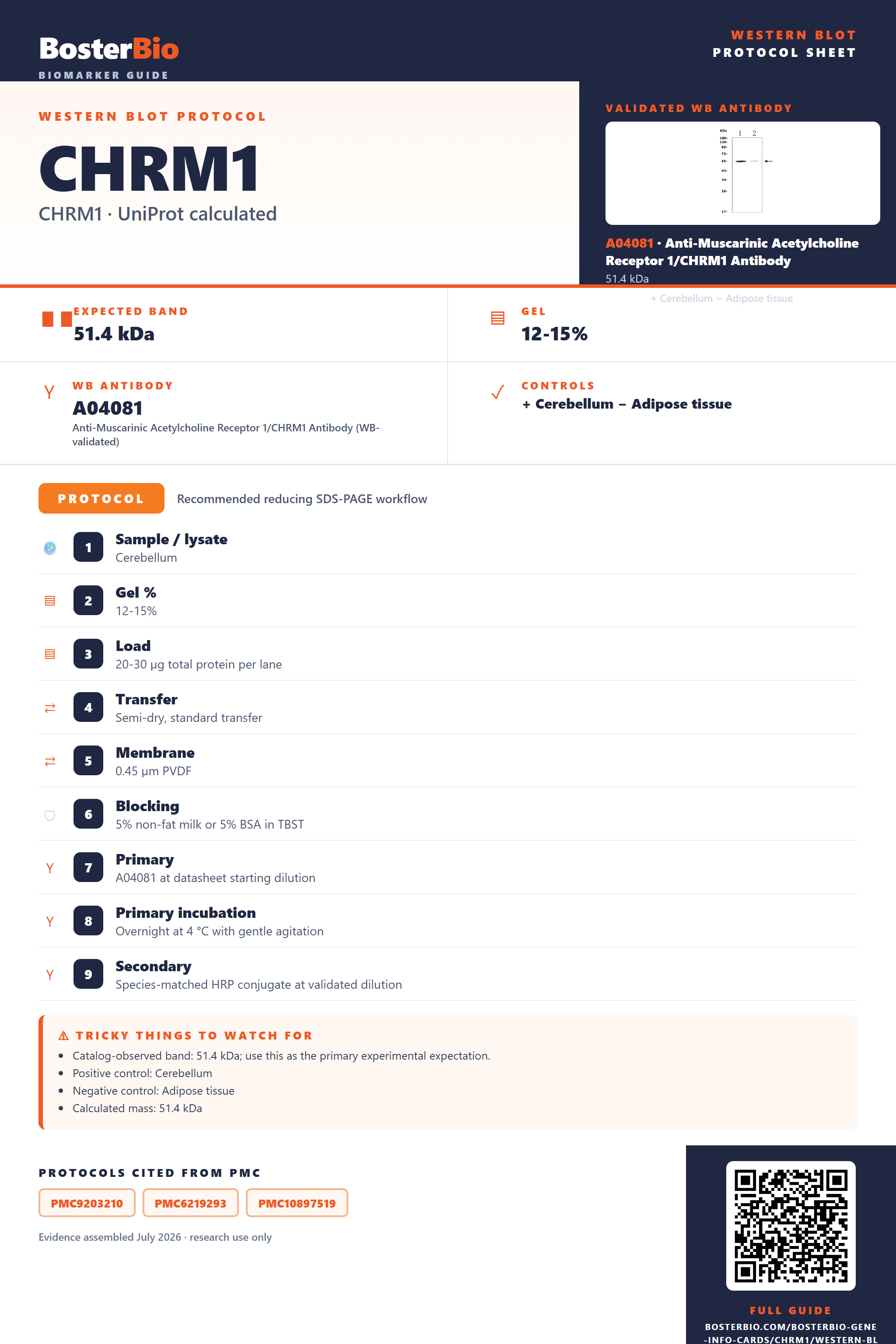

| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A04081. |
| Situation | Likely cause | Next action |
|---|---|---|
| 51.4 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing CHRM1 band
A04081 · CHRM1Observed 51.4 kDa · product-specific WB image
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Section 2
Real Curated CHRM1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Cerebellum |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A04081 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 4
Advanced CHRM1 Western Blot Tips
Deeper troubleshooting and optimisation questions for CHRM1, answered from its protein features.
Which band should guide the blot?
Use 51.4 kDa, the observation attached to the authoritative A04081 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 51.4 kDa expectation.
Which positive control should I start with?
Start with Cerebellum, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Adipose tissue as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for CHRM1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A04081 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
Compare only the supplied target-verified records: PMC8974147, PMC9203210, PMC6219293.
Boster reagents
CHRM1 Western Blot Reagents
Human/Mouse/Rat-reactive CHRM1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-Muscarinic Acetylcholine Receptor 1/CHRM1 Antibody Picoband®
Cat # A04081
Reactivity: Human, Mouse, Rat
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt P11229
- Human Protein Atlas — CHRM1
- A04081 product record
- PMC8974147 — Germacrone alleviates okadaic acid-induced neurotoxicity in PC12 cells via M1 muscarinic receptor-mediated Galphaq (Gq)/phospholipase C beta (PLCβ)/ protein kinase C (PKC) signaling.
- PMC9203210 — Autophagy Induced by Muscarinic Acetylcholine Receptor 1 Mediates Migration and Invasion Targeting Atg5 via AMPK/mTOR Pathway in Prostate Cancer.
- PMC6219293 — Muscarinic acetylcholine receptor M1 mediates prostate cancer cell migration and invasion through hedgehog signaling.
