CTBP1 · Western blot design guide
CTBP1 Western Blot Planning Guide
Plan a CTBP1 Western blot around the catalog-observed 47.5 kDa band, image-backed PA1570 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
CTBP1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 47.5 kDa observed | |
| Observed band | 47.5 kDa observed | |
| Gel | 12-15% | |
| Positive control | Caudate | |
| Negative control | Use knockout/knockdown or orthogonal negative |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 47.5 kDa |
| ⓘ | Localization | Cytoplasm / Nucleus |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1

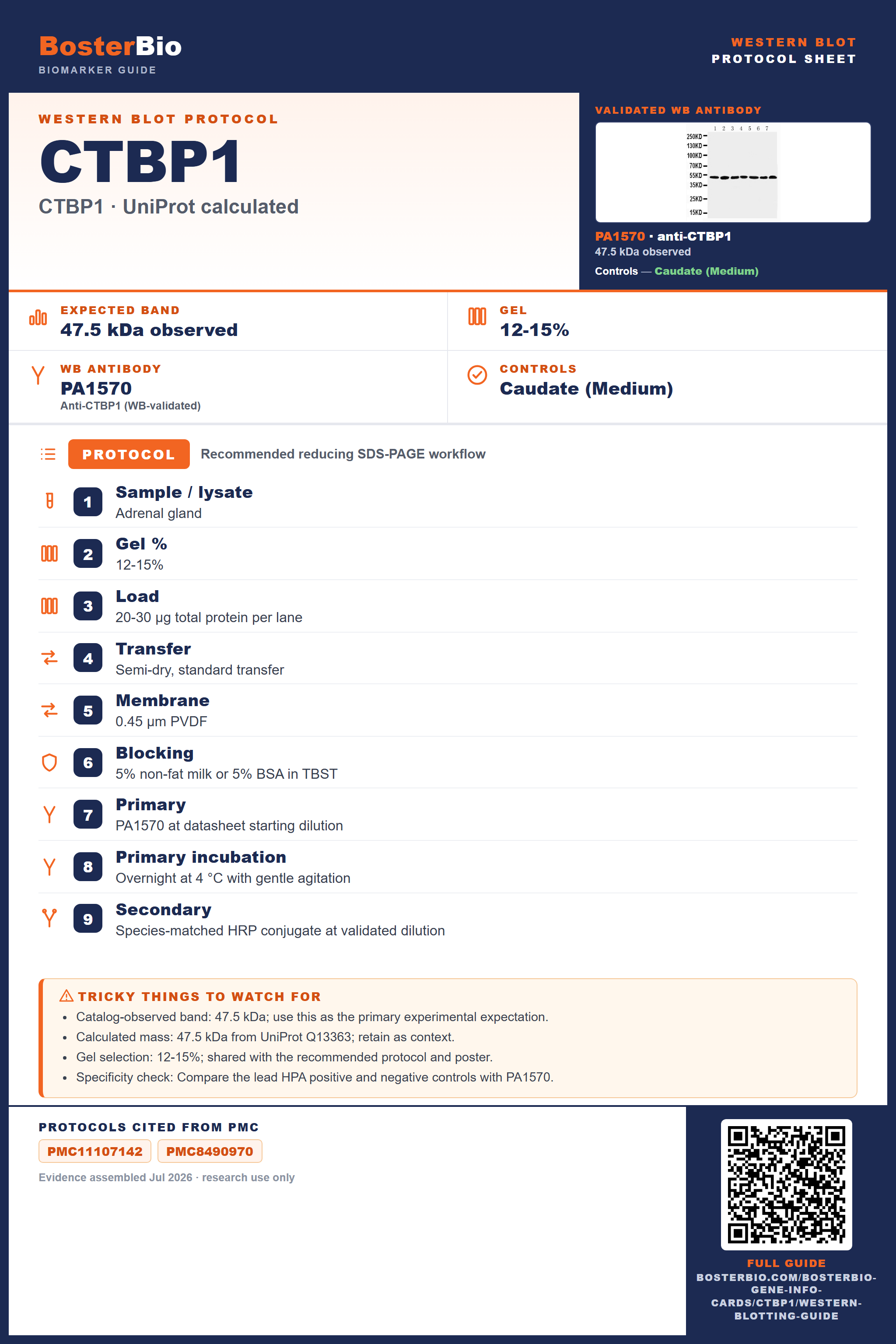

Real Curated CTBP1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PA1570 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected CTBP1 Western Blot Band Size?
Use the product-observed 47.5 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 47.5 kDa | Matches the authoritative product WB observation. |
| 47.5 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected CTBP1 appearancePlan around 47.5 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 47.5 kDa; use this as the primary experimental expectation. |
| Calculated mass | 47.5 kDa from UniProt Q13363; retain as context. |
| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PA1570. |
| Situation | Likely cause | Next action |
|---|---|---|
| 47.5 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing CTBP1 band
PA1570 · CTBP1Observed 47.5 kDa · product-specific WB image
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for CTBP1 Western blot
🧪Use Caudate as the first positive-control candidate and retain an orthogonal negative control.
Positive control: Caudate (Medium)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for CTBP1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Caudate | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Adrenal gland | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Bone marrow | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Liver | Reported tissue cells | Low | Protein (HPA) | HPA → |
| Breast | Reported tissue cells | Low | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
The available HPA profile lists no reliably-negative tissue for CTBP1 (a broadly-expressed target). Use a CTBP1 knockdown (siRNA/shRNA) or knockout lysate as the negative control and confirm signal loss versus the parental lysate.
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced CTBP1 Western Blot Tips
Deeper troubleshooting and optimisation questions for CTBP1, answered from its protein features.
Which band should guide the blot?
Use 47.5 kDa, the observation attached to the authoritative PA1570 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 47.5 kDa expectation.
Which positive control should I start with?
Start with Caudate, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use a target knockdown/knockout control when no HPA Not detected tissue is available.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for CTBP1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PA1570 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
CTBP1 Western Blot Reagents
Human/Mouse/Rat-reactive CTBP1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-C-terminal-binding protein 1 CtBP1 Antibody Picoband®
Cat # PA1570
Real WB data
Anti-CtBP1 Antibody Picoband®
Cat # PB9425
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
