FGF11 · Western blot design guide
FGF11 Western Blot Planning Guide
Plan a FGF11 Western blot around the catalog-observed 25 kDa band, image-backed A13819-2 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
FGF11 Western Blot Experimental Design Guide
Expected bands, documented protocol parameters, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 25 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 12-15% | |
| Positive control | Adrenal gland | |
| Negative control | Bone marrow |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 25 kDa |
| ⓘ | Localization | Not reported |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1

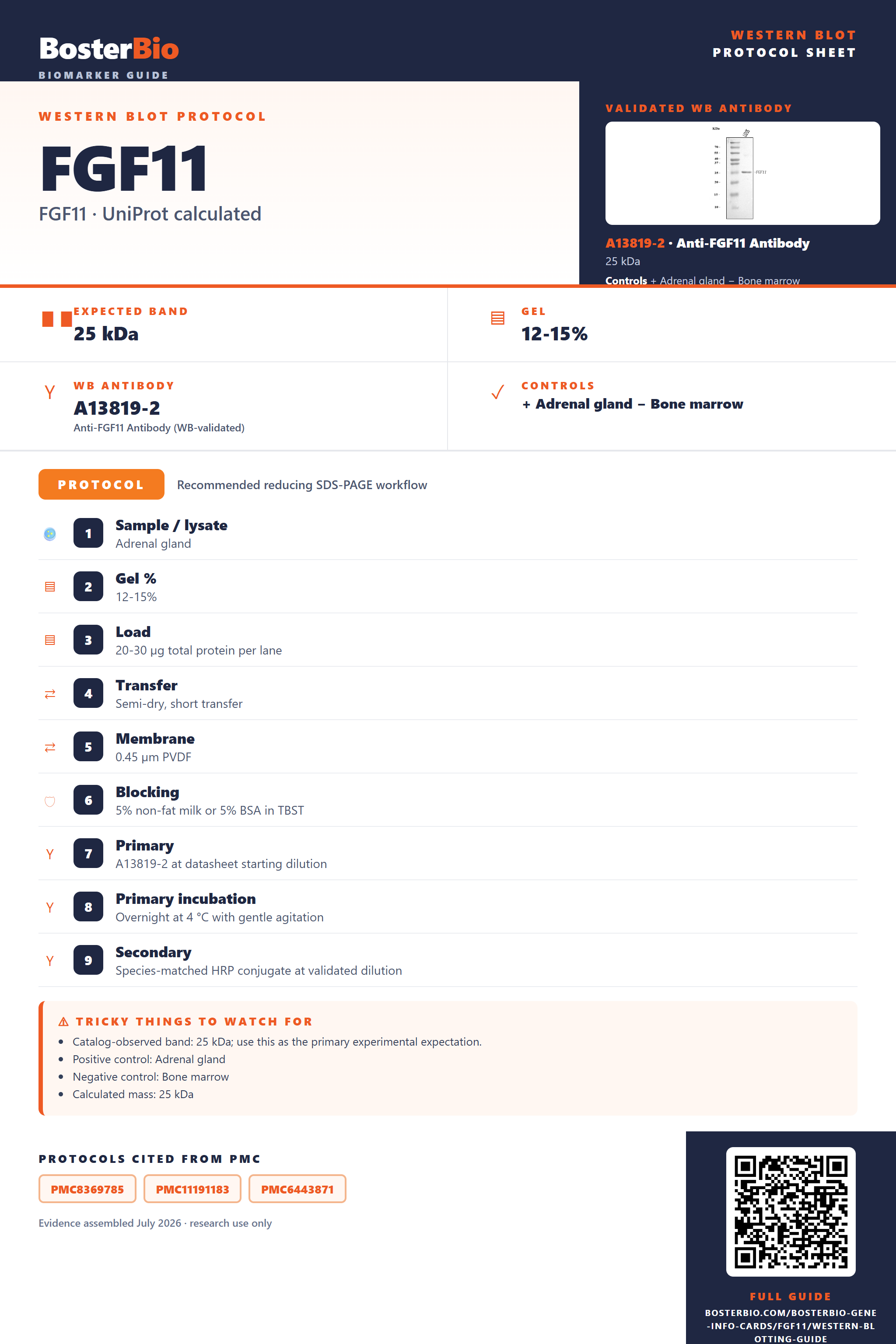

Real Curated FGF11 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 12-15% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, short transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A13819-2 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected FGF11 Western Blot Band Size?
Use the product-observed 25 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 25 kDa | Matches the authoritative product WB observation. |
| 25 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected FGF11 appearancePlan around 25 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 25 kDa; use this as the primary experimental expectation. |
| Calculated mass | 25 kDa from UniProt Q92914; retain as context. |
| Gel selection | 12-15%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A13819-2. |
| Situation | Likely cause | Next action |
|---|---|---|
| 25 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing FGF11 band
A13819-2 · FGF11
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for FGF11 Western blot
🧪Use Adrenal gland as the first positive-control candidate and Bone marrow as the HPA Not detected negative candidate.
Positive control: Adrenal gland (High)
Negative control: Bone marrow (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for FGF11
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adrenal gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Testis | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Appendix | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Tonsil | Reported tissue cells | Medium | Protein (HPA) | HPA → |
Section 3
Advanced FGF11 Western Blot Tips
Deeper troubleshooting and optimisation questions for FGF11, answered from its protein features.
Which band should guide the blot?
Use 25 kDa, the observation attached to the authoritative A13819-2 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 25 kDa expectation.
Which positive control should I start with?
Start with Adrenal gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Bone marrow as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 12-15% consistently across the quick facts, protocol table, and poster.
What transfer method to use for FGF11 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A13819-2 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
FGF11 Western Blot Reagents
Human-reactive FGF11 Western blot reagents with authoritative product imagery.
Real WB data
Anti-FGF11 Antibody Picoband®
Cat # A13819-2
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q92914
- Human Protein Atlas — FGF11
- A13819-2 product record
- PMC8369785 — Fibroblast growth factor 11 (FGF11) promotes non-small cell lung cancer (NSCLC) progression by regulating hypoxia signaling pathway (Journal of translational medicine, 2021)
- PMC11191183 — Circ_0004851 regulates the molecular mechanism of miR-296-3p/FGF11 in the influence of high iodine on PTC (Journal of translational medicine, 2024)
- PMC13255211 — Silencing of USP22 promotes FGF11 degradation to attenuates renal fibrosis in diabetic kidney disease (Renal failure, 2026)
