GRM2 · Western blot design guide
GRM2 Western Blot Planning Guide
Plan a GRM2 Western blot around the catalog-observed 95.6 kDa band, image-backed A06123-1 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use

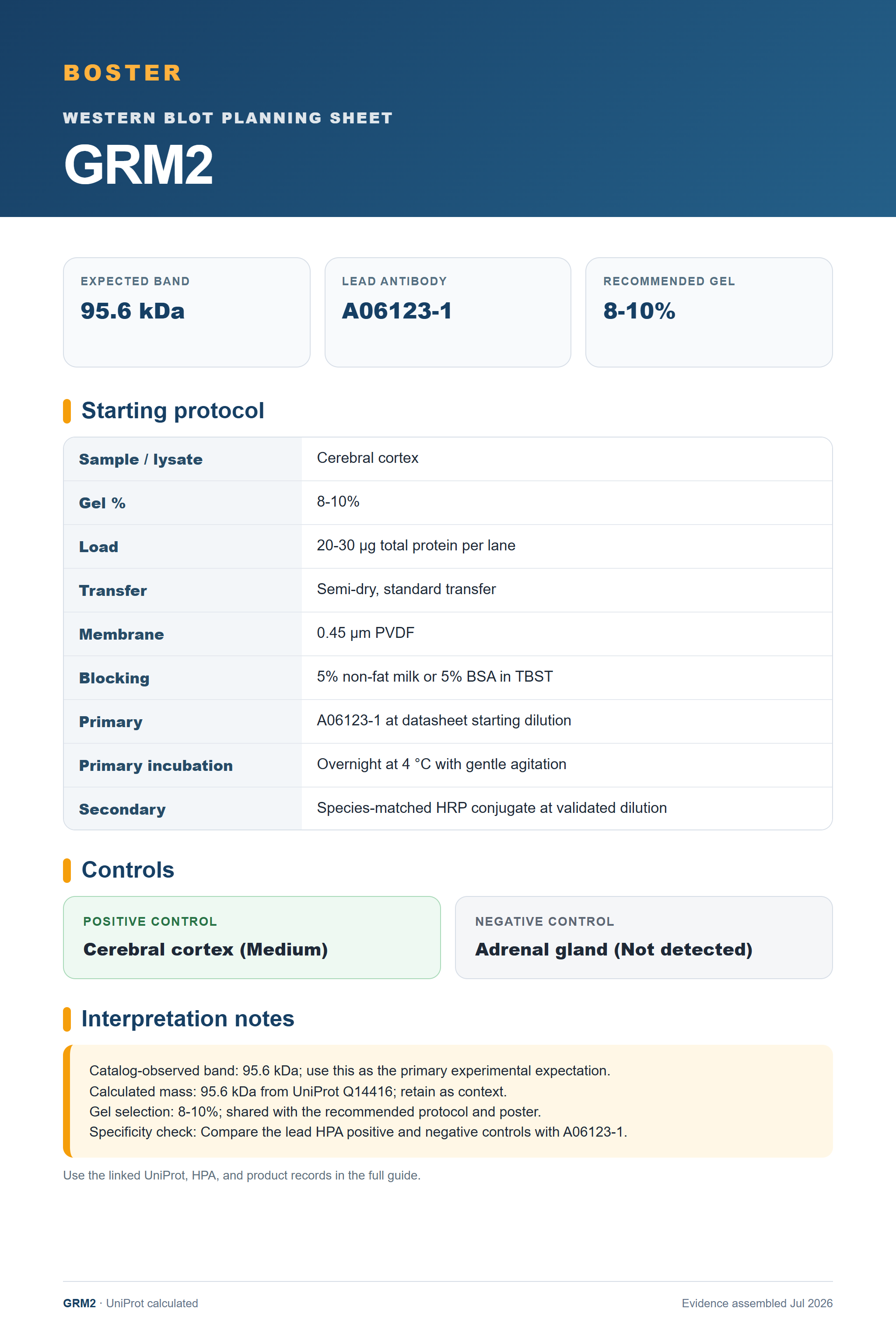

GRM2 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 95.6 kDa | |
| Observed band | Not reported — verify product WB image | |
| Gel | 8-10% | |
| Positive control | Cerebral cortex | |
| Negative control | Adrenal gland |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 95.6 kDa |
| ⓘ | Localization | Cell membrane / Synapse |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1
Real Curated GRM2 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Cerebral cortex |
| Gel % | 8-10% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | A06123-1 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected GRM2 Western Blot Band Size?
Use the product-observed 95.6 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 95.6 kDa | Matches the authoritative product WB observation. |
| 95.6 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected GRM2 appearancePlan around 95.6 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 95.6 kDa; use this as the primary experimental expectation. |
| Calculated mass | 95.6 kDa from UniProt Q14416; retain as context. |
| Gel selection | 8-10%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with A06123-1. |
| Situation | Likely cause | Next action |
|---|---|---|
| 95.6 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing GRM2 band
A06123-1 · GRM2
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for GRM2 Western blot
🧪Use Cerebral cortex as the first positive-control candidate and Adrenal gland as the HPA Not detected negative candidate.
Positive control: Cerebral cortex (Medium)
Negative control: Adrenal gland (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for GRM2
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart — click any row's HPA link to view the source.
Section 3
Advanced GRM2 Western Blot Tips
Deeper troubleshooting and optimisation questions for GRM2, answered from its protein features.
Which band should guide the blot?
Use 95.6 kDa, the observation attached to the authoritative A06123-1 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 95.6 kDa expectation.
Which positive control should I start with?
Start with Cerebral cortex, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Adrenal gland as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 8-10% consistently across the quick facts, protocol table, and poster.
What transfer method to use for GRM2 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should A06123-1 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
GRM2 Western Blot Reagents
Human/Mouse/Rat-reactive GRM2 Western blot reagents with authoritative product imagery.
Real WB data
Anti-Metabotropic glutamate receptor 2/GRM2 Antibody Picoband®
Cat # A06123-1
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
References
- UniProt Q14416
- Human Protein Atlas — GRM2
- A06123-1 product record
- PMC5659915 — Reduced Levels of mGlu2 Receptors within the Prelimbic Cortex Are Not Associated with Elevated Glutamate Transmission or High Alcohol Drinking (Alcoholism, clinical and experimental research, 2017)
