HNRNPH1 Western Blot Planning Guide

Plan a HNRNPH1 Western blot around the catalog-observed 49.2 kDa band, image-backed A07691 evidence, HPA controls, and verified protocol records.

Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use

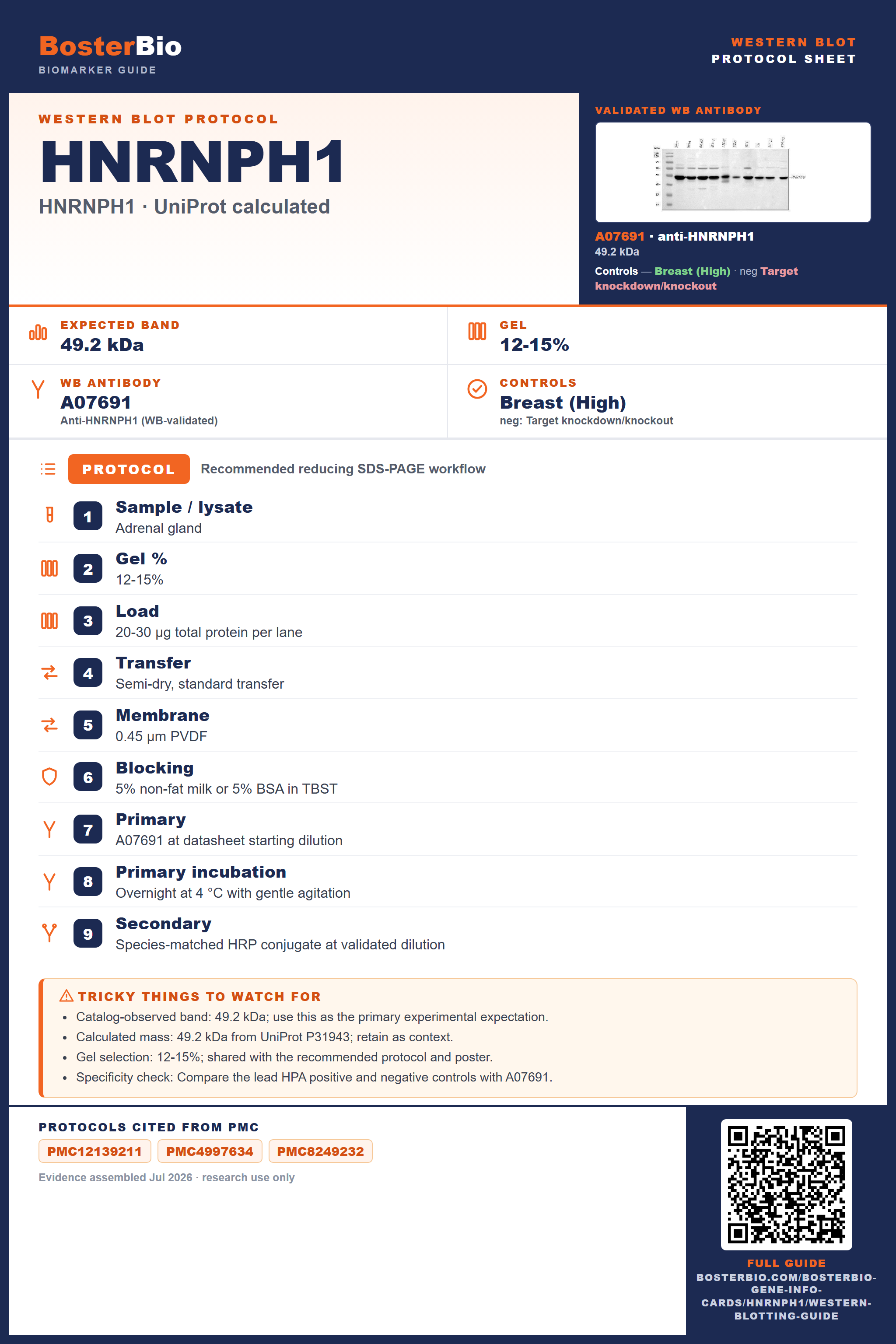

Western blot protocol sheet for HNRNPH1 (HNRNPH1): expected band 49.2 kDa, antibody A07691, and PMC-cited SDS-PAGE protocol steps

Band Protocols Controls Antibodies

HNRNPH1 Western Blot Experimental Design Guide

Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.

Must know before running

	Expected band	49.2 kDa
	Observed band	Not reported — verify product WB image
	Gel	12-15%
	Positive control ⓘ	Breast
	Negative control ⓘ	Target knockdown/knockout

Important caveats

Reasons your observed band may differ from the expected size.

ⓘ	Calculated mass	49.2 kDa
ⓘ	Localization	Nucleus, nucleoplasm
ⓘ	Processing / PTM	Record-dependent
ⓘ	Reactivity	Human / Mouse / Rat

Sample controls for HNRNPH1 Western blot

🧪Use Breast as the first positive-control candidate; no defensible HPA Not detected tissue was available, so use a target knockdown/knockout negative control.

Positive control: Breast (High)

Negative control: Target knockdown/knockout

HPA protein score determines control status; other expression data is supporting context only.

HPA tissue expression evidence for HNRNPH1

Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.

Positive expression · recommended positive controls

Tissue	Cell type	Level	Evidence	Source
Breast	Reported tissue cells	High	Protein (HPA)	HPA →
Adrenal gland	Reported tissue cells	High	Protein (HPA)	HPA →
Appendix	Reported tissue cells	High	Protein (HPA)	HPA →
Bone marrow	Reported tissue cells	High	Protein (HPA)	HPA →

Undetected expression · recommended negative controls

Tissue	Cell type	Level	Evidence	Source

No HPA Not detected tissue is available; use a target knockdown/knockout negative control.

Section 1

What Is the Expected HNRNPH1 Western Blot Band Size?

Use the product-observed 49.2 kDa band as the primary planning value and retain the UniProt calculated mass as context.

What am I looking at on my blot?
49.2 kDa	Matches the authoritative product WB observation.
49.2 kDa calculated	Use as UniProt context, not as a replacement observed band.
Unexpected additional signal	Do not assign identity without orthogonal positive/negative controls.

💡Expected HNRNPH1 appearancePlan around 49.2 kDa and keep the calculated mass as supporting context.

How each factor affects band size
Catalog-observed band	49.2 kDa; use this as the primary experimental expectation.
Calculated mass	49.2 kDa from UniProt P31943; retain as context.
Gel selection	12-15%; shared with the recommended protocol and poster.
Specificity check	Compare the lead HPA positive and negative controls with A07691.

Why is my band missing or off?
Situation	Likely cause	Next action
49.2 kDa	Matches the authoritative product WB observation.	Confirm with orthogonal controls and the linked product record.
Additional band	May reflect processing, modification, or non-specific signal.	Run a dilution series and compare positive/negative controls.
Weak signal	Target abundance or transfer may be limiting.	Verify transfer, increase positive-control abundance, and bracket exposure.

Sources: UniProt P31943 Human Protein Atlas product datasheet (A07691)

Experiment evidence

Western blot images showing HNRNPH1 band

A07691 · HNRNPH1 — observed 49.2 kDa WB validation

A07691 · HNRNPH1Observed 49.2 kDa · product-specific WB image

← swipe / scroll for more images →

Real WB data behind the band-size expectations in this section.

Section 2

Real Curated HNRNPH1 Western Blot Protocols

Start with the molecular-weight rule, then compare verified publication-derived conditions.

Recommended Western blot protocol parameters
Sample / lysate	Adrenal gland
Gel %	12-15%
Load	20-30 µg total protein per lane
Transfer	Semi-dry, standard transfer
Membrane	0.45 µm PVDF
Blocking	5% non-fat milk or 5% BSA in TBST
Primary	A07691 at datasheet starting dilution
Primary incubation	Overnight at 4 °C with gentle agitation
Secondary	Species-matched HRP conjugate at validated dilution
Wash	3 × 5 min in TBST
Detection	Chemiluminescent substrate
Exposure	Bracket exposures to avoid saturation

Section 4

Advanced HNRNPH1 Western Blot Tips

Deeper troubleshooting and optimisation questions for HNRNPH1, answered from its protein features.

Which band should guide the blot?

Use 49.2 kDa, the observation attached to the authoritative A07691 WB record.

How should calculated mass be interpreted?

Treat the UniProt calculated mass as context; it does not replace the catalog-observed 49.2 kDa expectation.

Which positive control should I start with?

Start with Breast, the lead HPA protein-expression candidate.

Which negative control is defensible?

Use a target knockdown/knockout control when no HPA Not detected tissue is available.

Which gel should I use?

Use 12-15% consistently across the quick facts, protocol table, and poster.

What transfer method to use for HNRNPH1 Western blot?

Use the transfer method in the recommended protocol and verify transfer before blocking.

How should A07691 be started?

Start at the linked datasheet condition and run a three-point primary-antibody dilution test.

Which publication-derived protocols can I compare?

Compare only the supplied target-verified records: PMC12139211, PMC4997634, PMC8249232.
