HSP90AB1 · Western blot design guide
HSP90AB1 Western Blot Planning Guide
Plan a HSP90AB1 Western blot around the catalog-observed 83.3 kDa band, image-backed M01692-4 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
HSP90AB1 Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 83.3 kDa observed | |
| Observed band | 83.3 kDa observed | |
| Gel | 8-10% | |
| Positive control | Adrenal gland | |
| Negative control | Use knockout/knockdown or orthogonal negative |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 83.3 kDa |
| ⓘ | Localization | Cytoplasm / Melanosome |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human / Mouse / Rat |
Section 1

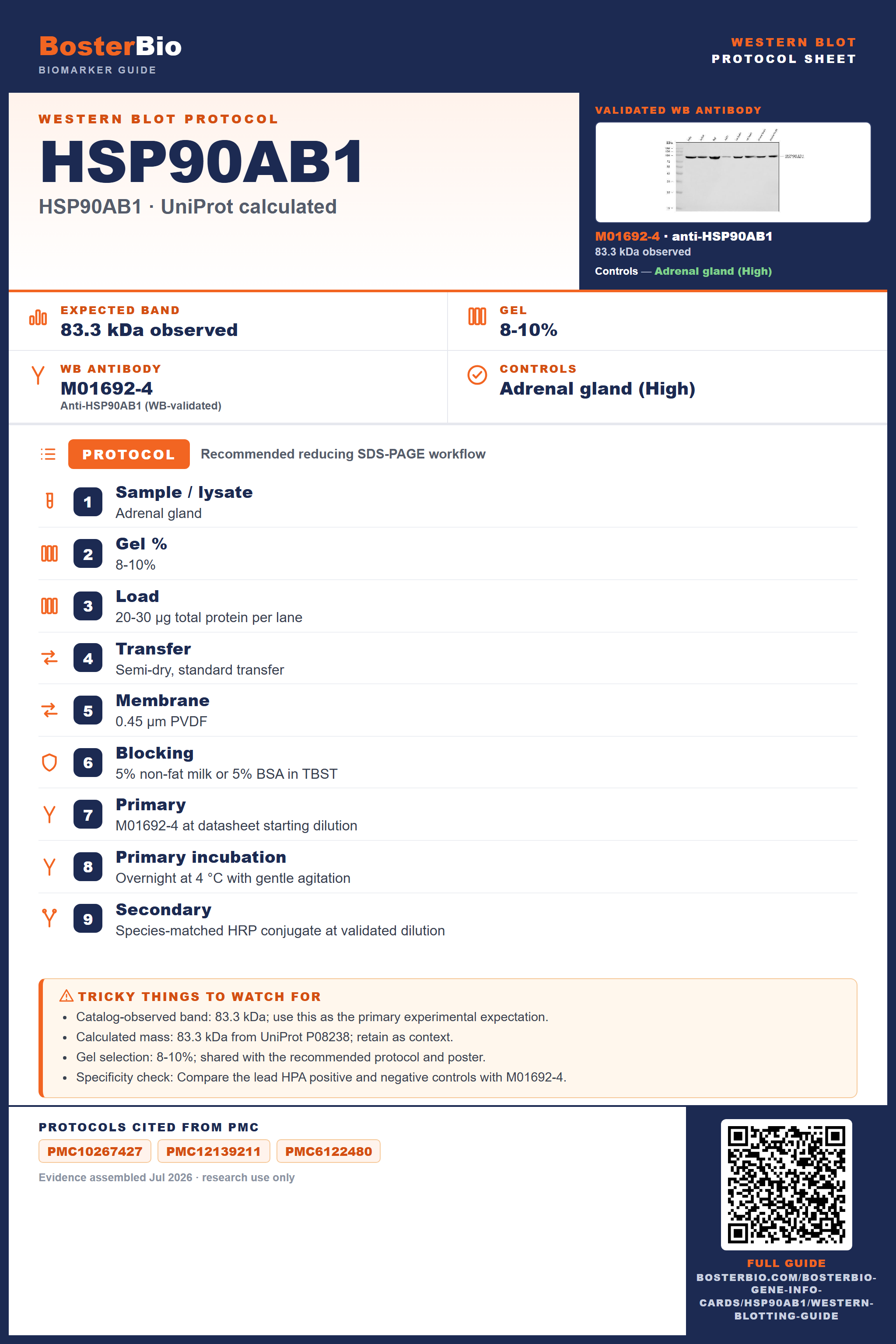

Real Curated HSP90AB1 Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Adrenal gland |
| Gel % | 8-10% |
| Load | 20-30 µg total protein per lane |
| Transfer | Semi-dry, standard transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | M01692-4 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected HSP90AB1 Western Blot Band Size?
Use the product-observed 83.3 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 83.3 kDa | Matches the authoritative product WB observation. |
| 83.3 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected HSP90AB1 appearancePlan around 83.3 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 83.3 kDa; use this as the primary experimental expectation. |
| Calculated mass | 83.3 kDa from UniProt P08238; retain as context. |
| Gel selection | 8-10%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with M01692-4. |
| Situation | Likely cause | Next action |
|---|---|---|
| 83.3 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing HSP90AB1 band
M01692-4 · HSP90AB1Observed 83.3 kDa · product-specific WB image
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for HSP90AB1 Western blot
🧪Use Adrenal gland as the first positive-control candidate and retain an orthogonal negative control.
Positive control: Adrenal gland (High)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for HSP90AB1
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Adrenal gland | Reported tissue cells | High | Protein (HPA) | HPA → |
| Cerebellum | Reported tissue cells | High | Protein (HPA) | HPA → |
| Bone marrow | Reported tissue cells | High | Protein (HPA) | HPA → |
| Bronchus | Reported tissue cells | High | Protein (HPA) | HPA → |
| Duodenum | Reported tissue cells | Low | Protein (HPA) | HPA → |
| Salivary gland | Reported tissue cells | Low | Protein (HPA) | HPA → |
Undetected expression · recommended negative controls
The available HPA profile lists no reliably-negative tissue for HSP90AB1 (a broadly-expressed target). Use a HSP90AB1 knockdown (siRNA/shRNA) or knockout lysate as the negative control and confirm signal loss versus the parental lysate.
| Tissue | Cell type | Level | Evidence | Source |
|---|
Section 3
Advanced HSP90AB1 Western Blot Tips
Deeper troubleshooting and optimisation questions for HSP90AB1, answered from its protein features.
Which band should guide the blot?
Use 83.3 kDa, the observation attached to the authoritative M01692-4 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 83.3 kDa expectation.
Which positive control should I start with?
Start with Adrenal gland, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use a target knockdown/knockout control when no HPA Not detected tissue is available.
Which gel should I use?
Use 8-10% consistently across the quick facts, protocol table, and poster.
What transfer method to use for HSP90AB1 Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should M01692-4 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
HSP90AB1 Western Blot Reagents
Human/Mouse/Rat-reactive HSP90AB1 Western blot reagents with authoritative product imagery.
Real WB data
Anti-Hsp90 beta/HSP90AB1 Antibody Picoband® (monoclonal, 7B7F5)
Cat # M01692-4
Real WB data
Anti-Hsp90 beta/HSP90AB1 Antibody Picoband®
Cat # PB9636
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
