- Table of Contents
KIT · Western blot design guide
KIT Western Blot Planning Guide
Plan a KIT Western blot around the catalog-observed 109.9 kDa band, image-backed PB9258 evidence, HPA controls, and verified protocol records.
Evidence assembled July 2026 · For research use; verify linked source records and product datasheet before use
KIT Western Blot Experimental Design Guide
Expected bands, validated protocols, controls and antibodies — the at-a-glance facts below, then the full design guide.
Must know before running
| Expected band | 109.9 kDa observed | |
| Observed band | 109.9 kDa observed | |
| Gel | 8-10% | |
| Positive control | Cerebellum | |
| Negative control | Appendix |
Important caveats
Reasons your observed band may differ from the expected size.
| ⓘ | Calculated mass | 109.9 kDa |
| ⓘ | Localization | Cell membrane / Cell membrane |
| ⓘ | Processing / PTM | Record-dependent |
| ⓘ | Reactivity | Human |
Section 1
Real Curated KIT Western Blot Protocols
Start with the molecular-weight rule, then compare verified publication-derived conditions.
| Sample / lysate | Cerebellum |
| Gel % | 8-10% |
| Load | 20-30 µg total protein per lane |
| Transfer | Wet/tank, extended transfer |
| Membrane | 0.45 µm PVDF |
| Blocking | 5% non-fat milk or 5% BSA in TBST |
| Primary | PB9258 at datasheet starting dilution |
| Primary incubation | Overnight at 4 °C with gentle agitation |
| Secondary | Species-matched HRP conjugate at validated dilution |
| Wash | 3 × 5 min in TBST |
| Detection | Chemiluminescent substrate |
| Exposure | Bracket exposures to avoid saturation |
Section 2
What Is the Expected KIT Western Blot Band Size?
Use the product-observed 109.9 kDa band as the primary planning value and retain the UniProt calculated mass as context.
| 109.9 kDa | Matches the authoritative product WB observation. |
| 109.9 kDa calculated | Use as UniProt context, not as a replacement observed band. |
| Unexpected additional signal | Do not assign identity without orthogonal positive/negative controls. |
💡Expected KIT appearancePlan around 109.9 kDa and keep the calculated mass as supporting context.
| Catalog-observed band | 109.9 kDa; use this as the primary experimental expectation. |
| Calculated mass | 109.9 kDa from UniProt P10721; retain as context. |

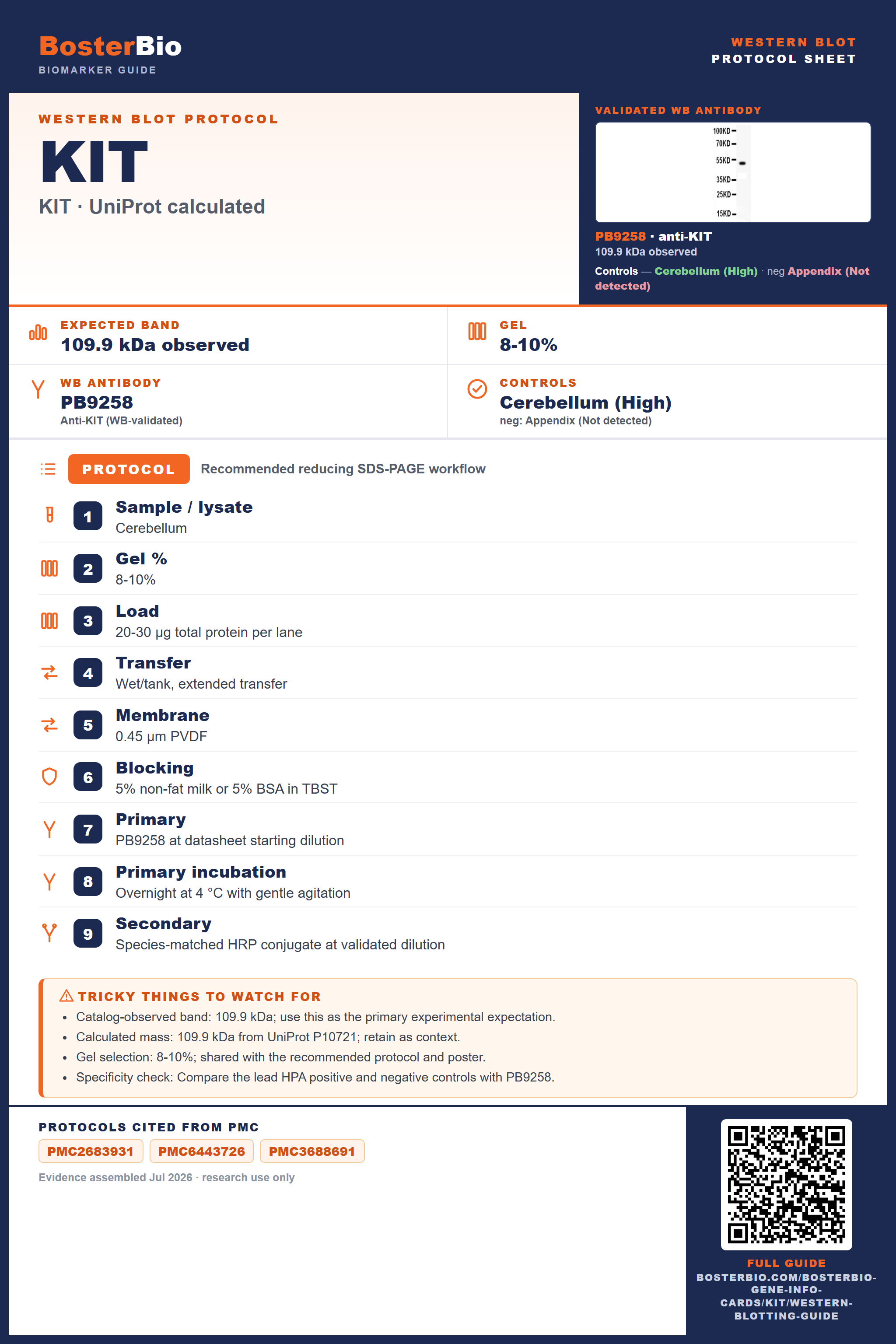

| Gel selection | 8-10%; shared with the recommended protocol and poster. |
| Specificity check | Compare the lead HPA positive and negative controls with PB9258. |
| Situation | Likely cause | Next action |
|---|---|---|
| 109.9 kDa | Matches the authoritative product WB observation. | Confirm with orthogonal controls and the linked product record. |
| Additional band | May reflect processing, modification, or non-specific signal. | Run a dilution series and compare positive/negative controls. |
| Weak signal | Target abundance or transfer may be limiting. | Verify transfer, increase positive-control abundance, and bracket exposure. |
Experiment evidence
Western blot images showing KIT band
PB9258 · KITObserved 109.9 kDa · product-specific WB image
← swipe / scroll for more images →
Real WB data behind the band-size expectations in this section.
Sample controls for KIT Western blot
🧪Use Cerebellum as the first positive-control candidate and retain an orthogonal negative control.
Positive control: Cerebellum (High)
Negative control: Appendix (Not detected)
HPA protein score determines control status; other expression data is supporting context only.
HPA tissue expression evidence for KIT
Comprehensive Human Protein Atlas IHC scoring per tissue. Rows are taken directly from the HPA tissue chart on each tissue page — click any row's HPA link to view the source.
Positive expression · recommended positive controls
| Tissue | Cell type | Level | Evidence | Source |
|---|---|---|---|---|
| Cerebellum | Reported tissue cells | High | Protein (HPA) | HPA → |
| Ovary | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Breast | Reported tissue cells | Medium | Protein (HPA) | HPA → |
| Lung | Reported tissue cells | Medium | Protein (HPA) | HPA → |
Section 3
Advanced KIT Western Blot Tips
Deeper troubleshooting and optimisation questions for KIT, answered from its protein features.
Which band should guide the blot?
Use 109.9 kDa, the observation attached to the authoritative PB9258 WB record.
How should calculated mass be interpreted?
Treat the UniProt calculated mass as context; it does not replace the catalog-observed 109.9 kDa expectation.
Which positive control should I start with?
Start with Cerebellum, the lead HPA protein-expression candidate.
Which negative control is defensible?
Use Appendix as an orthogonal HPA Not detected candidate.
Which gel should I use?
Use 8-10% consistently across the quick facts, protocol table, and poster.
What transfer method to use for KIT Western blot?
Use the transfer method in the recommended protocol and verify transfer before blocking.
How should PB9258 be started?
Start at the linked datasheet condition and run a three-point primary-antibody dilution test.
Which publication-derived protocols can I compare?
No verified publication protocol was supplied; use only the deterministic recommended protocol.
Boster reagents
KIT Western Blot Reagents
Human-reactive KIT Western blot reagents with authoritative product imagery.
Real WB data
Anti-c-Kit Antibody Picoband®
Cat # PB9258
Only image-backed, WB-validated Human/Mouse/Rat recommendations from the prepared catalog evidence are shown.
Source: prepared picoband-wb product evidence; each card retains its own SKU, URL, observed band, and authoritative WB image.
